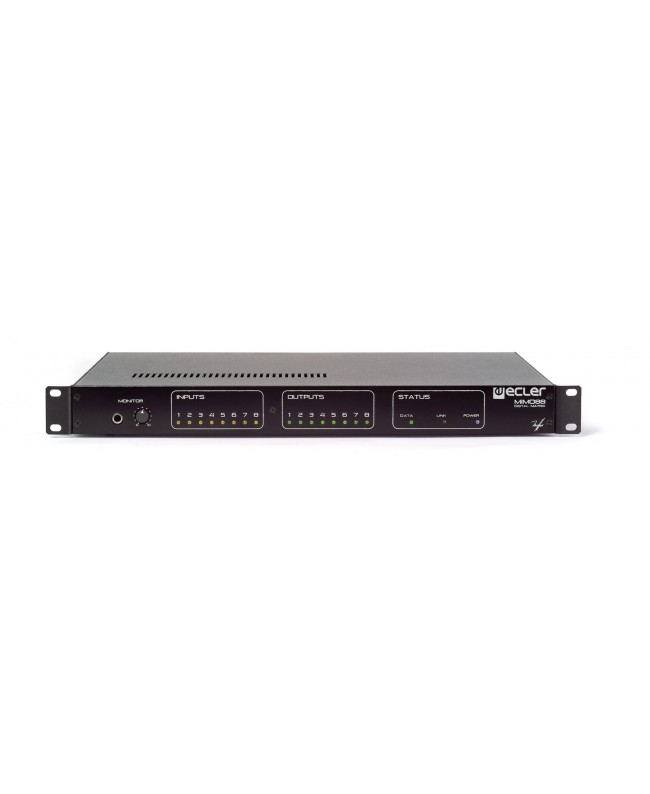

Ecler MIMO88

Audio matrix with DSP. 8 balanced mic/line inputs with +42V phantom power (enableable on individual inputs), 8 balanced outputs, 2 monitor outputs. Two MIMO88 units can be linked to create a 16x16 audio matrix. 8x GPIs and 8x GPOs for event triggering and management. Parametric EQ and filters for each channel, delay, compressor/limiter, frequency shifter, paging, ducking, priority. Loading the Conference firmware will unlock certain features, such as the automatic mixer and feedback killer, at the expense of some processing capabilities (no input delay, 4 independent outputs, 4 PEQ outputs, no pager, etc.; see manual). Fully programmable with EclerNET software. Remote control via UCP (User Control Panels-when a UCP server is present in the system), WPNETTOUCH touchscreen panel, TP-NET commands for integration with third-party control systems, and RS-232. Compatible with WPNETTOUCH, eMPAGE, PAGENETDN, and WPa panels.

Dimensions: 482.6 x 44 (1U) x 266.5 mm; weight: 3.5 kg.
