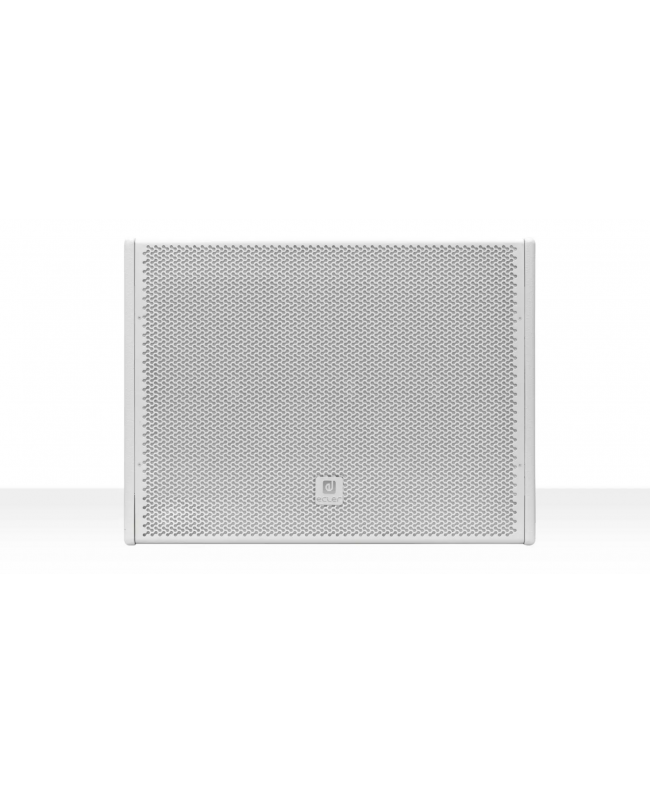

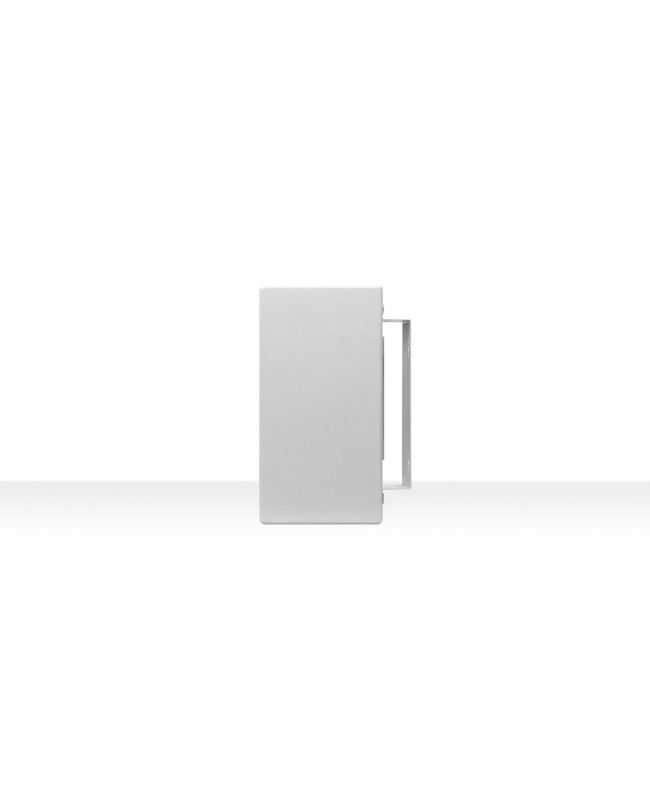

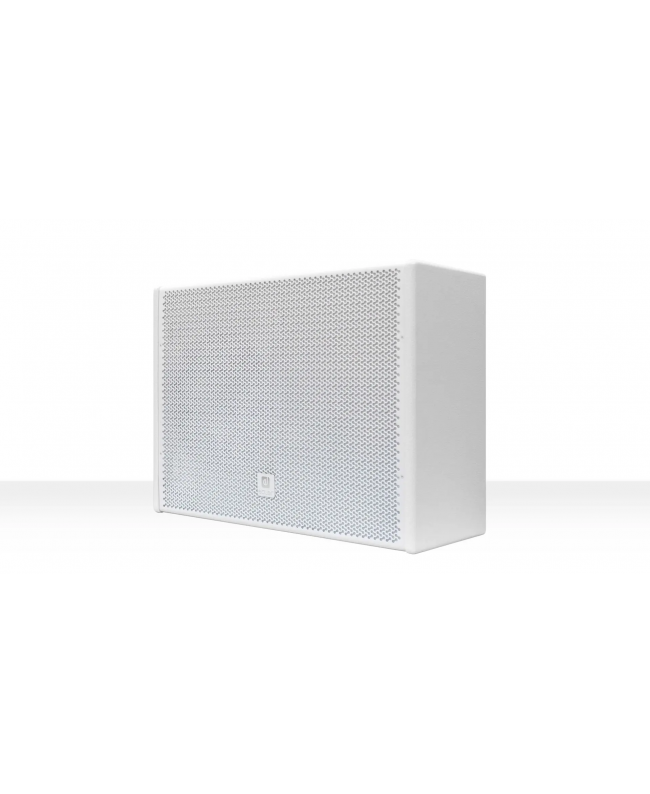

Ecler ARQIS SB10iW Installation Subwoofers

Ecler ARQIS SB10iW

€598.00
Tax included

Wooden subwoofer featuring a 10" LF driver

Qty

In Stock

Delivery

Do You want Your order by Thursday, 29/01/2026? Order within 2 hours and 45 minutes

Free shipping

Compare

wishlist

Ecler ARQIS SB10iW



ARQISSB10i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring a 10" LF driver (150 WRMS @ 8Ω ) and internal LPF with 2 frequency settings. 12 x M8 rigging points and wall bracket included. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Subwoofer, 1-way architectural loudspeaker
  • 150 WRMS @ 8Ω
  • 1 x 10" low frequency woofer

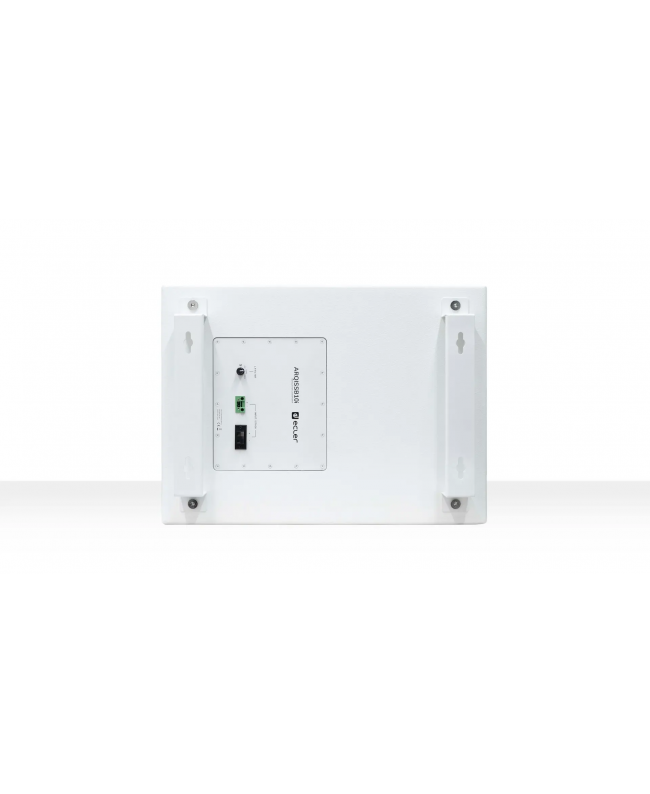

  • Euroblock connector and spring loaded input terminals
  • Wall bracket included
  • 12 x M8 cabinet flying points
  • Available in white (RAL9003) and black (RAL 9005) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

Specs

SYSTEM

  • Effective Freq. Range 54 Hz-4 kHz (-10dB)
  • Power handling 150 W RMS / 600 W Peak
  • Sensitivity 92 dB (1W/1m)
  • Maximum SPL 114 dB continuous / 120 dB peak
  • Recommended amplifier power 300 W RMS

TRANSDUCERS

  • Ways 1-way subwoofer
  • Driver LF 10" woofer
  • Nominal impedance 8Ω

FILTERS

  • Low-Pass filter selector
  • Internal LPF with 2 frequency settings
  • Recommended High-Pass protection filter
  • 60 Hz with minimum 12 dB / octave filter

PHYSICAL

  • Connection type 1 x Euroblock & 1 x Terminal
  • Installation options Surface, wall, desktop
  • Environmental IP31
  • Enclosure material MDF
  • Grille material Steel
  • Grille fixing system Screw fixation
  • Pan and tilt wall-mount TBC
  • Flying points 12 x M8
  • Operating temperature Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories
  • 4 x rubber feet, 4 x screws, 1 wall bracket
  • Finished colour White (RAL 9003) or Black (RAL 9005)
  • Dimensions 600 x 442 x 228 mm / 23.62 x 17.40 x 8.98 in. (WxHxD)
  • Weight 16.5 kg / 36.37 lb

CARQISSB10IW

Data sheet

Woofer inch
10"
