Ecler ARQIS SB12iBK Installation Subwoofers
  • -2%

Ecler ARQIS SB12iBK

€957.00
€935.00 -2%
Tax included
Lowest price within the last 30 days: €935.00

Wooden subwoofer featuring a 12" LF driver

Out of Stock

Free shipping

Compare

wishlist

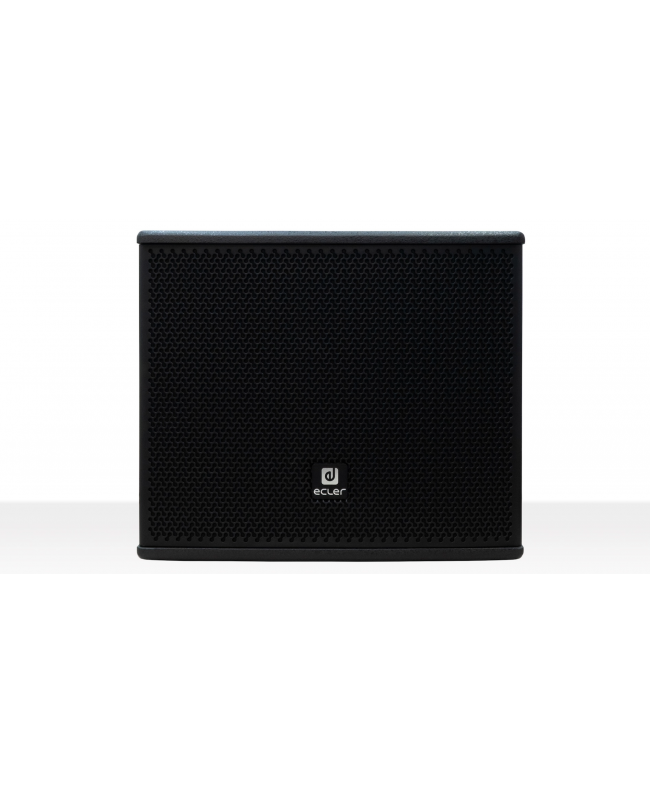

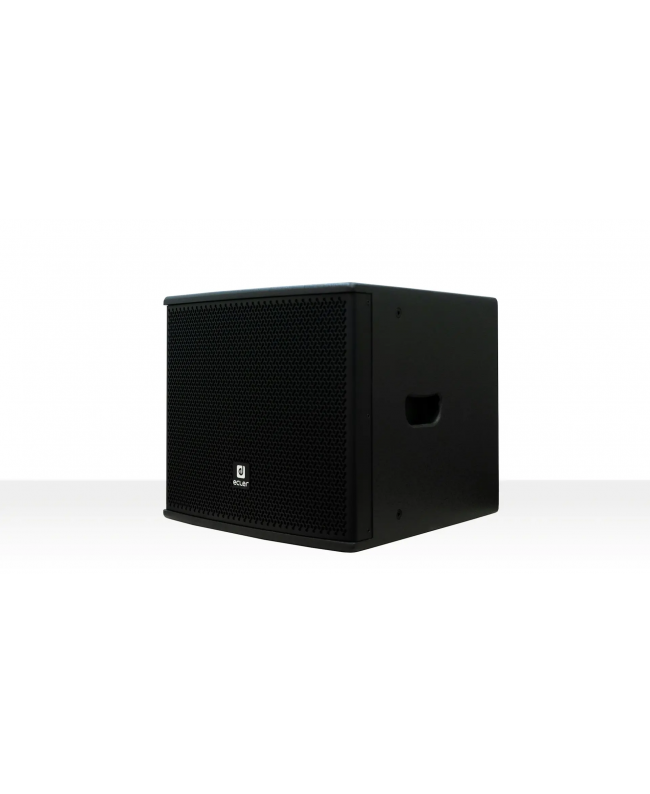

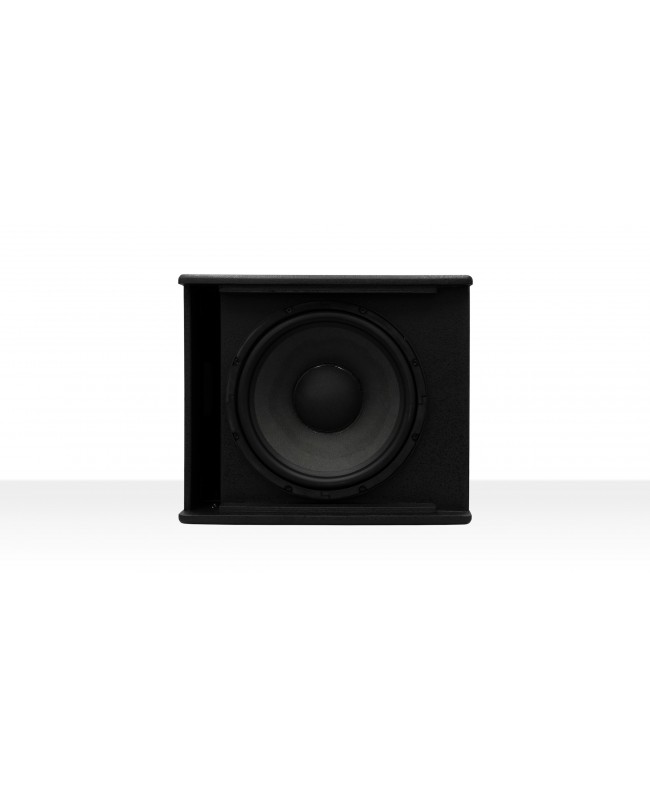

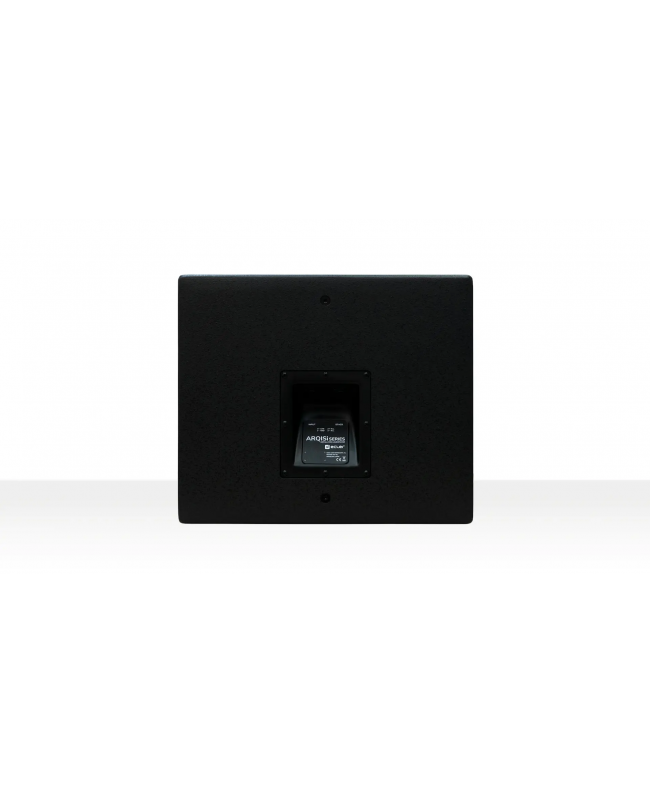

Ecler ARQIS SB12iBK



ARQISSB12i is a wooden subwoofer reinforcement cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 300 WRMS @ 8Ω and a 12" LF driver. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Subwoofer, 1-way architectural loudspeaker
  • 300 WRMS @ 8Ω
  • 1 x 12" low frequency woofer
  • Double INPUT/STACK connector, Speakon© type
  • 12 x M8 cabinet flying points
  • Available in black (RAL 9005) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

Specs

SYSTEM

  • Effective Freq. Range 44 Hz-4 kHz
  • Power handling 300 W RMS/1200 W Peak
  • Sensitivity 95 dB (1W/1m)
  • Maximum SPL 120 dB Continuous / 126 dB peak
  • Recommended amplifier power 600 W RMS

TRANSDUCERS

  • Ways 1-way subwoofer
  • Driver LF 12" woofer
  • Nominal impedance 8Ω

FILTERS

  • Low-Pass filter selector TBC
  • Recommended High-Pass protection filter 45 Hz with minimum 12 dB / octave filter

PHYSICAL

  • Connection type 2x SPEAKON
  • Installation options: Surface, wall, desktop
  • Environmental IP31
  • Enclosure material Plywooden
  • Grille material Steel
  • Grille fixing system Screw fixation
  • Flying points 12 x M8
  • Operating temperature Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories 4 x rubber feet, 4 x screws
  • Finished colour Black (RAL 9005)
  • Dimensions 440 x 375 x 440 mm / 17.32 x 14.76 x 17.32 in. (WxHxD)
  • Weight 19.4 kg / 42.76 lb

CARQISSB12IB
