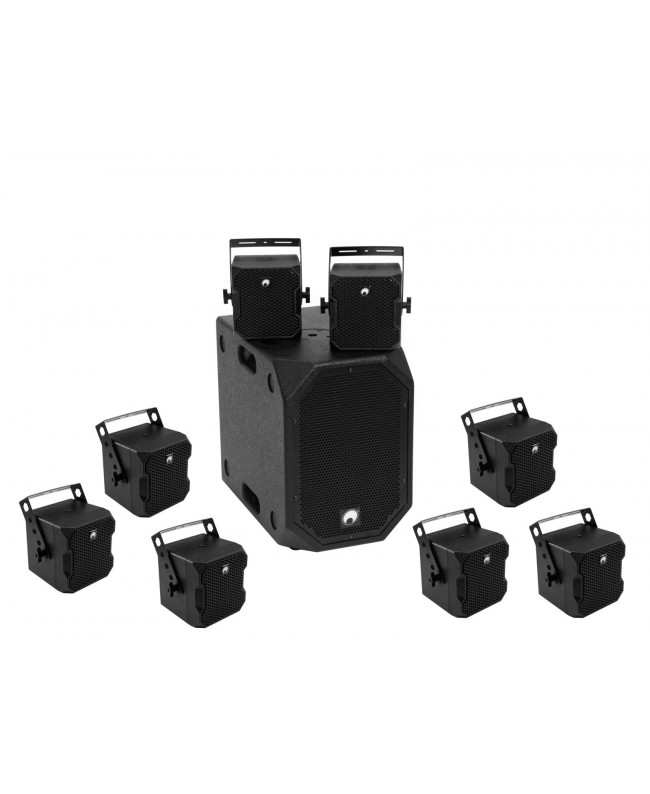

Omnitronic Set BOB-10A bk + 8x BOB-4 bk

Scope of delivery

1 x OMNITRONIC BOB-10A Subwoofer active black

• 1 x bass
• 1 x user manual
• 1 x power cord
• 2 x speaker cable
• 4 x foot
• 4 x screw
• 1 x declaration of conformity

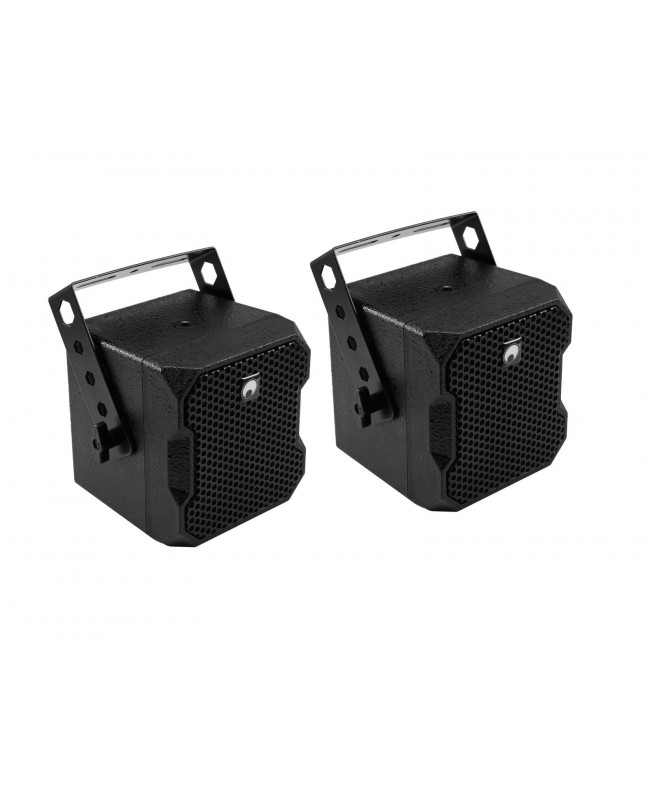

4 x OMNITRONIC BOB-4 Top 16 Ohm black 2x

• 2 x top
• 4 x knurled screw
• 2 x mounting bracket
• 2 x plug (male)

• Weight: 32.95 kg
• Power supply: 230 V AC, 50 Hz
• Power consumption: 1060 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• Power: Rated: 1x 300W RMS LF, Rated: 2x 300W RMS HF
• Frequency range: 45 - 250 Hz
• Sensitivity: 100 dB
• Max. SPL: 125 dB
• DSP: Digital signal processor
• DSP presets: FLAT; DJ; LIVE; SPEECH
• Cooling: Passive convection cooling
• Control: Bluetooth
• Bluetooth device name: Omnitronic BOB
• Range: Bluetooth: range up to 10m in buildings
• Attachment system: 2x M20 thread
• Circuitry: Class D
• Control elements: Phase reversal switch
• Controls: Softstart; short-circuit; limiter; Overvoltage; overheat; limiter
• Status LED: Signal, power, limit, fault, DSP presets
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: speaker via 2 x speaker built-in socket (F), Output: line via 2 x 3-pin XLR
• Input channels: 1 x stereo via combination socket or RCA or Bluetooth, channel control via rotary dial
• Speaker: 1 x woofer 10, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 4 pc/pcs
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating
• Dimensions: Width: 30 cm, Depth: 47 cm, Height: 43 cm
• Weight: 16.95 kg
• Cable length: 3 m
• Power: Program: 150W, Rated: 75W RMS
• Frequency range: 150 - 16000 Hz
• Sensitivity: 90 dB (1W/1m)
• Max. SPL: 109 dB
• Dispersion angle: 120° x 120°
• Impedance: 16 ohms
• Attachment system: Mounting bracket
• Connections: Input: speaker via 1 x screw plug-in terminal, Input: speaker via 1 x speaker built-in socket (F)
• Speaker: 1 x compression tweeter highs 4, Basket material: steel, Conematerial: cardboard/paper, 1 x voice coil compression tweeter highs 1
• Material: ABS Acrylonitrile butadiene styrene
• Color: Black, textured coating, painted
• Dimensions: Width: 15 cm, Depth: 16 cm, Height: 15.8 cm
• Weight: 4.00 kg
