AUDIX M60P

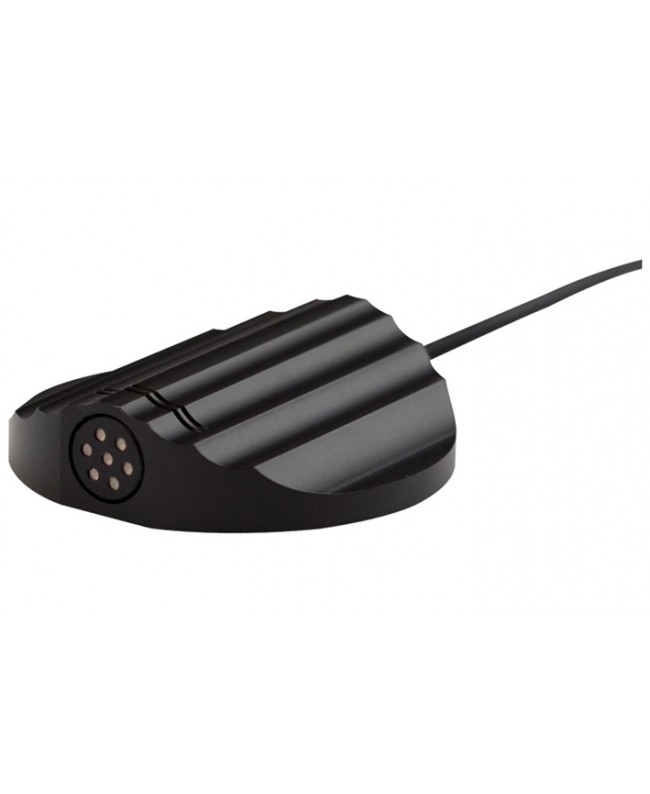

Designed, machined, assembled and tested by Audix in the U.S.A., the M60 is a miniaturized condenser microphone with fully integrated electronics and limited from RF interference typically caused by cell phones and GSM devices.

Primary applications for the M60 include podiums, corporate boardrooms, meetings and video conferencing where aesthetics and audio quality are paramount. The cardioid microphone element by design, However a hemicardioid polar pattern is produced when associated with a flat surface such as a table, floor, wall or podium.

The impressive design of the M60 brass housing obtained through a complex process using a computerized machining center. The bottom of the housing treated with a shock-absorbing material for damping and has two threaded holes that allow the M60 condenser microphone to be permanently fixed in place if desired.

A high-quality 25 shielded microphone cable connects directly to the internal circuitry of the M60, with the ability to exit the housing at 180 or 90 degrees, depending on whether the cable is routed through a perforated surface. In addition, two types of connectors are available: XLRm or Phoenix.

Available in satin nickel, black or white finish, the M60 operates on phantom power from 18 to 52 V.

• Applications
