Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 6 input cards + 4 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 3 input cards + 4 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 4 input cards + 2 output cards on board, 8K ready
Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 2 input cards + 1 output card on board, 8K ready
Variable materials: supports static and dynamic materials, including images, audio, video, scrolling subtitles, PDFs, Web pages, live video, phone calls, pop-up images, etc.
Flexible scheduling: supports free programs and district playback of multiple materials. Supports variable playback modes: playback by day, playback by week, loop playback, custom playback, etc.
Centralized management: remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown, timed brightness/volume adjustment, and screenshot preview. Remote program release and local program update (USB).
Organization authorization: 5-level organization is available for management of materials, programs, terminals and users. Supports creation of custom users, assignment of permissions to users by user level, and authorization templates. Multiple security safeguards: 3-level control of materials, programs and schedules to prevent erroneous releases. Data encryption in storage and transmission to prevent data tampering. Without default password, users can activate and set initial password to ensure password security.

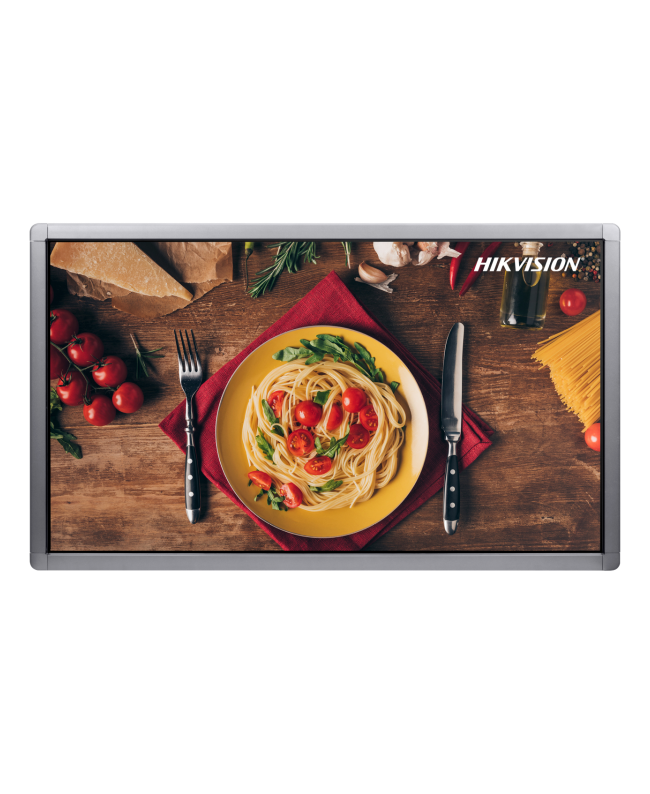

Screen Angle Of View: 178°(W)/178°(V)
Contrast Ratio: 1200:1
Screen Size: 31.5 inches
Active Viewing Area: 698.4(H) x 392.85(V) mm
LED Pixel Pitch: 0.12125(H) x 0.36375(V) mm
Resolution: 1920x1080
Brightness: 250 cd/m².350 cd/m²
Color Depth: 8bit, 16.7M
Response Time: 8ms
Color Gamut: 75%
NTSC Reliability: 7x24H
Refresh Rate: 60Hz
Integrated System Operating System: Android 6.0.1
Processor: Cortex-A17, 4 cores, 1.6 GHz
Memory: 2GB
Integrated Storage Space: 8GB EMMC, 32GB TF card
GB Touch Type: Infrared touchscreen
Glass: 3mm tempered glass, min. transmittance 88%
Point Of Contact: 10-point multitouch Video Input Interface AND
Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~80% relative humidity
Storage Temperature: -20 °C to 60 °C (-4 °F to 104 °F)
Storage Humidity: 5%~90% relative humidity
Product Dimensions: 764.46(W) x 459.06(H) x 59.8(D) mm (30.10 x 18.07 x 2.35 inches) (without wall-mounted display board) 764.46(W) x 459.06(H) x 75.1(D) mm (30.10 x 18.07 x 2.96 inches) (with wall-mounted display board)
Package Dimensions: 904(W) x 643(H) x 210(D) mm (35.59 x 25.31 x 8.27 in.)
Net Weight: 15.5 kg (34.17 lbs.)
Gross Weight: 16.5 kg (36.38 lbs.)
Accessories: Power cord, user manual,
LOGO Internal Function Speaker: 2 x built-in speakers, 8 Ω 5 W
High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.
UHD+ 2 x 1 HDMI processor designed for advanced scaling, rotation and warping of 4K sources, ultra-low latency, PiP flexibility, full control via OSD, RS-232, Telnet and PC software
