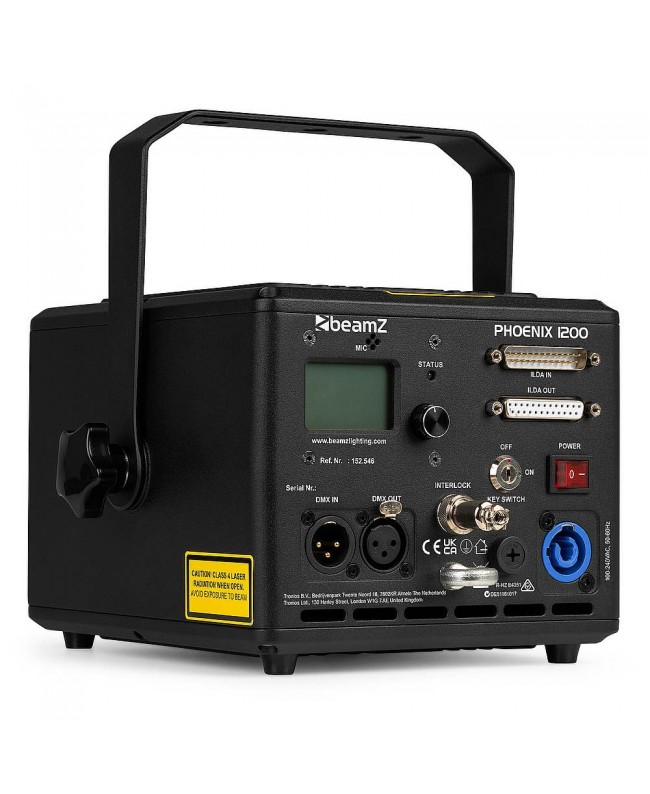

beamZ Phoenix 1200 Pure Diode Laser RGB

Red (300 mW), green (300 mW) and blue (600 mW) laser modules.

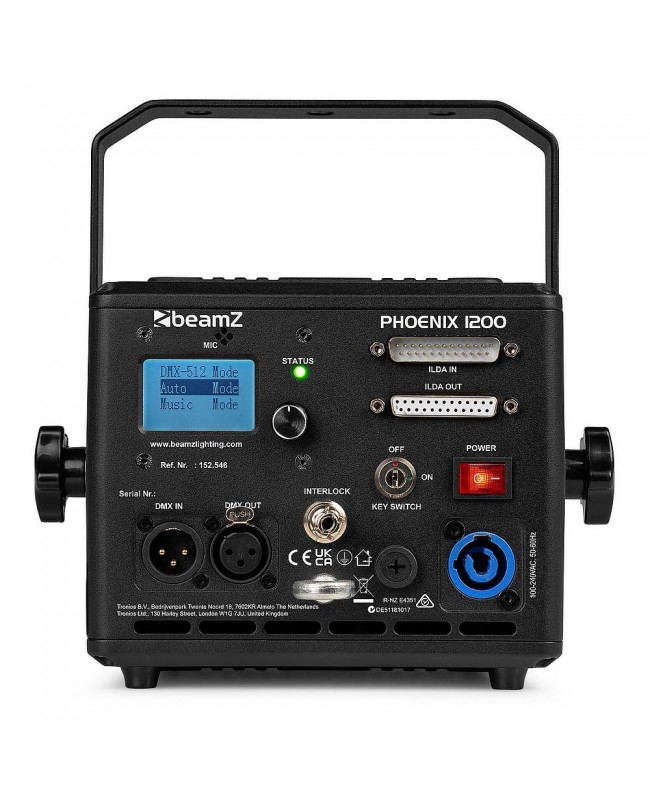

The beamZ Phoenix Laser series offers powerful animation lasers with over a hundred built-in effects and patterns. These lasers feature analog modulation, which allows the display of up to 16.7 million shades of color and the ability to attenuate the laser beam output, for the safety of the audience. The rear panel includes a DMX input/output with 3-pin XLR connectors and an ILDA input/output connection, the standard for connecting laser displays to control devices via an ILDA cable. When using a DMX controller, Phoenix lasers provide 10 or 34 DMX channels. In addition, these lasers can operate in sound-activated mode, thanks to the built-in microphone. The package includes 2 key switch keys, a remote interlock bypass, and a remote control.

• 1 W RGB color laser projector
• Semiconductor laser diode
• 25K high-speed optical scanner system
• Scanning angle: 40°
• Beam divergence: 1.0 mrad (full angle)
• DMX and stand-alone modes
• Sound activation with adjustable sensitivity
• Automatic mode
• Preprogrammed patterns and animations
• DMX input/output via 3-pin XLR
• PC/laptop controllable via ILDA (DB25)
• Laser cover plate on front
• Control panel with LCD display with function setting knob
• Incl. 2 keys and interlock bypass
• Incl. remote control
