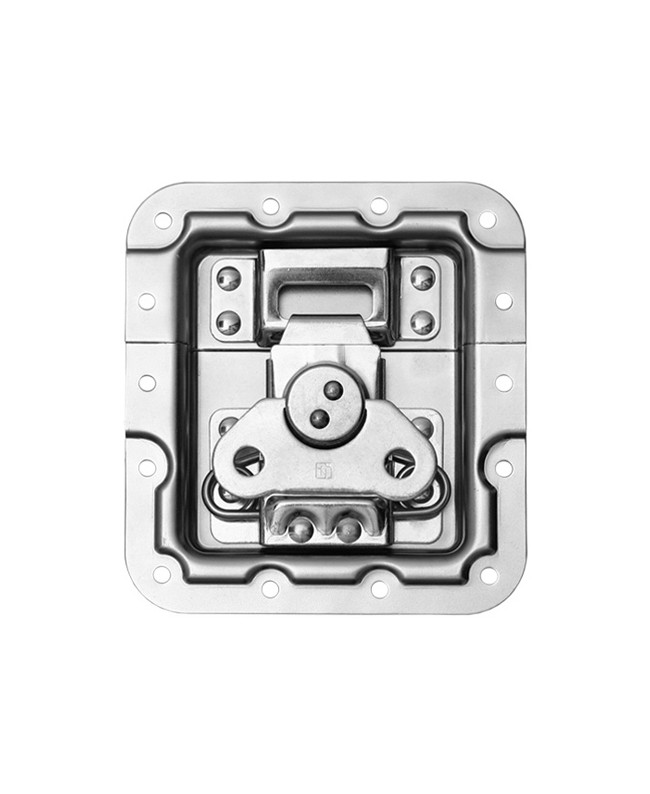

Adam Hall Hardware 172532


€30.50
Tax included

Butterfly Latch V3 short cranked 14 mm deep with Rivet Protection


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 28/04/2026? Order within 1 hours and 58 minutes



wishlist

Adam Hall Hardware 172532



The same Large Butterfly V3 with push-down function as in the 172511 but in a shorter dish. The entire mechanism is identical thereby having the same strength and loading capabilities. The dish is shorter giving a chunky look and easier use in smaller cases and flatter lids.

Our V3, V4 and V5 Butterflies have a patented 'push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

  • Material: Steel
  • Coating: Galvanised
  • Push Flat feature: Yes
  • Colour: Silver
  • Cranking: Cranked
  • Size: S
  • Diameter of mounting holes: 5.1 mm
  • Width: 127 mm
  • Height: 138.5 mm
  • Depth: 22.1 mm
  • Installation width: 90 mm
  • Installation height: 102.5 mm
  • Installation depth: 14 mm
  • Weight: 445 g

172532

Data sheet

Color
Silver
Giorni di elaborazione
4
