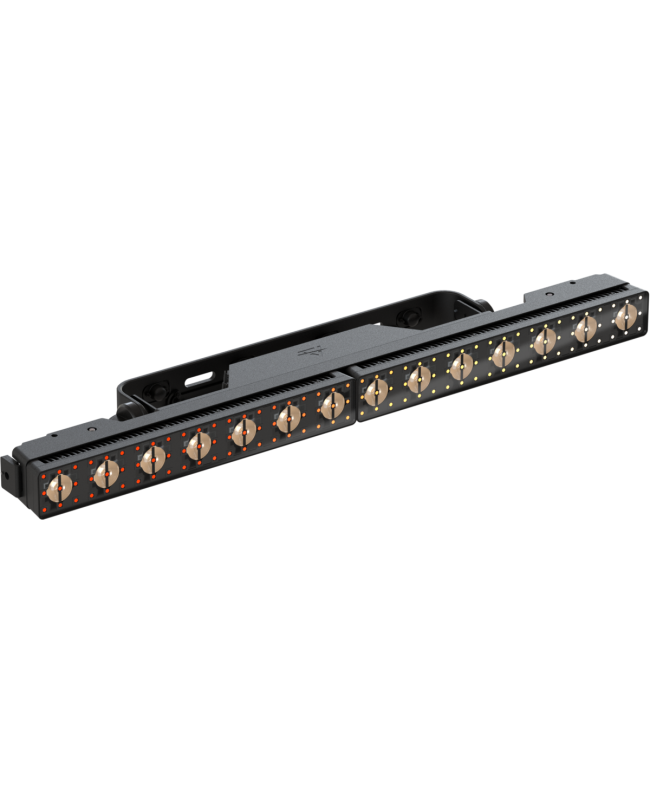

PROLIGHTS HaluStrip Duo LED BAR

PROLIGHTS HaluStrip Duo


€1,407.00
Tax included

200W: 14x2700K 4th Beam + 3x42 RGBWW Pixels


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 20/01/2026? Order within 9 hours and 28 minutes

Free shipping


wishlist

PROLIGHTS HaluStrip Duo







HaluStrip DUO is a dual layer LED bar that smoothly integrates lighting and video functions within a modular design. This dual-source unit combines powerful long-range white light beams with high brightness for video and strobe effects, offering control of every single pixel. This integration enables versatile and dynamic lighting setups that are ideal for a wide range of uses on professional stages and in television studios. Each HaluStrip DUO e module includes two distinct levels of light sources: 126 pixels (3x42) RGB+WW with 120° projection angle, and 14 pixels (1x14) Warm White at 4°. The total power consumption is 170W, which can be divided between one or both groups of LEDs as needed. In addition, each source is individually controllable, allowing video content to be played on one or both layers, providing exceptional brightness and unparalleled colors. The modular structure of HaluStrip DUO, similar to traditional LED panels, allows multiple units to be attached in series while maintaining a constant pitch between all pixels in both layers. The frame is designed for maximum versatility, supporting flat or curved configurations, suspended or ground installations. HaluStrip DUO also stands out as an all-weather solution. With IP65 certification, it ensures reliability and durability in both indoor and outdoor environments, protecting components from water and dust. On the connectivity front, HaluStrip DUO integrates power supply and user interface, supporting various lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering great flexibility in any application scenario.

  • 200W: 14x2700K 4th Beam + 3x42 RGBWW Pixels
  • Equipped with removable feet for floor mounting
  • Modular design for flat, suspended or ground configurations Compatible with DMX, RDM, sACN, Art-Net and RDMnet Optional optics available for LED beam - 12°, 24°
  • Light source: 1 X 14 4° 2700K LEDs + 3 x 42 120° RGB+WW LEDs
  • Average source lifetime: > 30,000 H
  • Projection angle: (Beams) 4.9°; (Pixels) 111.5°
  • Viewing angle: (Beams) 7.4°; (Pixels) 151.3°
  • Additional optics: Available optional optics for beam LEDs 12°, 24°
  • Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
  • Color mixing: (Beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Macros: Macro pixels with built-in speed and intensity control
  • Control resolution: Dimmer, 16-bit colors
  • Pixel pattern: Pre-set, static and dynamic pixel effects
  • Effects generator: Foreground/background color, index, speed, direction adjustable
  • Static mode: Static selection of dimmer, color and color temperature
  • Bracket system: Spigot for tripod use and truss rigging bracket
  • On-board hardware: Integrated mechanics for modular assembly of multiple fixtures
  • Body: IP65 weatherproof magnesium alloy construction
  • Color: Black
  • Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX (optional)
  • DMX channels: From 12 channels to 518channel
  • Pixel control: Pixel2pixel control
  • Wireless control: Optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote fixture control and settings
  • Display: Graphic User Interface
  • Firmware upgrade: Via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX Workshop)
  • Master/Slave: For control of multiple units connected in a chain
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is without power.
  • Dimmer: 0 ~ 100% Linear, electronic
  • Dimmer curves: Up to 6 independently selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / + 113° F) Ta
  • LED control: flicker-free frequency with adjustable PWM
  • PWM selectable: 600 ~ 25,000 Hz
  • Power supply: 100-240V - 50/60Hz
  • Maximum power consumption: 170W
  • Standby power: 7.8W
  • Output (at 230 V): 14 Units connected in series
  • Output (at 120 V): 7 Units connected in series
  • Power factor: > 0.94
  • IP rating: IP65 for temporary, non-fixed outdoor installation
  • Cooling: Fanless structure designed for passive dissipation by natural convection
  • Suspension and fixing: Spigot for tripod use, bracket for truss rigging and hardware for connecting multiple units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerKon waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000 X 71 x 183 mm / 39.37''x2.8''x7.2''
  • Weight: 8kg / 17.64lbs
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
  • 1 X 1.5 meters 3G1.5mmq power cable (BARE END: SEETRONIC IP65 power connector)

HALUSTRIPDUO

Data sheet

Miscellaneous
Suitable for outdoor use
