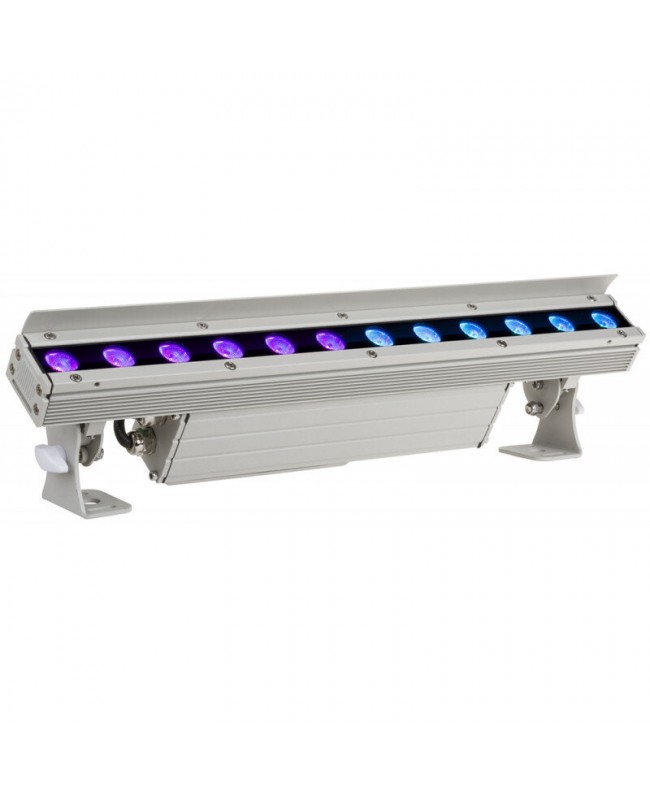

Briteq LDP-COLORBAR 12FC

IP-rated RGBW LED bar, designed to illuminate cycloramas and for use as a wall washer.

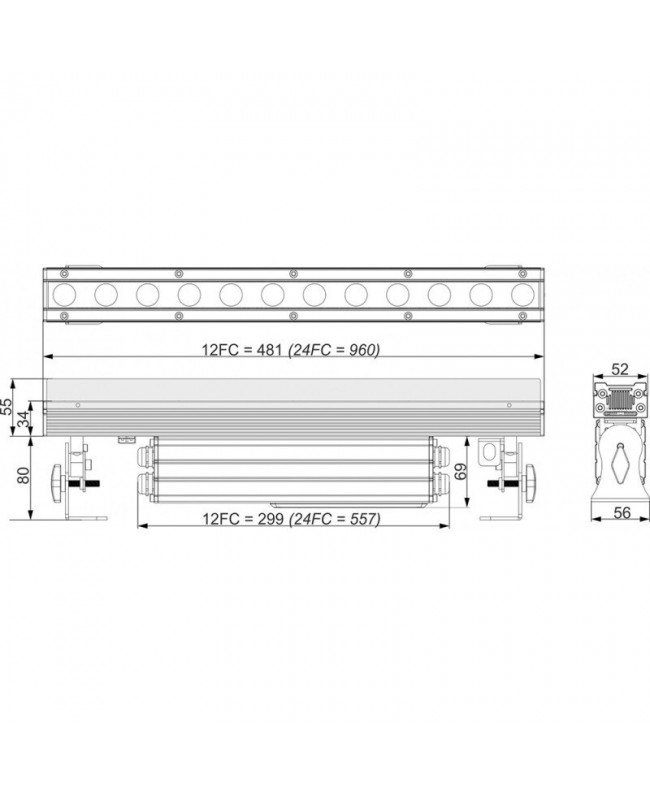

The compact 48 cm structure ensures uniform illumination of large surfaces, even from close distances.

The light source consists of 12 4W RGBW LEDs, divided into two independent sections, with high-quality optics that ensure flawless color mixing. The dimmer offers four selectable curves (linear, square, inverse square, and S-curve), while natural convection cooling ensures completely silent operation.

Comprehensive DMX control is available, with modes for 3 to 10 channels, including both sections. In the event of signal loss, you can choose between blackout and freeze. Stand-alone and Master/Slave modes are also available, with static colors, fades, and integrated automatic sequences.

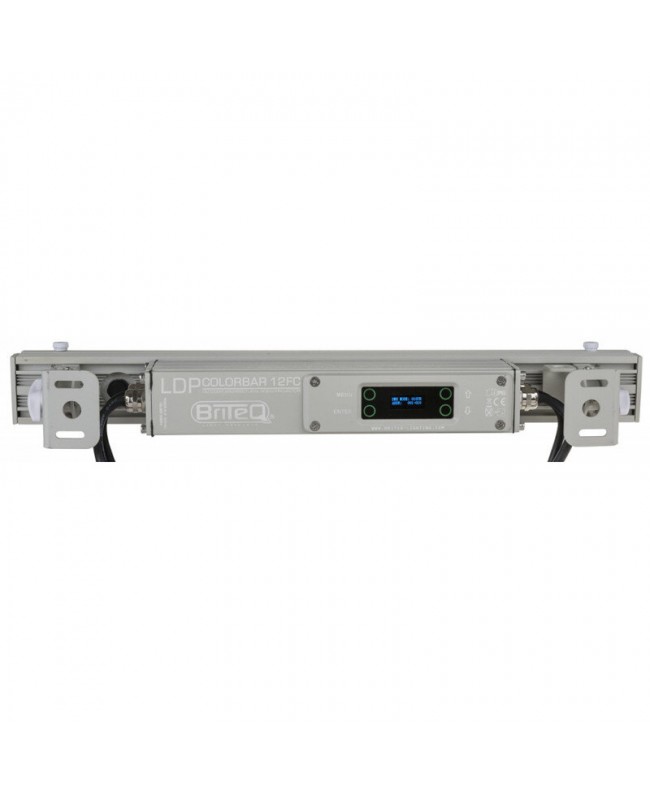

The fixture offers high light output, perfect color mixing, and internal automatic fade programs. The power supply and DMX/LED drivers are integrated into an elegant extruded aluminum body, featuring excellent thermal management. Configuration is via an OLED display with backlit touch keys. IEC-C13/C14 and 3-pin XLR IN/OUT connectors are provided, allowing for the connection of up to 32 units, as well as waterproof DMX connectors with dedicated XLR adapters. A built-in GORE valve prevents humidity and condensation from forming inside the fixture.

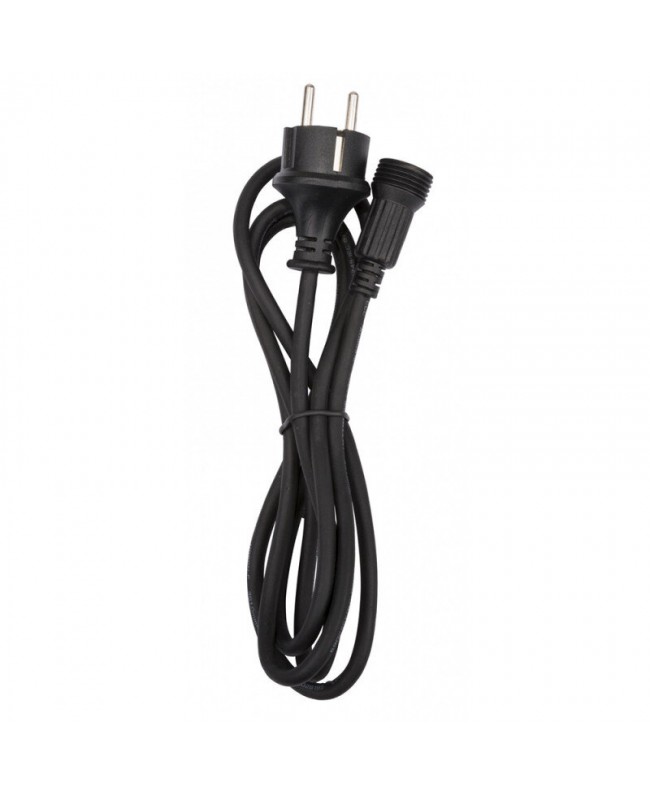

A barndoor to shield the LED sources is included, along with a discreetly designed adjustable bracket. Optional cables are available for waterproof cascade connection (LDP-Powercable and Signal Link Cable).

Theatre stages. TV studios. Architectural installations. Lounges and clubs. Hotels. Shops. Showrooms. Trade fair stands. Corporate events. Gardens. Service. Rental companies

• Areas of use
