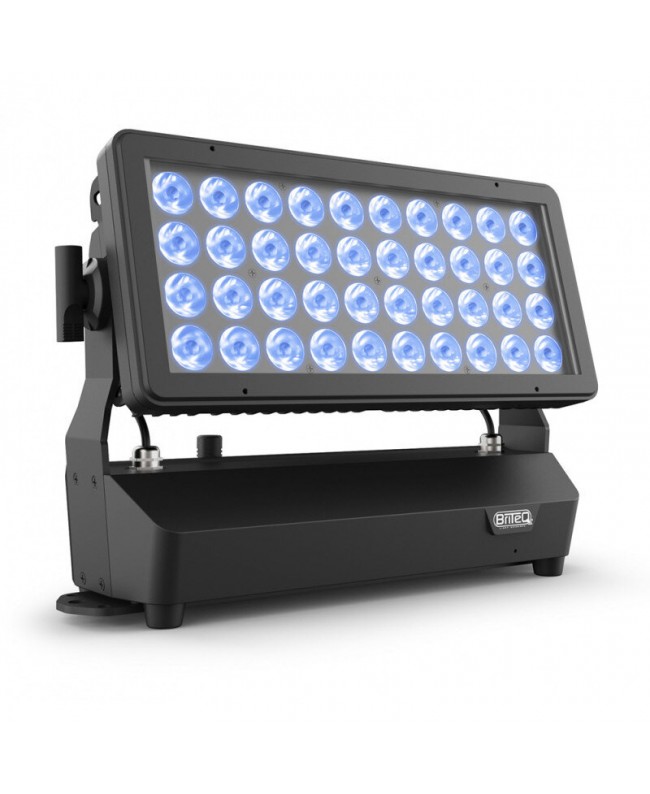

Briteq BT-CHROMA 800

Powerful IP65 indoor and outdoor LED fixture equipped with 40 RGBL LEDs of 20 W each for the entertainment industry, rental or fixed installations. The 40 LEDs ensure a very high light output with perfect color mixing and excellent white light. The projector can be used with extremely functional wiring options according to the applications:

Rental / entertainment applications: comes standard with 3-pin XLR and IP65 IN/OUT lockable power connector for easy daisy chaining

Fixed installations: with an optional set called "BT-CHROMA 800 - FIX install set" (POWER and DMX IN/OUT modules with stainless steel cable glands + 2 stainless steel bolts for Tilt positioning) the projector can be easily transformed for permanent outdoor installation

Main features:

• RGB, RGBL and HSI color control with 8 & 16 bit resolution
• Standard equipped with 15° optics and magnetic aluminum filter holder frame with frost filter
• Various operating modes with combinations of 1, 2, 5 or 10 pixels for nice special effects
• Full DMX control with RDM support: from simple 3-channel control to sophisticated 81-channel control
• Built-in antenna and wireless solution DMX G4/G4S receiver (@ 2.4 GHz) for easy setup and use
• Stand-alone operation with static color and white presets, color fade and over 20 multi-pixel programs
• Several optional accessories for perfect results:
• Barndoor: Easily adjust the beam on stage
• Anti-glare shield : the static beam limiter hides the LEDs and eliminates unwanted stray light
• Different beam formers: 60° - 60°x 10° - 10°x 60° - 40°x 1° - 1°x 40° to obtain the desired beam
• Empty magnetic filter frame: to easily install the different beam shapers
• Elegant extruded aluminum case finished with tempered glass cover
• Solid and multifunctional base:
• Installation on the truss: easy mounting on the truss using 1 or 2 of our optional Briteq "OMEGA BRACKET SMALL"
• Fixed installation: easy and secure mounting on any surface, using standard anchor screws
• Optimal thermal management for long life and easy maintenance
• Very quiet operation, thanks to temperature-controlled waterproof cooling fans
• Alphanumeric OLED display and waterproof touch keys to select different configuration menu options
• Adaptable lamp behavior thanks to stepless dimmer speed control
• Four dimmer curves: linear, square, inverse square, S-curve
• In the event of a DMX failure, you can choose between blackout, freeze mode and automatic stand-alone mode
• Lock function to prevent unwanted changes to settings
• Equipped with a special GORE vent to prevent moisture and condensation inside the projector.
