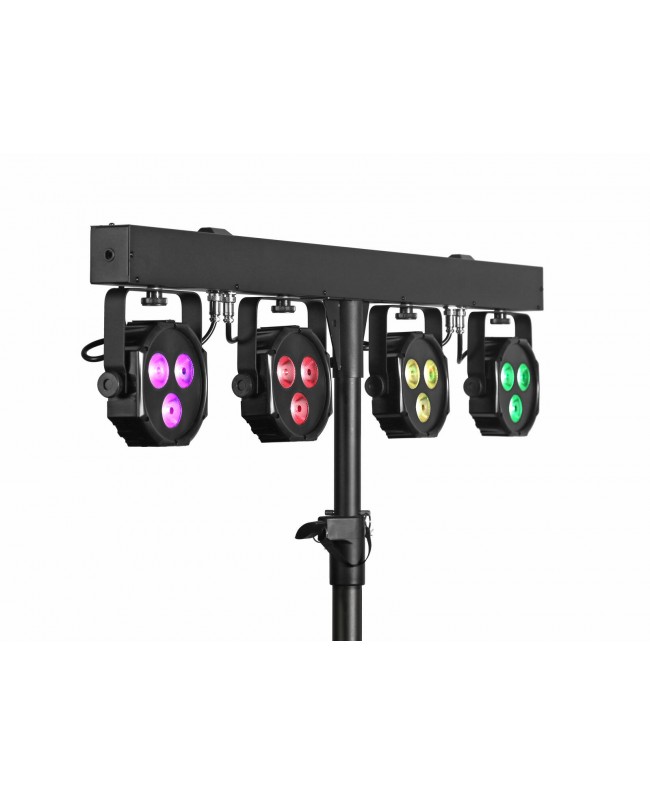

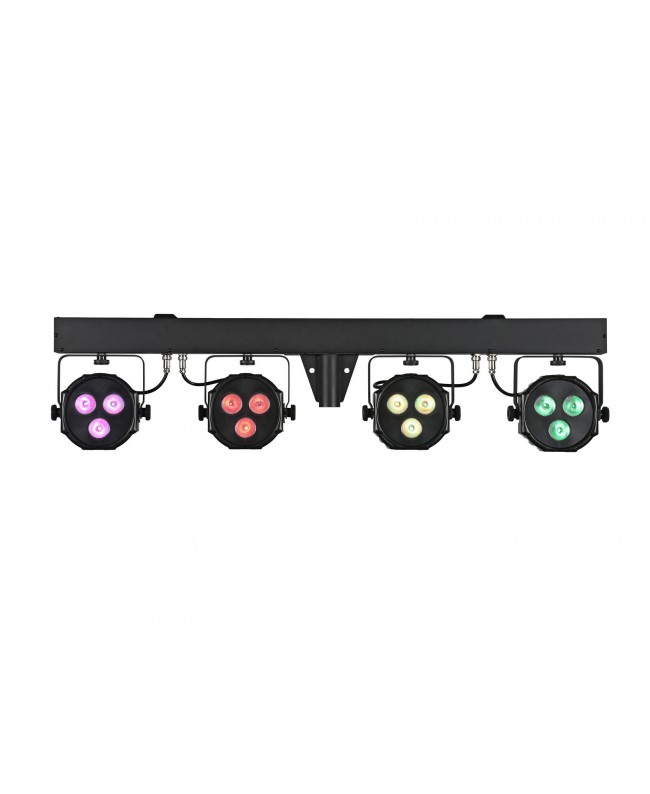

Crossbar with integrated DMX control unit and stand sleeve
Integrated AirW radio transceiver for wireless master/slave operation
AirW: operating range up to 70m with line-of-sight
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
12 LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) 4 spots controlled separately
With a beam angle of 12°
Spot effect; strobe effect
Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
Direct color selection for 20 preset colors
20 integrated show programs
Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
3 buttons on the remote control for saving your own settings
DMX fail mode (blackout; hold; full on; auto)
Good color rendering index (CRI)
Flicker-free
Monochrome 4 digit 7-segment LED display
With mounting bracket
Silent operation
The device is cooled by passive convection cooling
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Suspended; on stand
Mains input and output for power linking up to 8 units
remote control
Wireless remote control: operating range up to 30m with line-of-sight
Scope of delivery
1 x device
1 x user manual
1 x power cord
1 x remote control
1 x battery
2 x mounting bracket
1 x declaration of conformity
9 x knurled screw

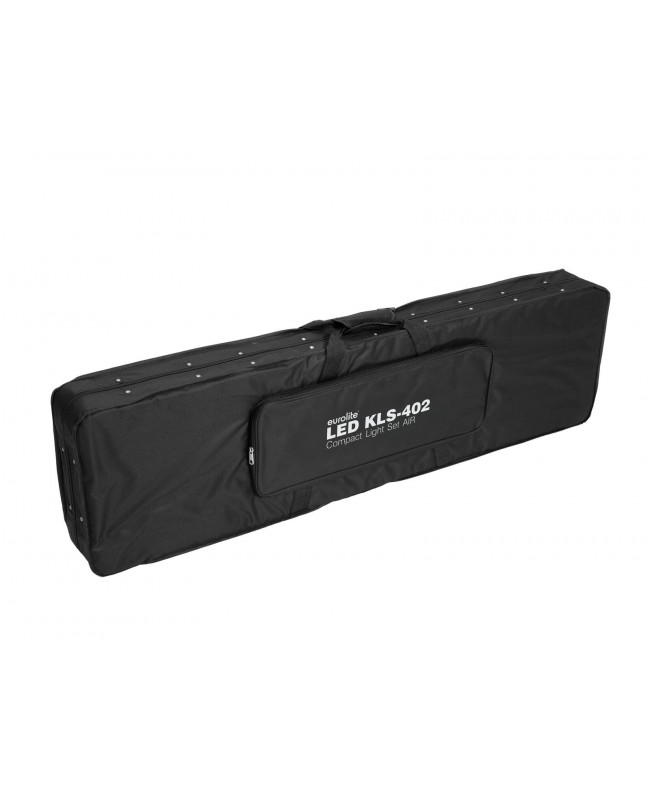

1 x bag
9 x washer
1 x adapter
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 50 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: 1 x P-Con (gray), mounting version Bypass, 2 x IEC connector (F) mounting version fused / 5A
Device fuse: 5 x 20 mm, T 1.6 A fuse replaceable
Power output fuse per channel: 5 x 20 mm, T 5 A fuse replaceable
Lamp type: LED lamp
LED type: 12 x 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
Flash rate: 0.3 - 20 Hz
DMX channels: 3; 4; 6; 8; 16; 18; 20
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version Bypass
Cooling: Passive convection cooling
Control: Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
