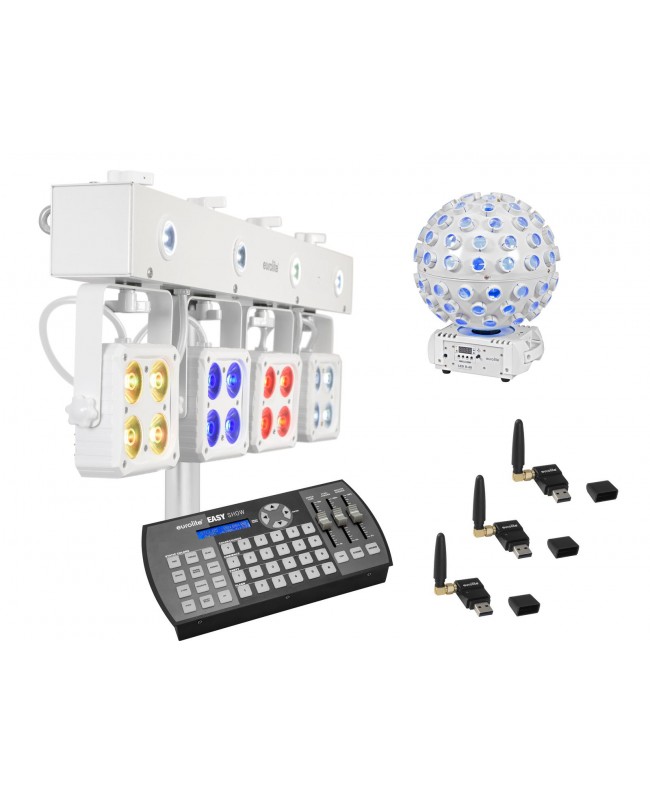

Eurolite Set LED KLS-180 wh + LED B-40 wh + USB QuickDMX + Easy Show

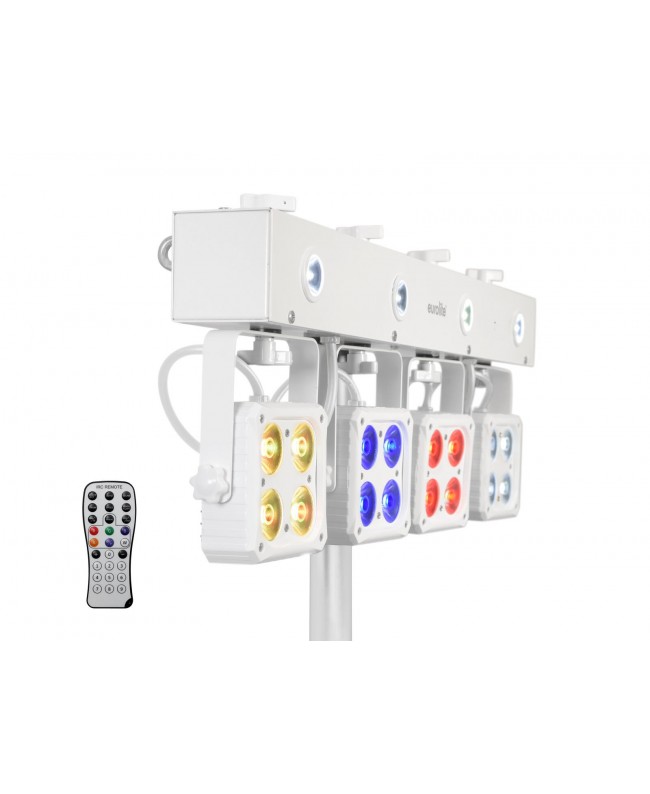

EUROLITE LED KLS-180 Compact Light Set wh

• Crossbar with integrated DMX control unit and stand sleeve
• Compact lightweight
• Movable and tiltable spotlights
• Dimmer electronic; color blend stepless; color change adjustable; colors preset
• Strobe effect
• The device is cooled by passive convection cooling
• Control via IR remote control; stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light'J; Colorchief
• Flicker-free
• With a beam angle of 9°
• With mounting bracket
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; party room; restaurants, bars and hotels
• Silent operation
• Application possibility: Suspended; on stand

spotlight

• 4 LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
  4 spots controlled separately

bar

• 4 LEDs 1 W SMD 8072 cold white (CW)
  LEDs controlled separately

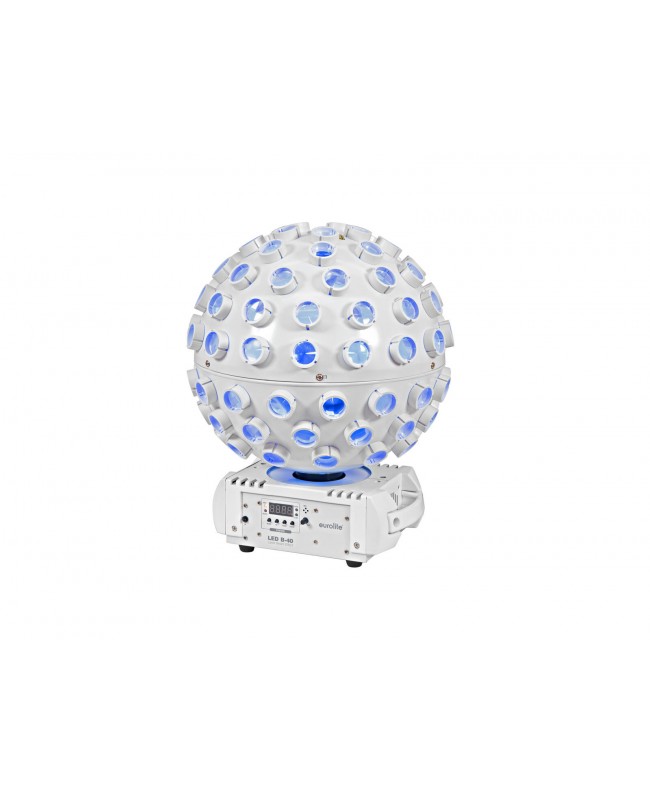

EUROLITE LED B-40 Laser Beam Effect wh

LED beam effect with RGBW color mixing and RG laser

• 2 laser diodes project hundreds of red and green laser beams
• 5 LEDs 8 W SMD 9080 4in1 QCL RGBW
  3 segments controlled separately
• Rotation speed stepless; color blend stepless; Dimmer electronic
• Laser; multi beam effect; strobe effect
• Laser class 2M
  does not require additional protective measures or appointment of a laser safety officer
• 7 integrated show programs
• The device is cooled by cooling fan at the head; cooling fan at the base
• Control via IR remote control; stand-alone; sound to light via microphone; DMX; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light'J; Colorchief
• With mounting bracket
• Mains input and output for power linking up to 8 units
• For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; advertisement/Shop window
• Application possibility: Standing; suspended; on stand

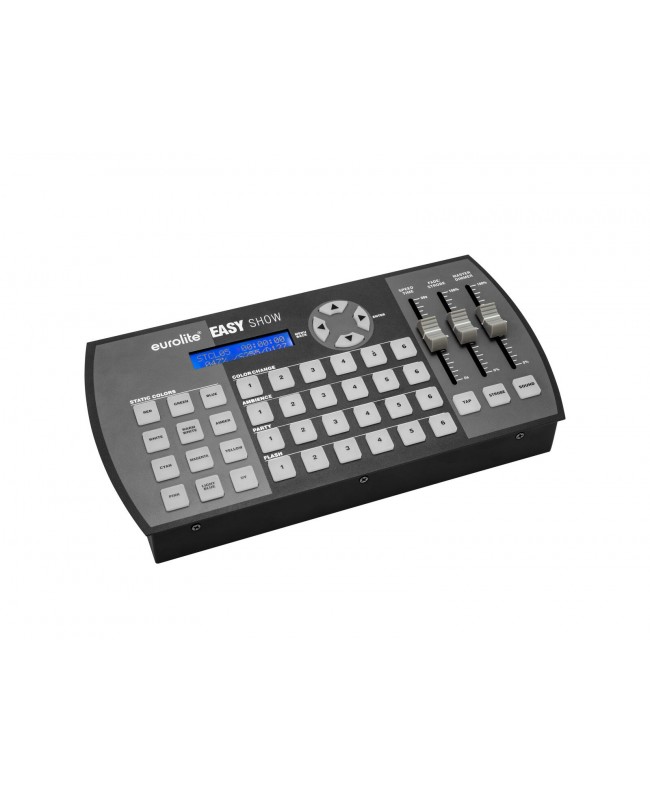

EUROLITE EASY Show

Programmed DMX controller for over 200 spotlights from EUROLITE

• Easy-to-use DMX controller and DMX recorder
• Designed for DMX beginners with 200 programmed fixtures
• DMX recording function for your own projects, ideal for installations or rental companies
• Ideal for colored LED spotlights, KLS systems, moving lights and lighting effects
• No programming required, simply connect your spotlights and get started
• All spotlights can be freely combined to a show
• Data storage on USB flash drives
• A list of all preset devices is available at www.steinigke.de
• Program speed adjustable; color fade adjustable; Dimmer
• Strobe effect
• 24 integrated show programs
• Direct color selection for 12 preset colors
• Preprogrammed 24 scenes/chases and 12 cues
• Control via DMX; sound to light via microphone; QuickDMX via USB (optional)
• Monochrome LCD display
• Desktop console housing
• For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
• Silent operation

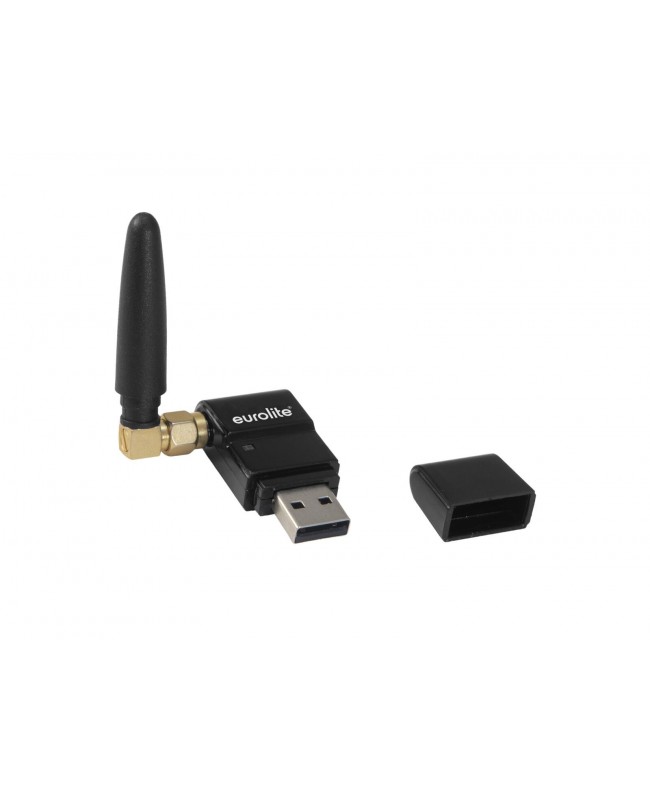

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

• User-friendly USB plug with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Control via DMX; QuickDMX; plug and play
• Operating range up to 400m with line-of-sight
• Up to 6 transmitters can be operated in parallel without interference

Scope of delivery

1 x EUROLITE LED KLS-180 Compact Light Set wh

• 1 x device
• 1 x bag
• 1 x remote control
• 1 x battery
• 1 x power cord
• 1 x user manual

1 x EUROLITE LED B-40 Laser Beam Effect wh

• 1 x light effect
• 1 x user manual
• 1 x power cord
• 1 x remote control
• 1 x mounting bracket
• 4 x screw
• 4 x washer

1 x EUROLITE EASY Show

• 1 x controller
• 1 x user manual
• 1 x external mains adapter
• 2 x USB cable
• 2 x mounting bracket
• 4 x screw

3 x EUROLITE QuickDMX USB Wireless Transmitter/Receiver

• 1 x device
• 1 x user manual
• 1 x declaration of conformity
