Color wheel with 8 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 8 gobos gobos changeable
Slot-in gobo system for easy gobo replacement
24 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Colorchief; Light Captain
With a beam angle of 80°
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; stage; mobile djs / entertainer; restaurants, bars and hotels; rental
Very quiet working noise
Application possibility: Suspended; on stand
2 buttons on the remote control for saving your own settings
Scope of delivery
1 x device
1 x power cord

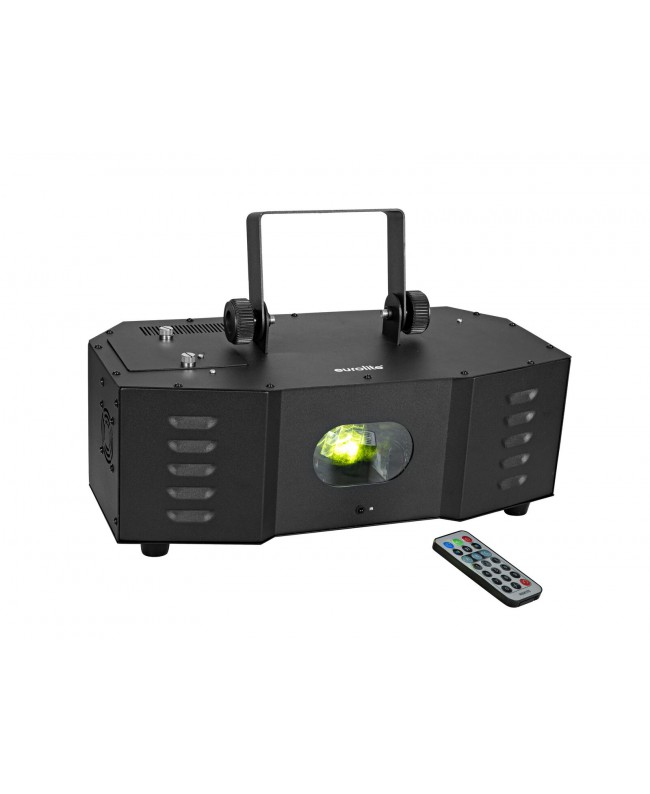

1 x remote control
1 x battery
6 x gobos
1 x user manual
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 140 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug
Power output: IEC connector (F) mounting version
Fuse: 5 x 20 mm, T 2.5 A fuse replaceable
Lamp type: LED lamp
LED type: 1 x 100 W COB (chip-on-board) cold white (CW)
Flash rate: 0.5 - 25 Hz
Equipment: Gobo wheel with rotating gobos; color wheel
Color generation: Color wheel with 8 dichroic filters plus open, Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos: Gobo wheel with rotating gobos, 8 gobos, Outside diameter 23.80mm, Image diameter 14mm, Gobos changeable, Slot-in gobo system for easy gobo replacement
DMX channels: 2; 6; 8
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan
Control: Stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Colorchief; Light Captain
Beam angle: 80°
Beam angle (1/2 peak): 80°
Color temperature: 8000K
Housing color: Black
Display type: 4 digit 7-segment LED display
Dimensions: Length: 40.5 cm, Width: 22.5 cm, Height: 26 cm
Weight: 5.55 kg
Noise classification: Class 1 (very slight noise, suitable for noise-sensitive environments)
Diameter mounting holes: 1 x Ø13mm
Material: Metal, 2 mm
Battery: Button cell 3.0 V CR2025 lithium manganese built-in
Special product: Not designed for household room illumination
