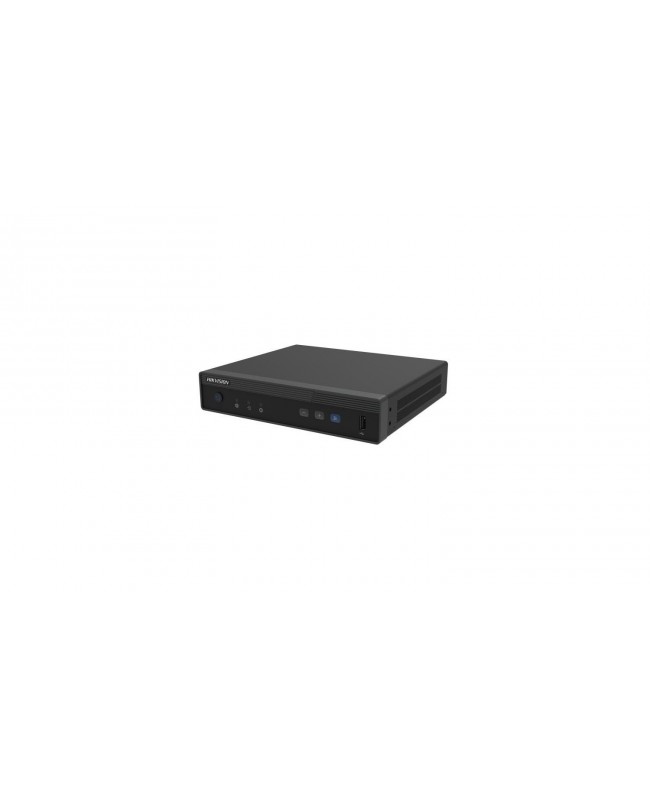

Hikvision Ledwall Controller 1U 2 Portedata OUT

2-Port LED Controller Adopts 1U high and half-width rackmount chassis with industrial-grade chassis system.

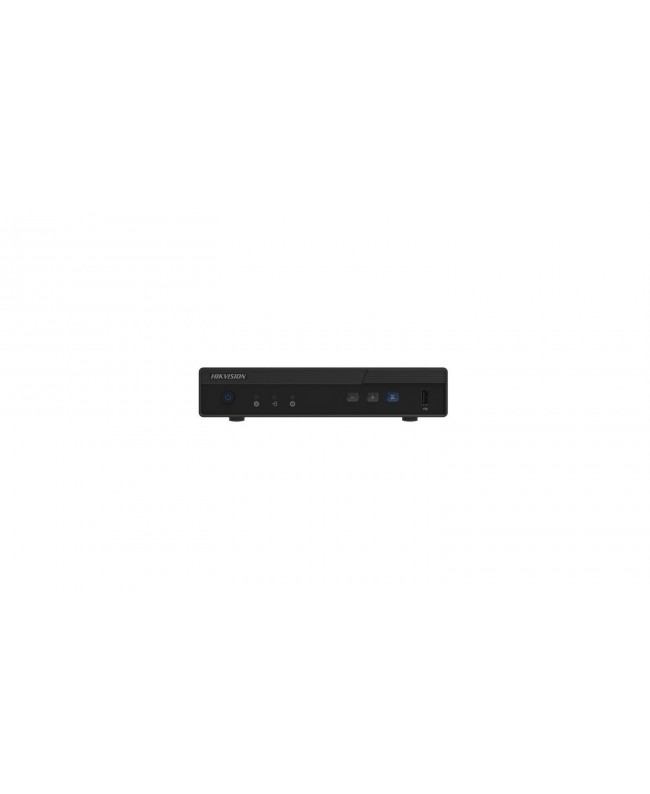

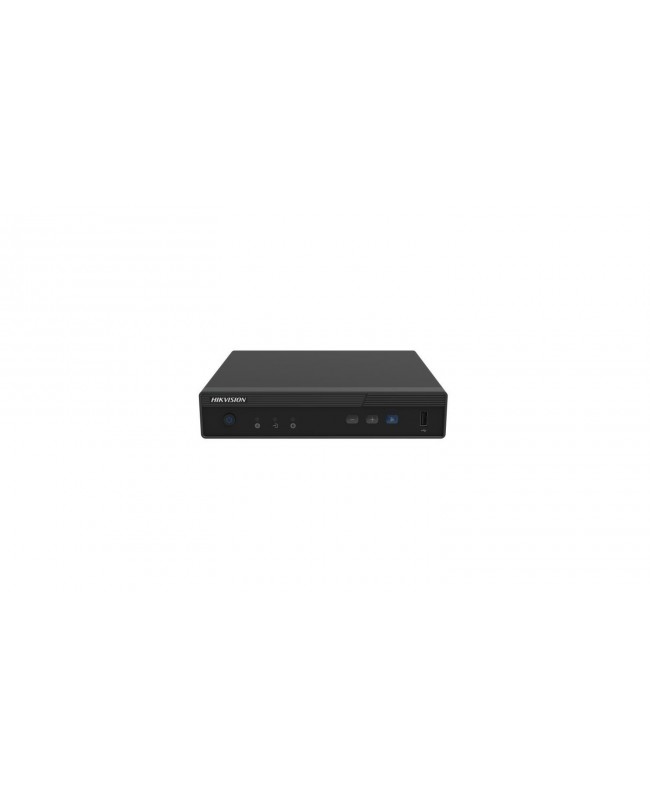

Buttons on front panel for brightness adjustment and signal source switching.

LED indicators on front panel for power status, signal access and operation status.

Supports 1 channel of HDMI 1.4 video input with 1920 x 1200 resolution at 60 Hz.

Supports automatic frame rate adjustment from 25 Hz to 60 Hz for image collection.

Supports RGB 444 image output without loss of image quality.

Supports 2 channels of upload output with a maximum capacity of 1.3 MP.

Supports input of a mixed HDMI video and audio stream and audio output via 3.5 mm jack.

Supports full screen zoom and custom zoom for input video signal.

Supports cascading and unified control of multiple LED controllers through the network.

Supports HDCP 2.2 high-bandwidth digital content protection technology.

Supports hot backup and backup between devices and network ports.

Supports custom cable alignment without rectangular frame limitation.

Supports operation via client or LED controller web page.

Supports display of the last frame when the signal is lost.

Supports background configuration and editing.

Supports configuration of screensaver and startup logo.

Supports using the remote control to control the screen and display the remote UI menu.

Supports physical buttons to adjust brightness, change signal source, and configure other functions.

Supports pixel-level correction to eliminate color differences and improve image quality.

Supports HDR output to significantly improve image quality, make colors more realistic and detailed.

Supports color temperature adjustment, with standard, warm and cool options, and color temperature customization.

Supports eye protection mode to reduce eye fatigue.

Supports 3840 Hz high refresh rate output, with nanosecond response time and smooth video.

Supports display of the loading relationship between the device and the LED screen.

Supports detection of abnormal screen positioning during operation.

Supports detection of abnormal screen voltage, screen temperature, and device temperature.

Supports connection with central control devices and IoT devices via RS-485 port.

Supports integration with devices via SDK and OTAP protocols and management via network control port.

• Maximum width for single device: 5120 pixels
• Maximum height per single device: 5120 pixels
• Maximum capacity of each network port: 0.65 MP
• Supports custom EDID settings.
• Supports configuration of screen dehumidification.
• Supports changing the display mode, including: General, Text, Advertising, Video, Cinema, Security, Others
• Supports monitoring of operational parameters including:Operational status of device
• Device memory
• CPU utilization
• Operating temperature
• Network port utilization
• Supports connection with multifunction cards via network control port for:Detection of ambient temperature
• Detection of ambient humidity

• Brightness control: adjustable from 1 to 100 (level-by-level white balance).
• Frame frequency: from 25 Hz to 60
• Hz. Gray levels: 256.
• Display colors: 16
• MP. Processing depth: 8 bits.
• Image scaling: supported.
• DS-DT60C-01HI02NO. Chassis: 1U height, half width.
• Product type: LED controller (only supports receiver cards using hub ports).
• Average power consumption: max. 13 W. Number of power interfaces: 1.
• Power supply specifications: 100-240 VAC, 50/60
• Background images: 2.
• Background resolution: Min. 640 x 480, Max. 1920 x 1200.
• Working temperature: -10°
• Storage humidity: 10% ~ 90%.
• Working humidity: 10% ~ 90%.
• Storage temperature: -10°
• Net weight: 0.83 kg (1.85 lb).
• Gross weight: 1.38 kg (3.04 lb). Dimensions (W x H x D): 210 mm x 42 mm x 177.4 mm (8.27 x 1.65 x 6.98).
• Package Contents: 1 x AC power cord. 1 x Connection bracket. 1 x Mounting bracket. 1 x Phoenix green RS-485 connector for central control device. 1 x Regulatory compliance and safety manual. 1 x
• Number of interfaces: 1.
• Interface type: 1 integrated HDMI input channel.
• Number of interfaces: 1.
• Interface type: 3.5 mm audio output.
• Number of interfaces: 1.
• Interface type: HDMI 1.4. Maximum input resolution: 1080P. HDMI 1.4 resolution: -
• Maximum: 1920 x 1200 at 60 Hz. -
• Maximum width: 144~4096 px (alignment: 2). -
• Maximum height: 144 ~ 4096 px (alignment: 1). - HDCP 1.4 support (interlaced inputs not supported).
• Processing depth: 8 bits.
• Sampling format: -
• RGB: 444. -
• YUV: 444. -
• YUV: 422.
• Video Outputs: Maximum output resolution: 1.3 MP. Load capacity per LED: -
• Single port: 650,000 px. -
• Width: 144~5120 px (alignment: 2). -
• Height: 64~5120 px (alignment: 1). Number of load interfaces
• LED: 2. Interface type
• RJ-45. Wireless: Supports remote control
• USB ports: 1 x USB 2.0.
• Buttons: - +: Increase brightness. - - -: Decreases brightness. -
• Source: Changes signal source.
• LED indicators: -
• Active: The device is in operation. -
• Source: Received signal. -
• Error: Operating error.
• Power switch: -
• On: Device on. -
• Off: Device off or not started.

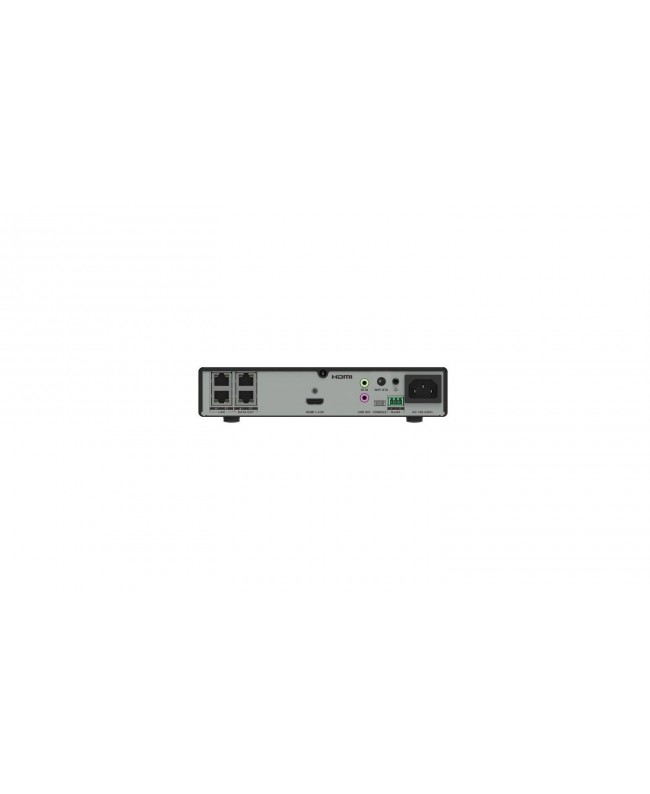

• Network ports: 2 x Ethernet 10/100/1000 Mbps (RJ-45). - External network connection and multi-device cascade management.
• IR input: 1 x 3.5 mm connector (supports remote control
• IR). Serial interface: - 1 x Serial debug port (4-pin). - 1 x RS-485 port for central control (green connector
• Phoenix). Baud rate: 115200, 8-bit data.
