Hikvision Ledwall Controller 1U 4 Portedata OUT

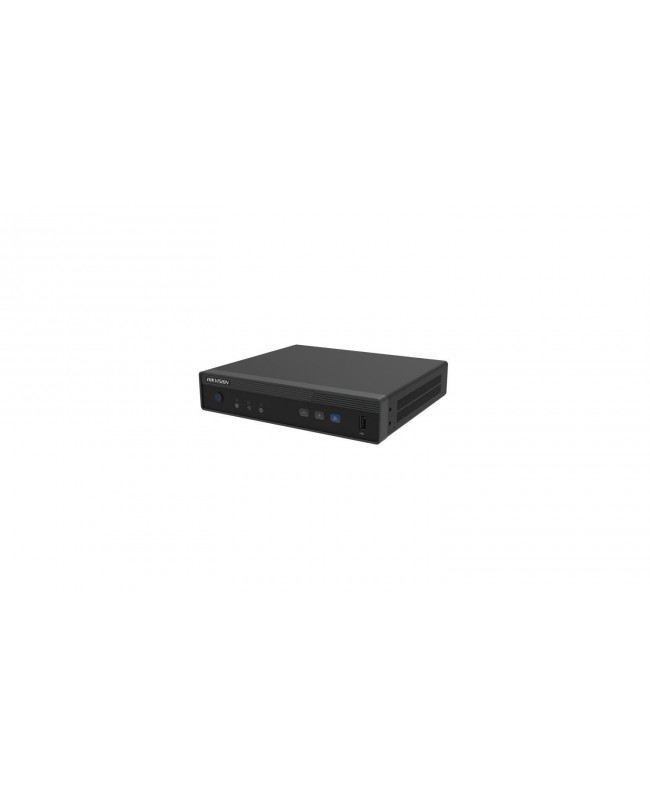

4-Port LED Controller Adopts a rackmount chassis with 1U height and half width, with an industrial-grade chassis system.

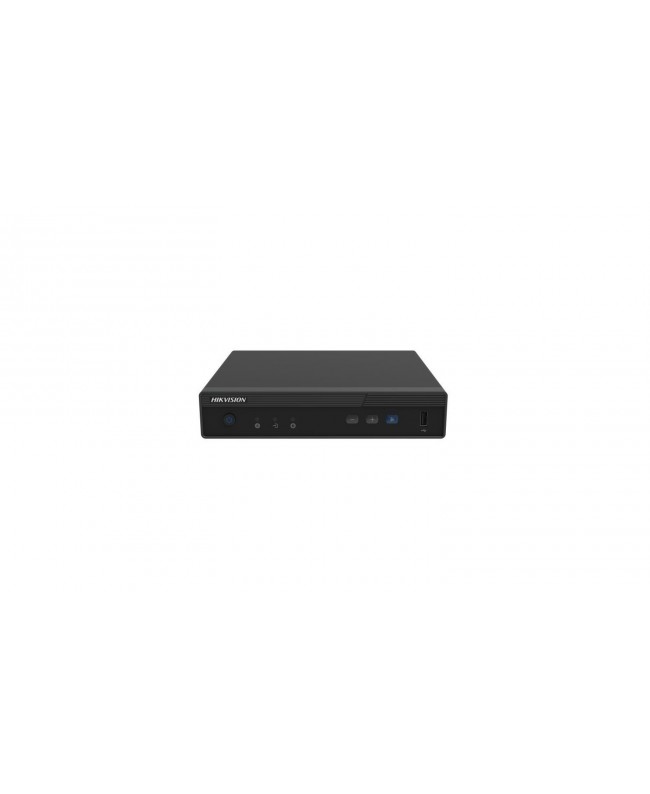

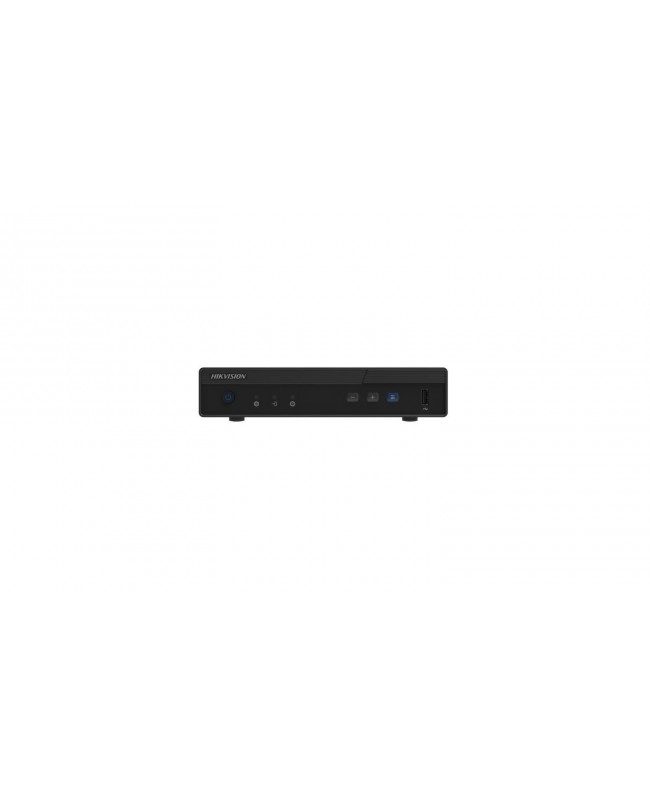

Front-panel buttons for dimming and signal source switching.

LED indicators on front panel for power status, signal access, and operational status.

Supports 1 channel of HDMI 1.4 video input with 1920 x 1200 resolution at 60 Hz.

Supports automatic frame rate adaptation from 25 Hz to 60 Hz for image capture.

Supports RGB 444 output without loss of image quality.

Supports 4 output channels with maximum load capacity of 2.6 MP.

• Maximum output resolution: width 5120 pixels, height 5120 pixels for single device.
• Storage Humidity: 10% - 90%
• Working Humidity: 10% - 90%
• Storage Temperature: -10°
• Net Weight: 0.99 kg (2.18 lb.)
• Gross Weight: 1.53 kg (3.37 lb.) Dimensions (W x H x D): 210 mm x 42 mm x 177.4 mm (8.27 x 1.65 x 6.98)
• Packing List: 1 x AC power cord, 1 x Connection bracket, 1 x Mounting bracket, 1 x RS-485 green contact for central control device, 1 x Compliance and safety manual, 1 x RF remote control
• Audio Input Interfaces: 1 Type of Audio Input Interface: 1 channel of built-in HDMI input
• Audio Output Interfaces: 1 Type of Audio Output Interface: 3.5mm Audio Output Input
• Video Input Interfaces: 1 Type of Video Input Interface: HDMI 1.4
• Video Input Resolution: HDMI 1.4
• Maximum Resolution: 1920x1200 at 60 Hz
• Minimum Resolution: 320x180 at 60 Hz Supports custom resolution. Total resolution must not exceed 2.6
• Maximum height: 144-4096, alignment: 1 Supports HDCP 1.4 Interlaced signal input not supported
• RGB: 444
• YUV: 444
• YUV: 422 Video Output
• Maximum Video Output Resolution: 2.6 MP Loading Capacity for LED Video Output: Single mesh port with loading capacity of 650000 Width 144-5120. alignment: 2 Height 64-5120. alignment: 1
• LED Loading Interfaces: 4 LED Loading Interface Type:
• RJ-45 Wireless Remote Control: Supports remote control
• IR Front Panel USB Port: 1 channel USB 2.0
• Buttons: + : Increase the brightness - : Decrease the brightness
• Source: Changes the signal source
• Active: The device is running
• Source: The signal source is connected
• Error: An operational error has occurred
• On: Device is on and running
• Off: Device is off or not started Control Interface

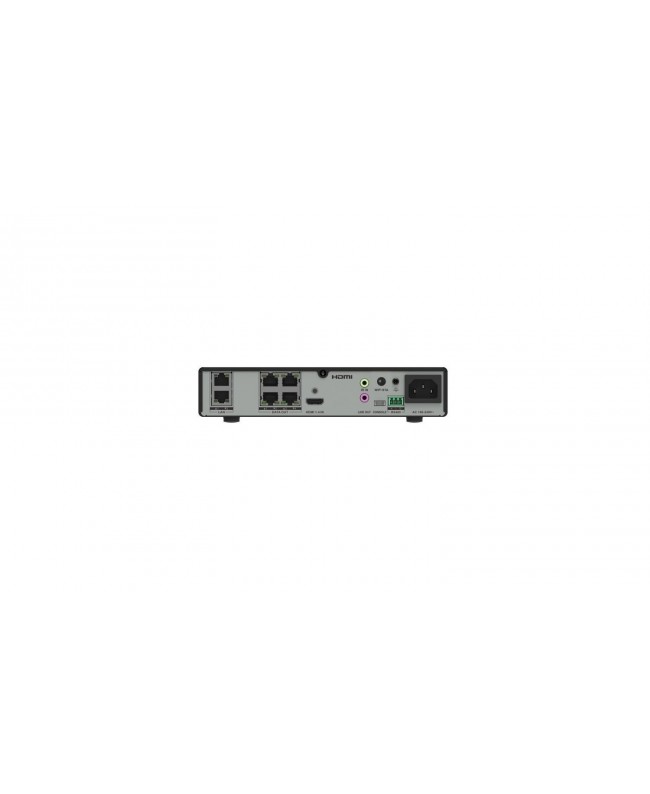

• Control Network Port: 2 x 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to external network and supports multi-device cascade management
• IR Input: 1 x 3.5 mm connector Supports connection with remote control
• IR Serial Interface: 1 x Debug serial port (4-pin connector) + 1 x RS-485 serial port for central control (green contact
• Phoenix) Baud rate: 115200, data bits: 8
