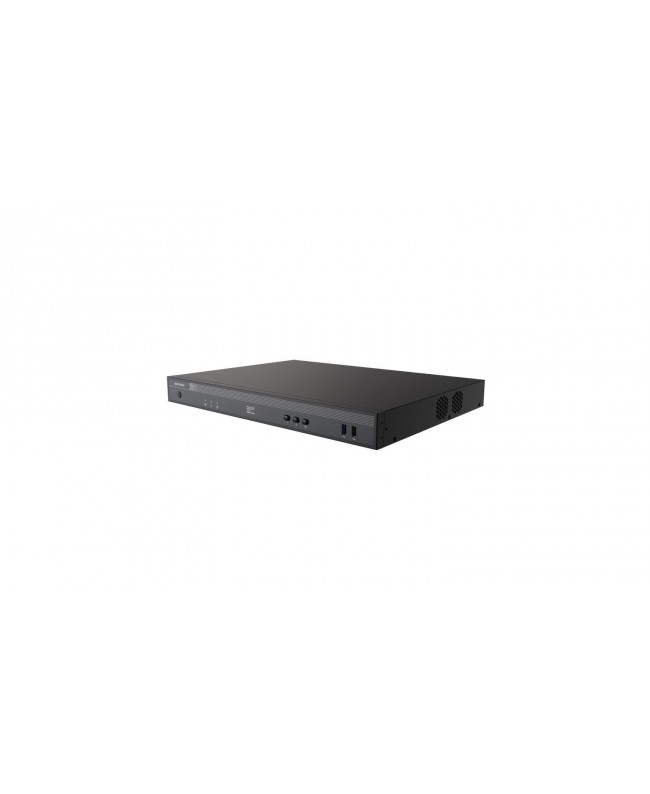

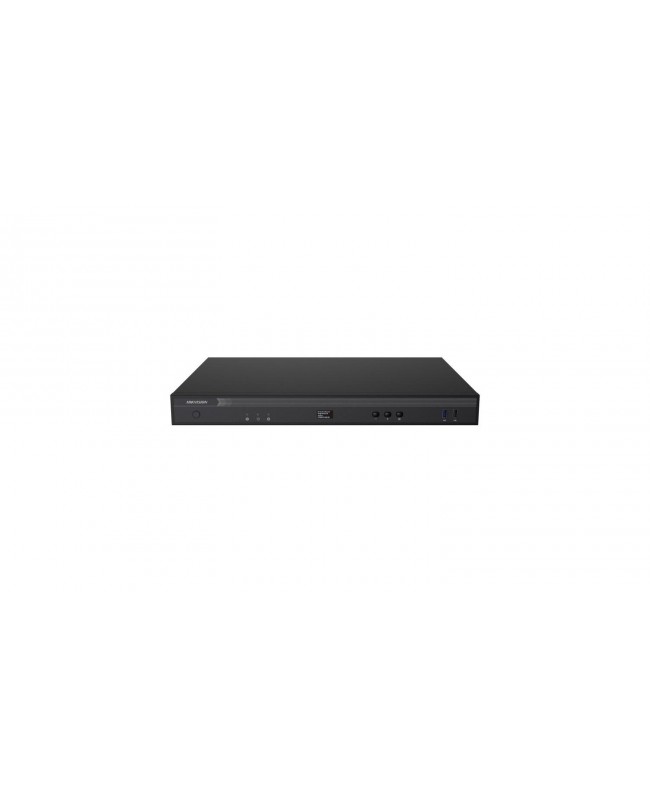

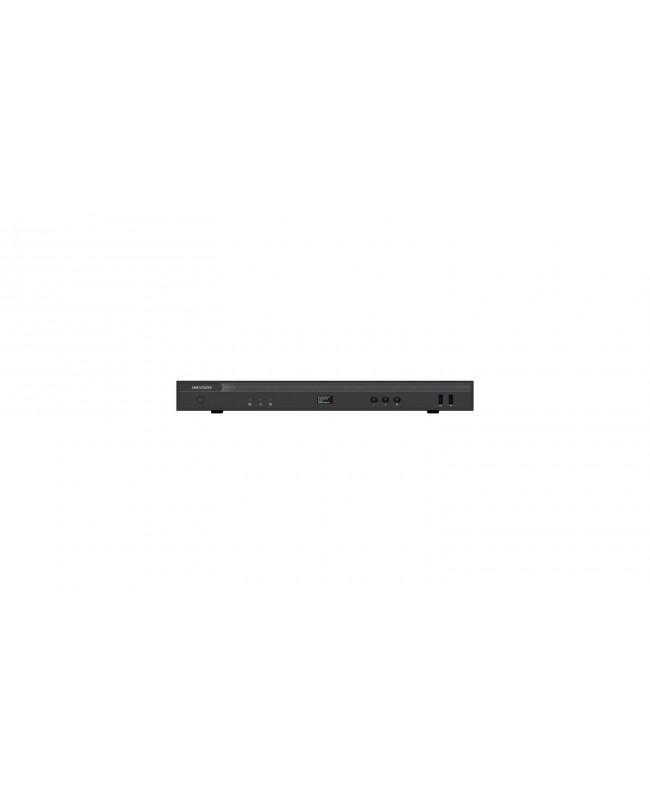

Hikvision Ledwall Controller 1U 12-Port 3-in-1DATA OUT

3-in-1 12-port LED controller Provides a non-touch color OLED display with 128 x 64 resolution, allowing device status to be displayed at any time and simplifying maintenance.

Adopts a 1U rackmount chassis with industrial system.

Features buttons on the front panel to change brightness and other parameters.

Features indicators on the front panel to indicate power status, signal access and operational status.

• Supports 2 channels of video input:DVI resolution: 1920 x 1200 at 60 Hz

• HDMI 2.0 resolution: 4096 x 2160 at 60 Hz
• Maximum height: 8,192 pixels
• Maximum capacity per network port: 0.65 MP
• DVI: Maximum output
• HDMI in loop: 4096 x 2160 at 60 Hz
• DVI in loop: 1920 x 1200 at 60 Hz Processing performance
• Brightness control: adjustable from 1 to 100 (level-by-level white balance)
• Frame rate: 25 Hz to 60 Hz
• Gray level: 256
• Display colors: 16
• MP Processing depth: 8 bits
• Image scaling: supported Product model
• Chassis width: 440 mm (17.32 inches) Product type LED controller Controller power supply
• LED Average consumption: max. 42 W Number of power interfaces: 1 Power interface specifications: 100-240 VAC, 50/60 Hz
• Videowall Open windows: 3 source windows + 2 image windows + 1 scrolling text window + 1 background window
• Levels per device: 7
• Scenes: 10
• Background images: 1 Background resolution:
• Min: 640 x 480,
• Max: 1920 x 1200 Background format:
• JPG/JPEG Subtitles: 1
• Width of subtitles: 32,760 pixels
• Subtitle font: supports Xiaomi fonts and custom fonts
• General Operating temperature: -10°
• Storage humidity: 10%-90%
• Operating humidity: 10%-90%
• Storage temperature: -10°
• Net weight: 3.36 kg (7.40 lb)
• Gross weight: 4.48 kg (9.87 lb) Dimensions (W x H x D): 440 mm x 44.5 mm x 320.8 mm (17.32 x 1.75 x 12.63)
• Package Contents: 1 x AC power cord, 1 x mounting bracket, 2 x Phoenix RS-485 green connector for central control device, 1 x regulatory compliance and safety manual, 3 x bar antennas, 1 x RF remote control Audio input Number of audio input interfaces: 2 Audio input interface type: 1 HDMI 2.0 channel + 1 Android integrated channel Video input Number of video input interfaces: 3 Video input interface type: 1 HDMI 2.0 + 1 DVI + 1 Android integrated Maximum video input resolution: HDMI 2.0: 4K
• DVI: 1080p Video input processing
• Processing depth: 8 bit
• RGB: 444
• YUV: 444
• YUV: 422
• YUV: 420 Video output Number of video output interfaces: 12 Maximum video output resolution: 7.8 MP Video output resolution: RJ-45 Load capacity per video output
• Single port: 650,000 pixels
• Width: 320-32,760 pixels
• Height: 64-8,192 pixels Video loop output Number of video loop output interfaces: 2 Type of video loop output interface: 1 HDMI 2.0 + 1 DVI Maximum loop output resolution:
• System Operating system: Android 12
• Memory: 4
• GB Storage: 32
• GB CPU: ARM Cortex-A55 64-bit, quad-core, 2.0 GHz
• Wireless WiFi: STA 2.4 GHz, AP 2.4 and 5 GHz
• Bluetooth: 4.0
• Antennas: 3 x bar antennas Remote control Supports IR and RF remote control Front panel
• Display: OLED 128 x 64
• USB port: 1 x USB 2.0 + 1 x USB 3.0
• Buttons: +: increase brightness -: decrease brightness
• Source: change source Control interface
• Network ports: 2 x RJ-45 (10/100/1000
• Mbps) IR input: 1 x 3.5 mm jack
• Serial interface: 1 x debug serial port (4 pin) + 1 x RS-485 for central control (green Phoenix connector) + 1 x RS-485 for light perception
• Baud rate: 115200, data: 8 bit
