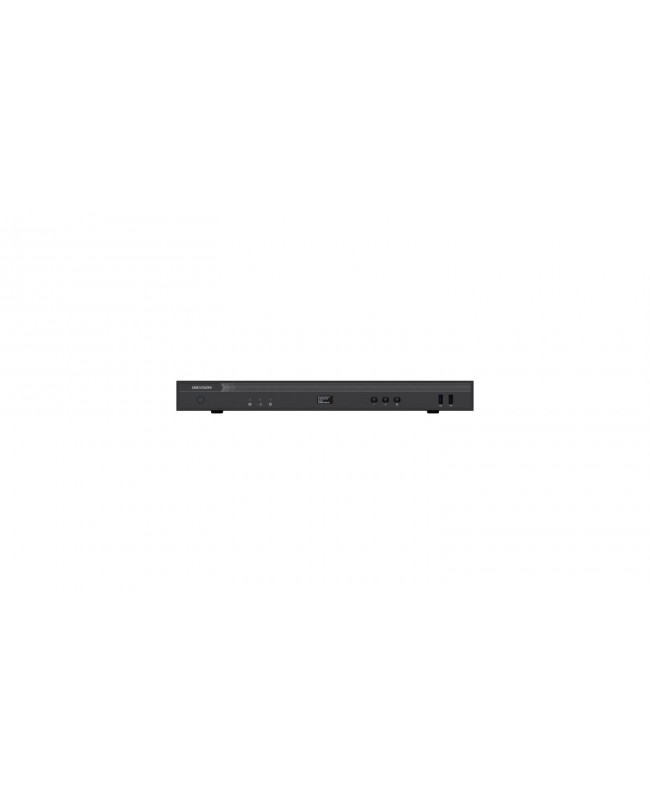

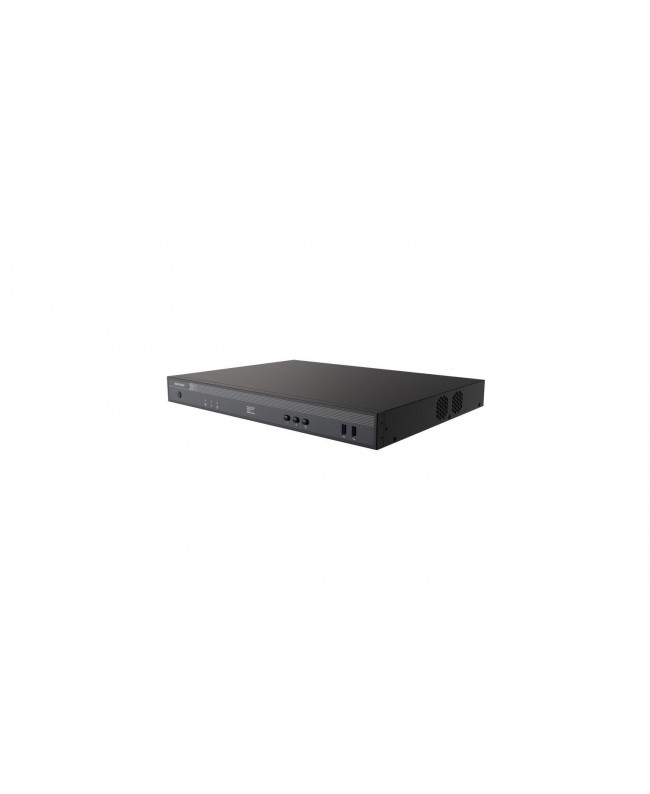

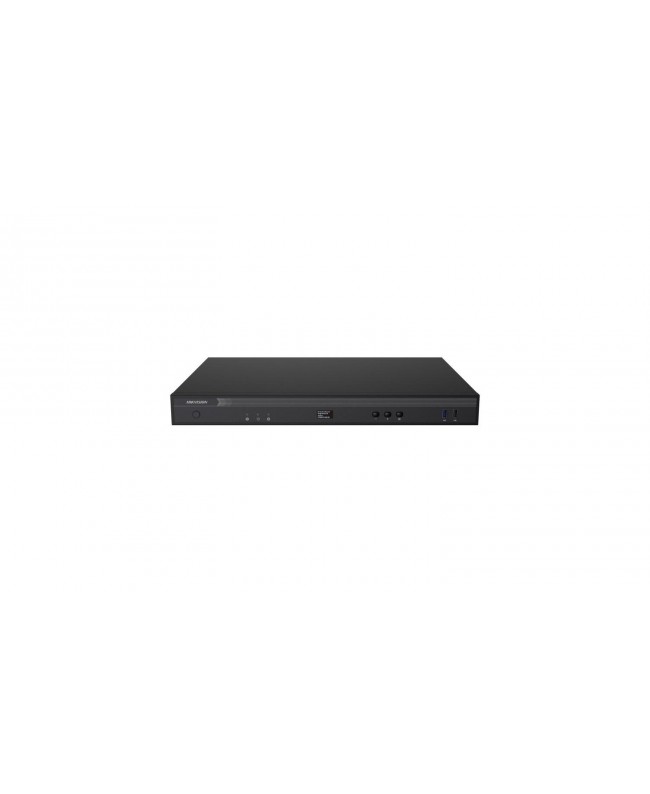

Hikvision Ledwall Controller 1U 20-Port 3-in-1DATA OUT

20-port 3-in-1 LED controller Provides a non-touch color OLED screen with 128 x 64 resolution, allowing device status to be displayed at any time and facilitating maintenance.

Adopts a 1 U rackmount chassis and industrial chassis system.

Includes buttons on the front panel to adjust brightness and other parameters.

LED indicators on front panel to indicate power status, signal access, and operational status.

Supports automatic frame rate adjustment from 25 Hz to 60 Hz for image collection.

Supports 20 output channels with maximum load capacity of 13 MP.

• Supports 2 channels of video signal input:DVI with 1920 x 1200 resolution at 60 HzHDMI 2.0 with 4096 x 2160 resolution at 60 Hz

• Maximum resolution per device: width 32,760 pixels, height 8,192 pixels.
• HzDVI: 1920 x 1200 at 60 Hz
• Frame Rate: 25 Hz - 60 Hz
• Gray Level: 256
• Display Color: 16
• MP Processing Depth: 8 bit
• Image Resizing: supported
• Chassis Width: 440 mm (17.32 inches)
• Product Type: LED Controller
• Videowall Open Windows: 3 source windows + 2 image windows + 1 scrolling text window + 1 background window
• Layers per Device: 7
• Scenes: 10
• Background Images: 1
• Background Resolution: Min. 640 x 480, Max. 1920 x 1200
• JPG/JPEG Subtitles: 1
• Subtitle Width: 32,760
• Subtitle Font: supports Xiaomi fonts and custom fonts
• General Working Temperature: -10°
• Storage Humidity: 10% - 90%
• Working Humidity: 10% - 90%
• Storage Temperature: -10°
• Net Weight: 3.35 kg (7.39 lb)
• Gross Weight: 4.47 kg (9.85 lb) Dimensions (W x H x D): 440 mm x 44.5 mm x 320.8 mm (17.32 x 1.75 x 12.63)
• Package Contents: 1 x AC power cord, 1 x mounting bracket, 2 x Phoenix RS-485 contacts for central control device, 1 x regulatory and safety manual, 3 x bar antennas, 1 x RF remote control Audio Input Number of Audio Input Interfaces: 2 Type of Audio Input Interface: 1 HDMI 2.0 + 1 built-in Android Video Input Number of Video Input Interfaces: 3 Type of Video Input Interface: 1 HDMI 2.0 + 1 DVI + 1 built-in Android channel
• DVI: 1080p
• DVI Port: Max. 1920 x 1200 at 60 Hz, Min. 320 x 180 at 60 Hz Supports custom resolution, max. 2.6
• Max. height: 180 - 3840, alignment: 1 Supports HDCP 1.4 Interlaced signal not supported HDMI 2.0 port: Max. 4096 x 2160 at 60 Hz, Min. 320 x 180 at 60 Hz Supports custom resolution, max. 8.8
• Max. height: 180 - 8192, alignment: 1 Supports HDCP 2.2 Interlaced signal not supported Features
• RGB: 444
• YUV: 444
• YUV: 422
• YUV: 420 Output
• MP Video Output Resolution: RJ-45 Load Capacity per LED Video Output: Maximum Load per port: 650000
• Width: 320-32760, alignment: 2
• Height: 64-8192, alignment: 1 Number of LED Load Interfaces: 20 Video Loop Output
• Number of Video Loop Interfaces: 2
• Video Loop Interface Type: 1 HDMI 2.0 + 1
• Memory: 4
• GB Storage: 32
• GB CPU: ARM Cortex-A55 64-bit quad-core 2.0 GHz
• Wireless WiFi: STA 2.4 GHz, AP 2.4 and 5 GHz
• Bluetooth: 4.0
• Antennas: 3 bar antennas Support IR and RF remote control
