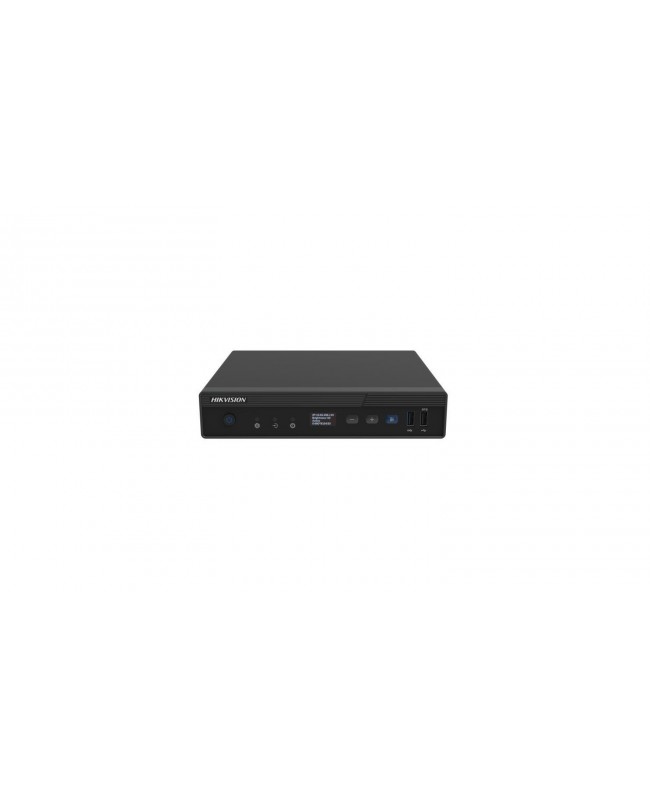

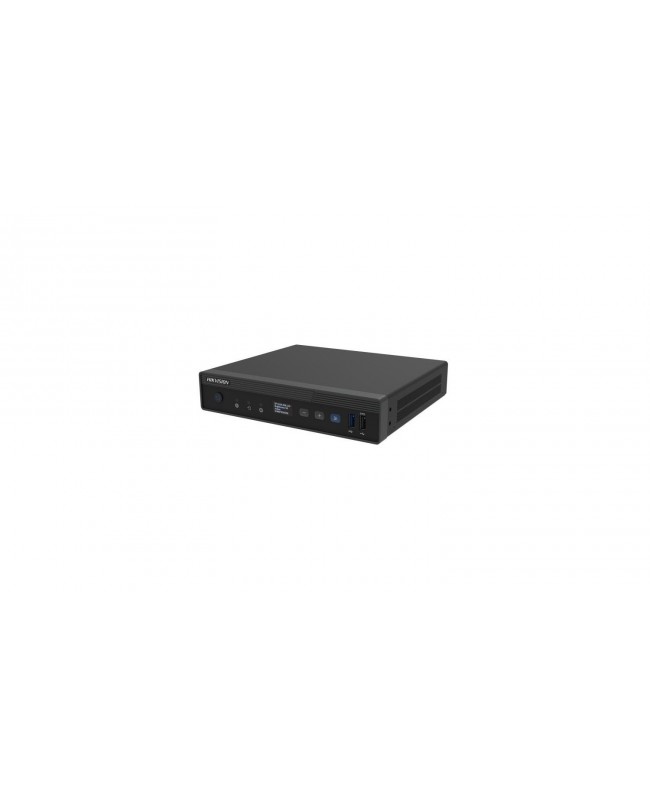

Hikvision Ledwall Controller 1U 4-Port 3-in-1DATA OUT

LED Controller 4 Ports 3-in-1 Provides a non-touch color OLED screen with a resolution of 128 x 64, allowing device status to be displayed at any time and facilitating maintenance.

Adopts a rackmount chassis of 1 U height and half width, with a high-quality industrial system.

Features buttons on the front panel to adjust brightness and other parameters.

Indicators on the front panel show power status, signal access and operational status.

Supports 2 channels of HDMI 1.4 video input with a resolution of 1920 x 1200 at 60 Hz.

Supports automatic frame rate adjustment between 25 Hz and 60 Hz for image collection.

Supports 4 output channels with a maximum capacity of 2.6 MP, a maximum width of 32,760 pixels and a maximum height of 5,120 pixels per individual device. The maximum capacity of each network port is 0.65 MP.

Supports image loading in RGB and YUV 444 formats without loss of quality.

Supports input of mixed HDMI audio and video streams and a 3.5 mm audio output.

Supports full-screen and custom zoom for the input video signal, custom switching, and custom splitting.

Allows opening source windows on the display and creating roaming windows.

Supports videowall configuration and window display.

Supports 1 channel of subtitles with settings for color, font and scrolling speed, as well as the ability to add images.

Supports cascading and unified control of multiple LED controllers via network.

Supports HDCP 2.2 high-bandwidth digital content protection technology.

Supports dual backup of power supplies, dual backup of LED controller network ports, dual backup of LED controllers, and dual backup of receiver boards.

Supports custom cable alignment without rectangular frame limitation.

Can be managed via the LED controller client or web page.

Allows you to configure the background and startup logo.

Allows you to use the remote control to control the screen and view the remote UI menu.

Supports adjustment of brightness, contrast, hue and other output image parameters.

Supports pixel-level screen correction to eliminate color differences and improve image quality.

Supports various display modes, including general, text, advertising, video, cinema, security, etc.

Allows you to select the color temperature adjustment mode (standard, warm color, cool color) and customize it.

Supports eye protection mode to reduce users' eye fatigue.

Supports 3840 Hz high refresh rate output, nanosecond response time and smooth video image.

Lets you view the load ratio between the device and the LED screen.

Allows monitoring of abnormal screen positioning during operation.

Supports monitoring of parameters such as device operating status, memory, CPU utilization, operating temperature, and network port utilization.

Supports detection of abnormalities in screen voltage, screen temperature, and device temperature.

Allows connection to central control and IoT devices via RS-485 port.

Supports command connection and device management via the control network port and protocols such as OTAP.

Allows the control network port to be connected to the multifunctional board for room temperature and humidity sensing, as well as human body temperature management in relation to screen control.

Supports up to 10 scenes, enabling immediate saving and use of future configurations.

Supports the display of 7 windows (3 source windows, 2 image windows, 1 scrolling text window, and 1 background window), with the ability to customize the layout of all windows except the background window.

• Supports custom EDID settings.
• Supports configuration of screen dehumidification.

• Brightness Control: Adjustable from 1 to 100 (level by level white balance)
• Frame Rate: 25 Hz - 60 Hz
• Gray Level: 256
• Display Color: 16
• MP Processing Depth: 8 bit
• Chassis Height: 1 U
• Chassis Width: Half Width
• Average Power Consumption: max. 16.5 W
• Number of Power Interfaces: 1
• Interface Specifications Power Supply: 100 - 240 VAC, 50/60 Hz
• Open Windows: 3 source windows + 2 image windows + 1 scrolling text window + 1 background window
• Layers per Device: 7
• Scenes: 10
• Background Images: 1
• Min: 640 x 480,
• Max: 1920 x 1200
• JPG/JPEG Subtitles: 1
• Subtitle Width: 32,760
• Subtitle Font: Supports Xiaomi fonts and custom fonts
• Operating Temperature: -10°
• Storage Humidity: 10% - 90%
• Working Humidity: 10% - 90%
• Storage Temperature: -10°
• Net Weight: 1.04 kg (2.29 lb.)
• Gross Weight: 1.58 kg (3.48 lb.) Dimensions (W x H x D): 210 mm x 42 mm x 180 mm (8.26 x 1.65 x 7.08)
• Package Contents: 1 x AC power cord 1 x Connection bracket 1 x Mounting bracket 1 x RS-485 Phoenix contact green for central control device 1 x Regulatory compliance and safety manual 1 x Bar antenna 1 x
• Number of Interfaces: 3
• Interface Type: 2 HDMI 1.4 + 1 Channel Android integrated
• Number of Interfaces: 3
• Interface Type: 2 HDMI 1.4 + 1 Android integrated Maximum HDMI 1.4 Resolution: 1080p HDMI 1.4 Resolution:
• Max: 1920 x 1200 at 60 Hz
• Min: 320 x 180 at 60 Hz Supports custom resolutions (max 2.6
• Max height: 180 - 3840, alignment: 1 alignment Supports HDCP 1.4 Does not support interlaced signals
• Processing Depth: 8 bit
• RGB: 444
• YUV: 444
• YUV: 422
• Maximum Resolution Video Output: 2.6
• Number of Interfaces: 1
• Interface Type: HDMI 1.4
• Load per Single Port: 650,000
• Width: 320 - 32,760, alignment: 2 alignments
• Height: 64 - 5120, alignment: 1 alignment
• Number of Interfaces: 4
• Number of Interfaces: 1
• Interface Type: 3.5mm Audio Output
• Operating System: Android 12
• Memory Capacity: 4
• GB Storage Capacity: 32
• GB CPU: 4-core 64-bit ARM Cortex-A55 2.0 GHz
• Wi-Fi: 2.4 GHz
• Bluetooth: 4.0
• Antenna: 1 x Bar Antenna
• Remote control: Supports remote control
• Screen: OLED 128 x 64
• USB port: 1 x USB 2.0 + 1 x USB 3.0
• Buttons: + : Increase brightness - : Decrease brightness
• Source: Change signal source
• Active: Device is running
• Source: The signal source is active
• Error: The device has an error

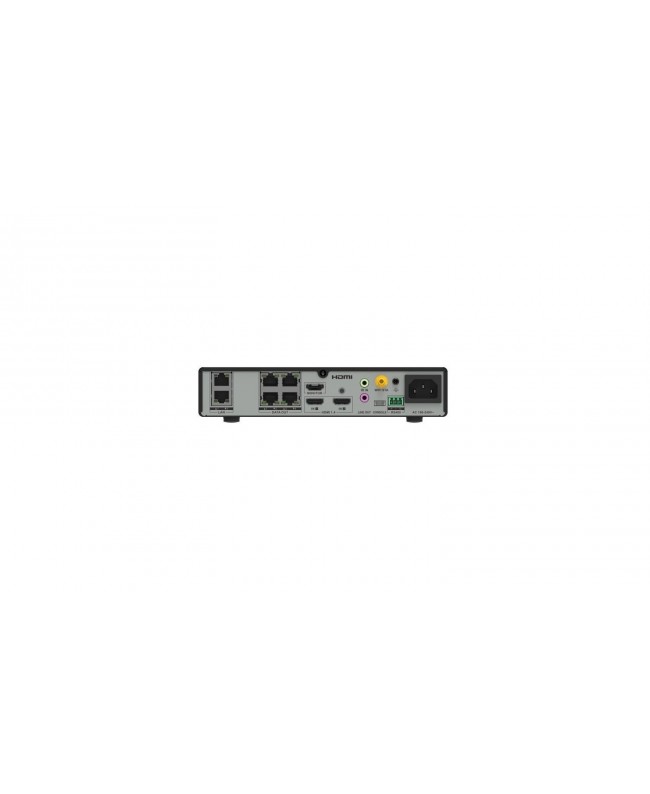

• Control Network Ports: 2 x Ethernet RJ-45 10/100/1000 Mbps (adaptive) External network connection and multi-device cascade management
• IR Input: 1 x 3.5 mm connector (supports remote control
• IR) Serial Interfaces: 1 x Serial debug port (4 pins) 1 x RS-485 serial port for central control (Green Phoenix)
• Type: Pushbutton
