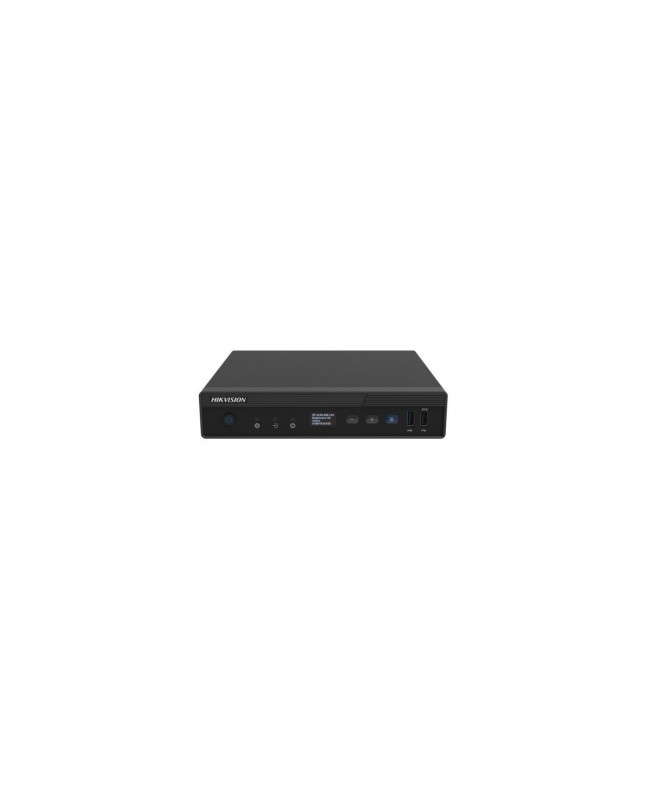

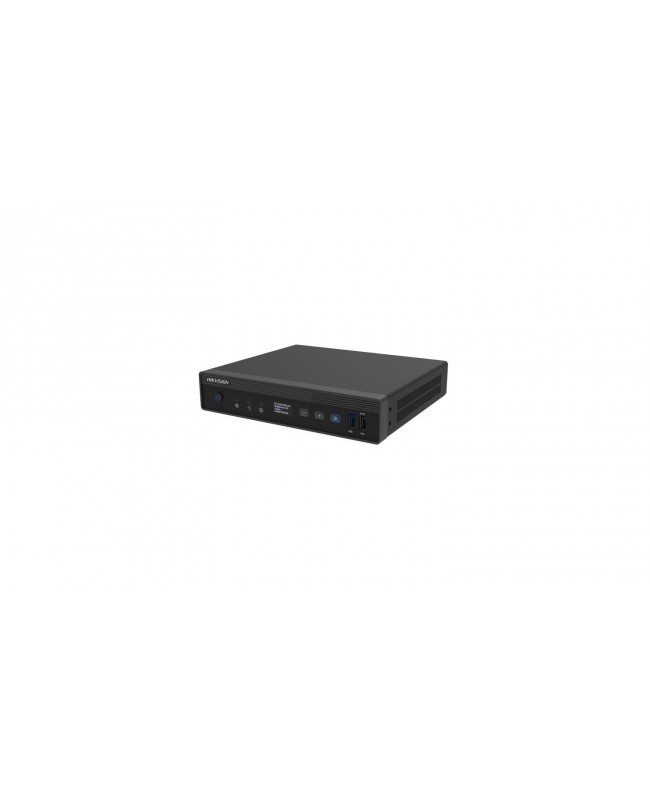

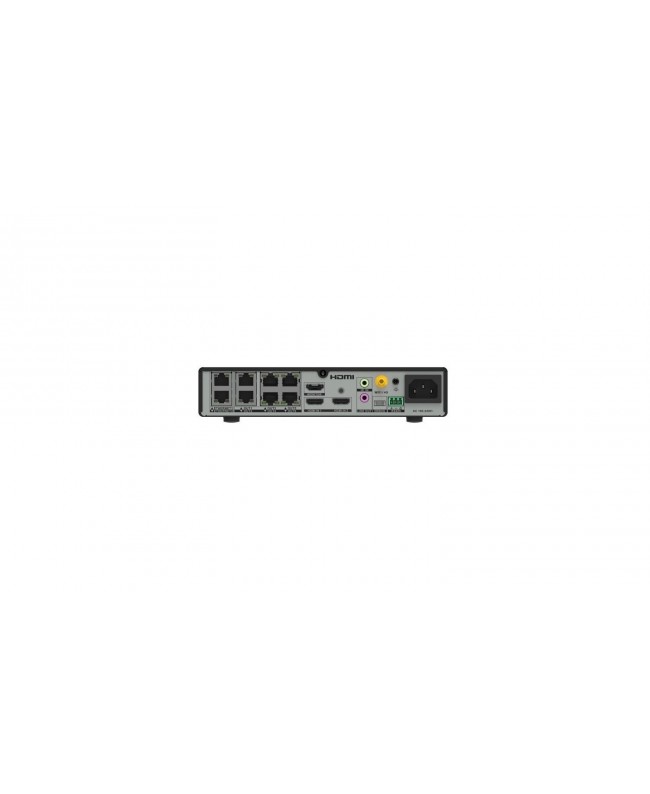

Hikvision Ledwall Controller 1U 6-Port 3-in-1DATA OUT

LED Controller 6 Ports 3-in-1 General Features:128 x 64 color OLED screen (non-touch), for device status monitoring and simplified maintenance.

1U rackmount chassis with halved width and industrial design.

Front buttons for brightness adjustment and other parameters.

Front indicators for power, signal access and operational status.

Supports 2 channels of HDMI 1.4 video input with resolution up to 1920 x 1200 at 60 Hz.

Supports automatic frame rate adjustment from 25 Hz to 60 Hz for image collection.

• Processing Performance:Output Channels:6

• Maximum carrying capacity: 3.9 MP
• Maximum width: 32,760 pixels
• Maximum height: 5,120 pixels
• Maximum capacity per network port: 0.65 MP
• Check system parameters: operating status, memory, CPU usage, device temperature and network ports.
• Brightness control: adjustable from 1 to 100 (level-by-level white balance).
• Frame rate: from 25 Hz to 60
• Hz. Gray levels: 256.
• Display colors: 16
• MP. Processing depth: 8 bits.
• Image scaling: supported.
• DS-DT60P-02HI06NO. Chassis: 1U height, half width.
• LED controller. Average power consumption: max. 16.5 W. Number of power interfaces: 1.
• Power supply specifications: 100-240 VAC, 50/60
• Open windows: 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window.
• Layers per device: 7.
• Scenes supported: 10.
• Background images: 1.
• Background resolution: Min. 640 x 480, Max. 1920 x 1200.
• JPG/JPEG. Subtitles: 1.
• Subtitle width: 32,760 px.
• Subtitle fonts: Supports Xiaomi fonts and custom fonts.
• Working temperature: -10°
• Storage humidity: 10% ~ 90%.
• Working humidity: 10% ~ 90%.
• Storage temperature: -10°
• Net weight: 1.08 kg (2.38 lb).
• Gross weight: 1.67 kg (3.68 lb). Dimensions (W x H x D): 210 mm x 42 mm x 180 mm (8.26 x 1.65 x 7.08).
• Package Contents: 1 x AC power cord. 1 x Connection bracket. 1 x Mounting bracket. 1 x Phoenix green RS-485 connector for central control device. 1 x Regulatory compliance and safety manual. 1 x Bar antenna. 1 x
• Number of interfaces: 3.
• Interface type: 2 HDMI 1.4 + 1 Android integrated.
• Number of interfaces: 3.
• Interface type: 2 HDMI 1.4 + 1 Android integrated. Maximum HDMI 1.4 resolution: 1080p. HDMI 1.4 resolution: -
• Maximum: 1920 x 1200 at 60 Hz. -
• Maximum width: 320~3840 px (alignment: 2). -
• Maximum height: 180 ~ 3840 px (alignment: 1). - HDCP 1.4 support (interlaced inputs not supported).
• Processing depth: 8 bits.
• Sampling format: -
• RGB: 444. -
• YUV: 444. -
• YUV: 422.
• Video Outputs: Maximum output resolution: 3.9 MP. Video output interface: RJ-45. Load capacity per LED: -
• Single port: 650,000 px. -
• Width: 320~32,760 px (alignment: 2). -
• Height: 64 ~ 5,120 px (alignment: 1). Number of load interfaces
• LEDS: 6.
• Number of interfaces: 1.
• Interface type: HDMI 1.4.
• Number of interfaces: 1.
• Interface type: 3.5 mm audio output.
• Operating system: Android 12.
• RAM memory: 4
• GB. Storage memory: 32
• GB. CPU: 4-core 64-bit ARM Cortex-A55 2.0
• Wi-Fi: 2.4
• GHz. Bluetooth: Bluetooth 4.0.
• Antenna: 1 x bar antenna.
• Remote control: Supports remote control
• Screen: OLED 128 x 64 px.
• USB ports: 1 x USB 2.0 + 1 x USB 3.0.
• Buttons: - +: Increase brightness. - - -: Decreases brightness. -
• Source: Changes signal source.
• LED indicators: -
• Active: The device is in operation. -
• Source: Received signal. -
• Error: Error in operation.
• Power switch: -
• On: Device on. -
• Off: Device off or not started.
• Network ports: 2 x Ethernet 10/100/1000 Mbps (RJ-45). - External network connection and multi-device cascade management.
• IR input: 1 x 3.5 mm connector (supports remote control
• IR). Serial interface: - 1 x Serial debug port (4-pin). - 1 x RS-485 port for central control (green connector
• Phoenix). Baud rate: 115200, 8-bit data.
