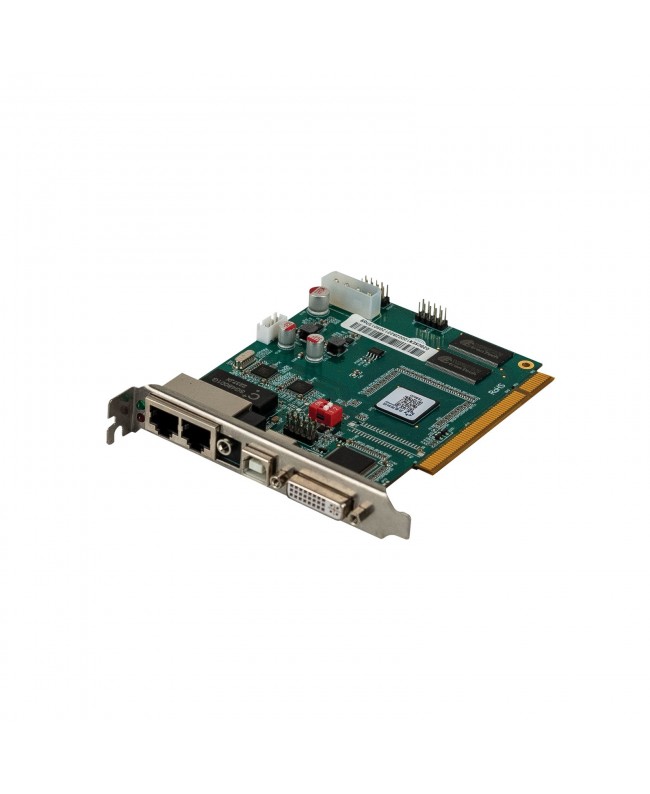

LINSN TS802 Sender Card

The LINSN TS-802 is a PCI LED sending card for controlling LED displays of up to 1.310.720 pixels. It supports video input resolutions of up to 2048x1152 and output resolutions of up to 2048x640 through its two RJ45 output ports. It can be daisy chained to up to 4 cards in total for higher output resolutions (up to 4096x1152). The screen resolution can be set up without constrictions to accommodate non-conventional display setups.

The TS-802 supports refresh frequencies between 10 and 3,000 Hz and 10-bit colour, resulting in vivid images with more than 1 billion colours. It also supports the transmission of audio data over the RJ45 cable. The configuration is easily taken care of via USB by means of software (LEDStudio V9.0 or higher). DVI-DVI and USB-A to USB-B cables are included.

• DVI video signal input up to 2048x1152
• Control up to 1.310.720 pixels
• 2X RJ45 output
• PCI slot
• Daisy chainable for output resolutions up to 4096x1152
