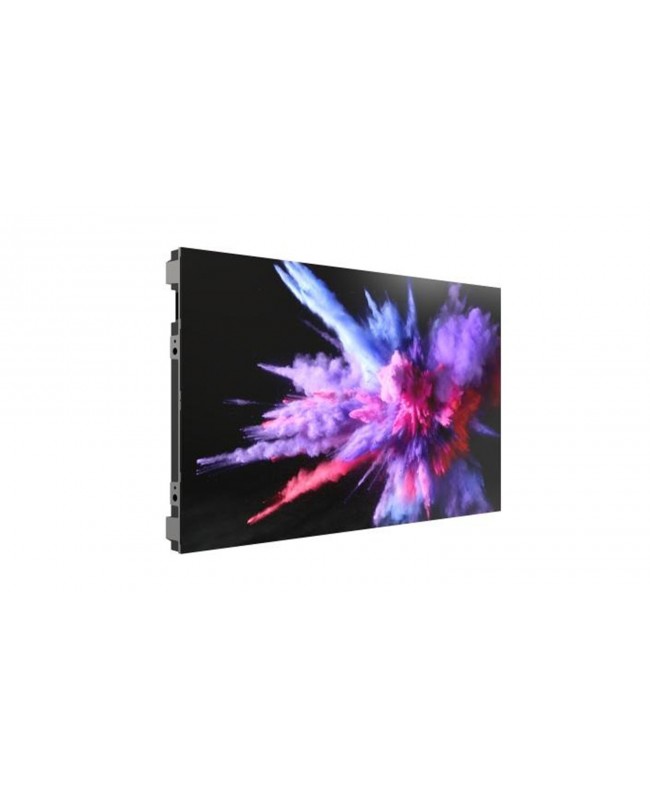

Hikvision Ledwall Ultra Series - P0.9 GOB Indoor- SET of 4 Pieces LED Walls Indoor
  • New

Hikvision Ledwall Ultra Series - P0.9 GOB Indoor- SET of 4 Pieces

€1,740.00
Tax included

Ledwall Ultra Series - P0.9 GOB Indoor- SET OF 4 Pieces

Out of Stock

Free shipping

Compare

wishlist

Hikvision Ledwall Ultra Series - P0.9 GOB Indoor- SET of 4 Pieces



  • Note: module and cabinet structure must be ordered separately. MODEL
  • DS-D4009AW-2FQ Product Type: Indoor fine pixel color LED display
  • CABINET Pixel Configuration: SMD Triad LED (with glue)
  • Pixel Pitch: 0.9375 mm
  • Pixel Pitch Category: P0.9
  • Pixel Density: 1 137 777 dots/㎡
  • Module Composition: 2 x 2 Dimensions (W x H x D): 600 mm x 337.5 mm x 29.5 mm (23.622 x 13.287 x 1.161)
  • Resolution: 640 x 360
  • Area: 0.2025 ㎡
  • Weight: 3.4kg
  • Cabinet Material: Die-cast aluminum
  • Maintenance Method: Front maintenance for all components
  • MODULE Dimensions: 300 mm x 168.75 mm
  • Module Resolution: 320 x 160 DISPLAY
  • Color Temperature: 3000 - 10000 K adjustable
  • Angle of View: 160° (H) / 160° (V)
  • Contrast Ratio: 5000 : 1
  • Color Uniformity: max. +- 0.003
  • Cx,Cy Brightness Uniformity: min. 97 % PERFORMANCE
  • OF PROCESSING Driving Method: Constant Current Driving
  • Frame Rate: 60 Hz
  • Refresh Rate: 3840 Hz
  • Gray Level: 16 bit
  • POWER CONSUMPTION Maximum Power Consumption: max. 575 W/㎡ (800 nits)
  • Average Power Consumption: max. 190 W/㎡
  • Input Voltage: 100 - 240 VAC +- 10 % ENVIRONMENT
  • WORKING Temperature: -10 °C to 40 °C (14 °F to 104 °F)
  • Working Humidity: 10 % to 60 % RH (non-condensing)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Storage Humidity: 10 % to 85 % RH (non-condensing) GENERAL Packing Dimensions (W x H x D): 4-in-1 Module: 443 x 360 x 52 mm 5-in-1 Structure: 708 x 393 x 433 mm
  • Packing List: Compliance and safety manual x 1. connecting screws, LED, driver IC, iron plates
  • Gross Weight: 4.5 kg (1 package in 1 box)
  • Net Weight: 3.4 kg MODULAR BRACKET DS-DL116033W 1x1 DS-DL126033W 1x2 DS-DL226033W 2x2

DS-D4009AW-2FQ

Data sheet

Pixel Pitch
0.93 mm
Giorni di elaborazione
2
