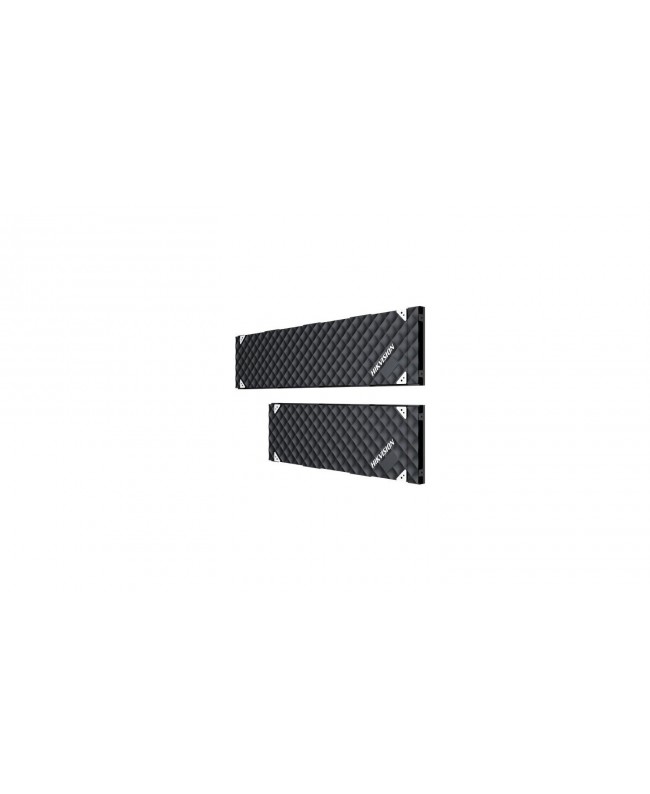

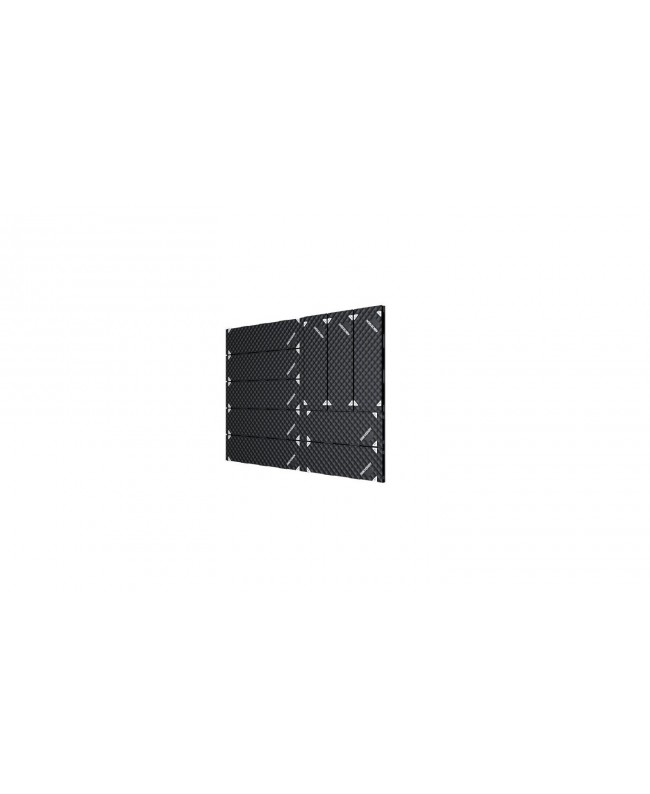

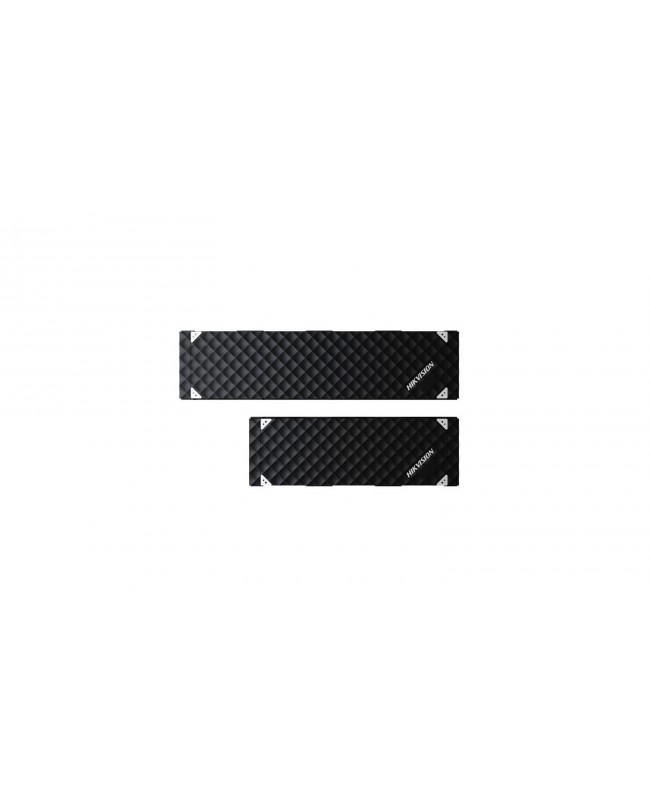

Hikvision Ledwall FLEX Series - P3.9 Indoor



S-D4039CB-1F 750*250/mm LEDWALL FLEX SERIES - P3.9 INDOOR Multiple sizes: Cabinets with different sizes can be used flexibly to meet a variety of flat and three-dimensional modular installations.

  • Lightweight and ultra-thin cabinets: Ultra-thin and lightweight die-cast aluminum cabinets are stylish and practical, facilitating quick delivery.
  • Delicate structure: The 45-degree frame structure with intensive design enhances the possibility of 90-degree installations with creative shapes. It can be used with more curved and creative configurations without the need for customization.
  • Magnetic module: Standard lamp boards with precise positioning structure and strong magnetic adsorption without bottom shell enable efficient installation and convenient maintenance.
  • Rotating installation: Supports 90-degree rotating installation of cabinets and modules and horizontal and vertical stitching of cabinets. No chromatic aberration in viewing angle.
  • Excellent visual effect: Supports high-definition display and color reproduction, high contrast ratio and high refresh rate. Adopts Hikvision's dynamic algorithm for automatic screen control. The image is soft and comfortable to the eye.
  • Intelligent control system: More intelligent with Hikvision control system. Signal backup, intelligent operation and maintenance facilitate convenient operation and control. Supports cloud-based operation and maintenance.
  • High quality: It has obtained TUV-CE/ROHS/CB compliance certifications. The cabinet is safe, reliable, energy-saving and environmentally friendly.
  • CABINET Pixel Configuration: SMD
  • Triad LED Pixel Pitch Category: P3.9
  • Pixel Pitch: 3.906 mm
  • Module Composition: 1 x 3 Dimensions (W x H x D): 750 mm x 250 mm x 50 mm (29,528 x 9,843 x 1,969)
  • Resolution: 192 x 64
  • Area: 0.1875 m²
  • Weight: 4.59 kg (10.12 lb)
  • Pixel Density: 65536 dots/m²
  • Lamp Board Housing: With Housing
  • Cabinet Material: Die-cast aluminum
  • Maintenance Method: Front maintenance for all components
  • Cabinet Flatness: 0.1 mm (0.00039)
  • Front Protection Level: IP60 DISPLAY
  • Color Temperature: Adjustable from 3000 K to 10000 K
  • Viewing Angle: Horizontal 160°, Vertical 160°
  • Contrast Ratio: min. 5000:1
  • Color Uniformity: max. +- 0.003
  • Cx，Cy Brightness Uniformity: min. 97％ PERFORMANCE
  • PROCESSING Driving Method: Constant Current Driving
  • Frame Rate: 60 Hz
  • Refresh Rate: Up to 3840 Hz
  • Gray Level: Up to 16 bits
  • Display Colors: 281 trillion
  • POWER SUPPLY Power supply: 110~220 VAC +- 15%
  • Maximum Power Consumption: max. 494
  • W/m² Average Consumption: 165 W/m² ENVIRONMENT
  • WORKING Temperature: -10~40 °C (14 °F ~ 104 °F)
  • Working Humidity: 10%~80%
  • RH Storage Temperature: -20~60 °C (-4 °F ~ 140 °F)
  • Storage Humidity: 10% ~ 80%
  • GENERAL RH Gross Weight: 8.5 kg (Carton, 1 cabinet per box) Gross Weight for 10
  • Cabinet: 86 kg (Carton, 10 cabinets per box) Packaging Dimensions (1 cabinet): 876 mm x 136 mm x 330 mm (34,488 x 5,354 x 12,992) Packaging Dimensions (10 cabinets): 915 mm x 1041 mm x 705 mm (36,023 x 40,984 x 27,755)
  • Lamp Life: 100000 hours
  • Modular Holder: DS-DL117525W 1*1. DS-DL217525W 2*1

DS-D4039CB-1F

Data sheet

Pixel Pitch
3.9 mm
