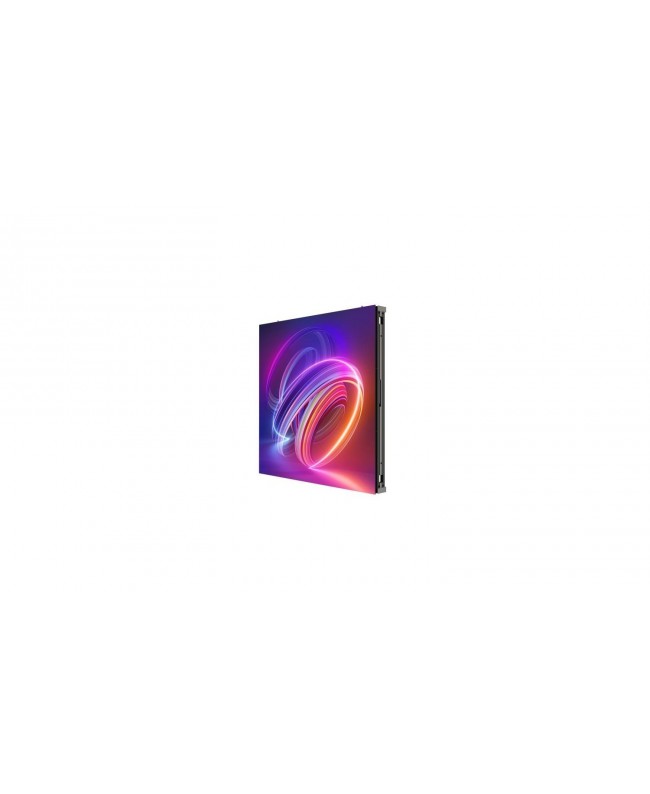

P5.7 Outdoor LED Display Unit Adoption of a power-saving scheme with precise RGB LED IC power distribution, power consumption reduction of more than 40%
Well-designed heat dissipation scheme, capable of handling high-temperature conditions without the need for air conditioning *Use of aircraft connectors for power and signal transmission between cabinets, with excellent sun protection and corrosion resistance properties
Cabinet Pixel Configuration: SMD
Triad LED Pixel Pitch Category: P5.7
Pixel Pitch: 5.71 mm
Module Composition: 3 x 2 Dimensions (W x H x D): 960 mm x 960 mm x 100 mm
Resolution: 168 x 168
Area: 0.9216 m²
Weight: 28 kg
Pixel Density: 30625 dots/m²
Lamp Board Housing: With Housing
Cabinet Material: Aluminum profile
Maintenance Method: Front/Rear Maintenance
IP66 Display Lamp Encapsulation: 2727 (Copper)
Control System: Hikvision
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, Vertical 130°
Contrast Ratio: min. 8000:1
Color Uniformity: max. +- 0.003
Frame Rate: 50/60 Hz
Refresh Rate: Up to 3840 Hz
Gray Level: 14~16 bits adjustable
Power Supply Power: 110~220 VAC +- 15%
Maximum Power Consumption: max. 477 W/m² (6500 nits)
Average Consumption: max. 160 W/m² (6500 nits) Working Environment Working Temperature: -40℃ to 60℃ (-40 ℉ to 140 ℉)
Working Humidity: 10%~95%
Storage Humidity: 10%~95%
Condensation) General Gross Weight: 30.15kg (1 unit per box) Packaging Dimensions (W x H x D): 1140mm x 244mm x 1068mm
