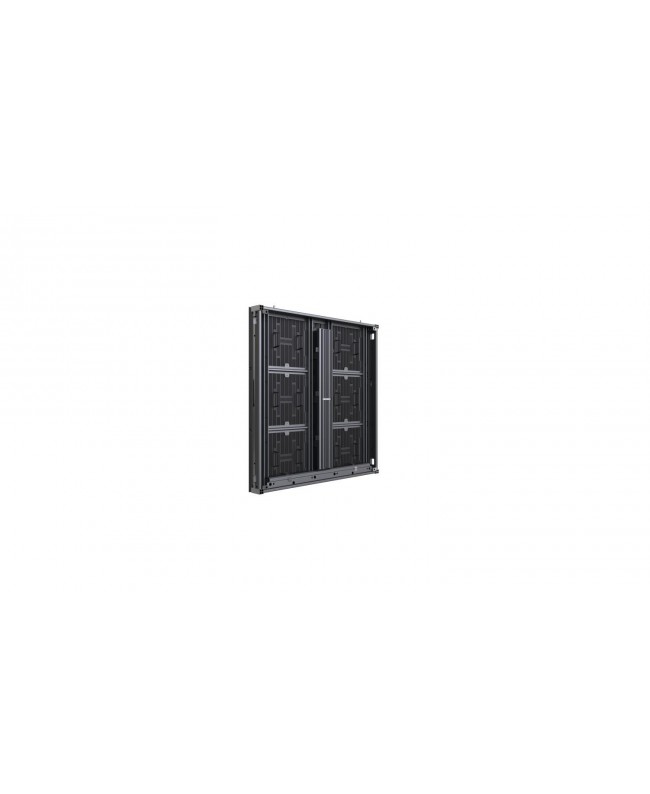

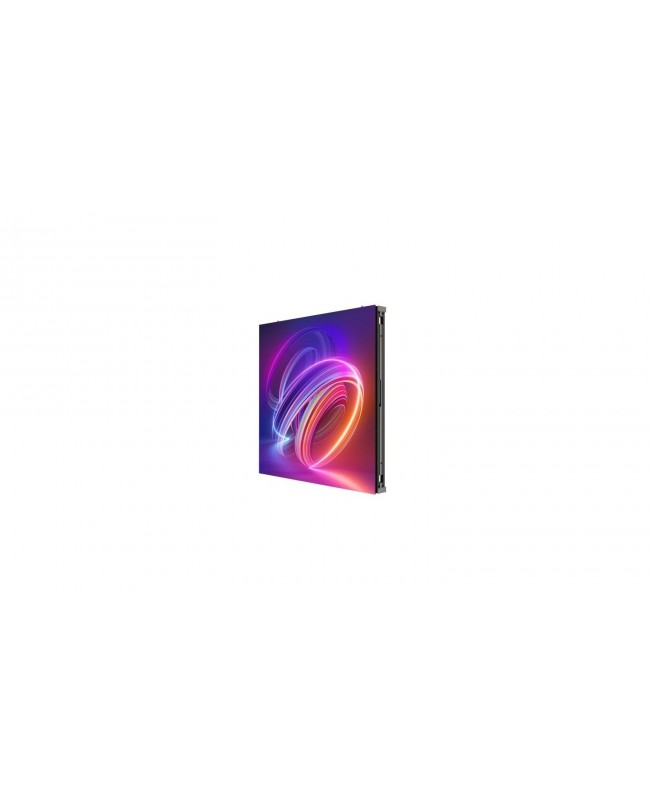

Hikvision Ledwall Lumisquare Series - P6.6 Outdoor LED Walls Outdoor
  • New

Hikvision Ledwall Lumisquare Series - P6.6 Outdoor

€1,765.00
Tax included

Ledwall Lumisquare Series - P6.6 Outdoor

Out of Stock

Free shipping

Compare

wishlist

Hikvision Ledwall Lumisquare Series - P6.6 Outdoor



P6.6 Outdoor LED Display Unit Adopts power-saving scheme: accurate RGB LED IC power distribution, reducing power consumption by more than 40%.

Well-designed heat dissipation scheme: does not need air conditioning to cope with high temperature weather conditions.*Uses aircraft connectors to transmit power and signal between cabinets, with excellent sun protection and corrosion resistance.

  • Aluminum Cabinet: high joint flatness and weight of only 28 kg/unit.
  • Cabinet Pixel Configuration: SMD
  • Triad LED Pixel Pitch Category: P6.6
  • Pixel Pitch: 6.67 mm
  • Module Composition: 3 x 2 Dimensions (W x H x D): 960 mm x 960 mm x 100 mm
  • Resolution: 144 x 144
  • Area: 0.9216 m²
  • Weight: 28 kg
  • Pixel Density: 22,500 dots/m²
  • Lamp Board Housing: With Housing
  • Cabinet Material: Aluminum profile
  • Maintenance Method: Front/Rear Maintenance
  • IP66 Main Material: Encapsulation Lamp 2727 (Copper)
  • Control System: Hikvision Display
  • Color Temperature: Adjustable up to 9300K
  • Viewing Angle: Horizontal 160°, Vertical 130°
  • Contrast Ratio: min. 8000:1
  • Color Uniformity: max. +- 0.003
  • Cx，Cy Brightness Uniformity: min. 97％ Processing Performance Driving Method: Constant Current Driving
  • Frame Frequency: 50/60 Hz
  • Refresh Rate: Up to 3840 Hz
  • Gray Level: Adjustable between 14 and 16 bits
  • Power Supply Power: 110~220 VAC +- 15%
  • Maximum Power Consumption: max. 490 W/m² (6500 nits)
  • Average Consumption: max. 160 W/m² (6500 nits) Working Environment Working Temperature: -40 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
  • Working Humidity: 10%~95% RH (without condensation)
  • Storage Humidity: 10%~95% RH (without condensation)
  • Storage Temperature: -40℃ to 70℃ (-40 ℉ to 158 ℉)
  • General Gross Weight: 30.15 kg / 1 per box Packaging Dimensions (W x H x D): 1140 (W) mm x 244 (H) mm x 1068 (D) mm
  • Lifespan: Lamp 100,000 hours

DS-D4266CO-2APA

Data sheet

Miscellaneous
Suitable for outdoor use
Pixel Pitch
6.6 mm
