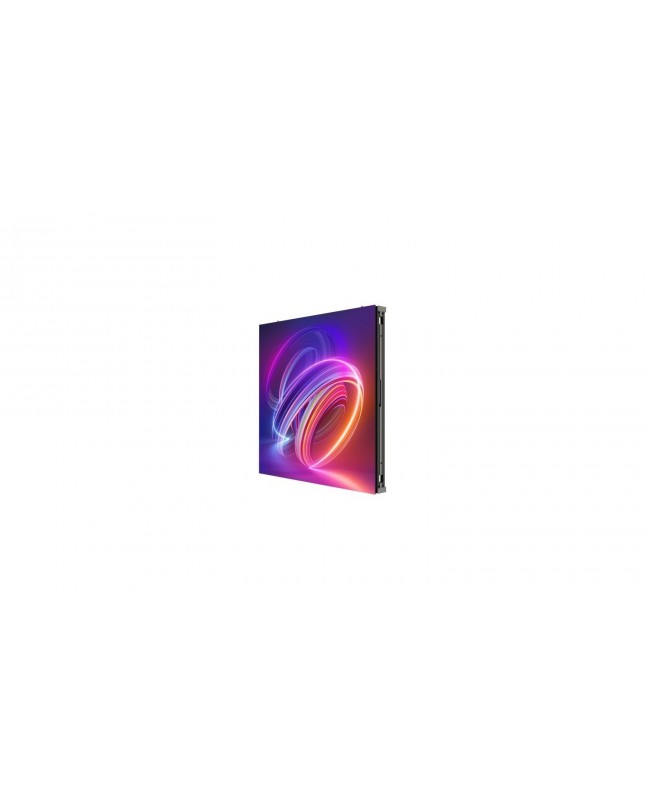

OUTDOOR LED DISPLAY P8 Adopts a power-saving system, with accurate power distribution RGB LED IC power supply, reducing power consumption by more than 40%.
Designed with a well-designed heat dissipation system, enabling it to cope with high temperature conditions without the need for air conditioners.*Uses an aircraft-type connector to transmit power and signal between cabinets, providing excellent sun protection and corrosion resistance.

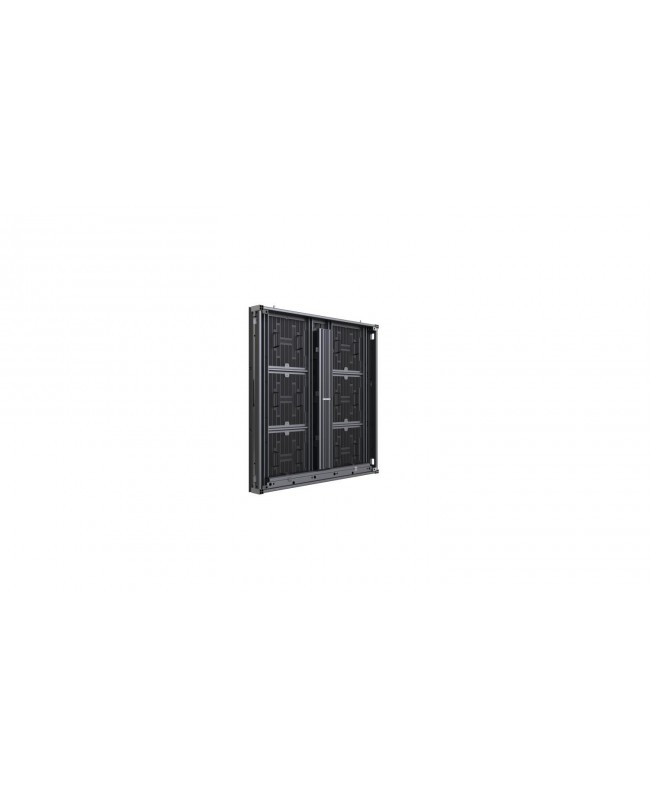

Aluminum cabinet with high assembly flatness, weight of only 28 kg per unit.
CABINET Pixel configuration: SMD Triad LED Pixel pitch category: P8.0
Pixel pitch: 8 mm
Module components: 3 x 2 Dimensions (W x H x D): 960 mm x 960 mm x 100 mm
Resolution: 120 x 120
Area: 0.9216 m²
Weight: 28 kg
Pixel density: 15625 dots/m² Lamp board housing: With housing
Cabinet material: Aluminum profile
Maintenance method: Front/rear maintenance
Control system: Hikvision DISPLAY Brightness in white balance: 7500 nits (peak)
Color temperature: 9300K adjustable
Viewing angle: Horizontal 160°, vertical 130°
Contrast ratio: min. 8000:1
Color uniformity: max. +- 0.003
Cx,Cy Brightness uniformity: min. 97% PERFORMANCE
OF ELABORATION Driving method: Constant current
Frame frequency:50/60 Hz
Refresh rate: Up to 3840 Hz
Gray level: Adjustable from 14 to 16 bits
POWER SUPPLY Power supply: 110~220 VAC +- 15%
Maximum consumption: max. 475 W/m² (6500 nits)
Average consumption: max. 160 W/m² (6500 nits) ENVIRONMENT
WORKING Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working humidity: 10%~95%
Storage temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
GENERAL Gross weight: 30.15 kg/unit Package dimensions (W x H x D): 1140 mm (W) x 244 mm (H) x 1068 mm (D)
