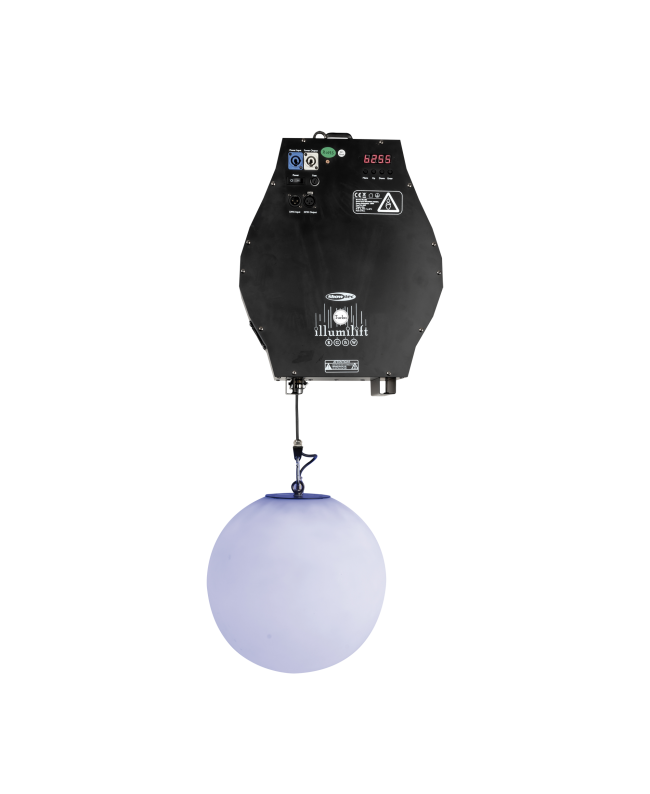

SHOWTEC Illumilift RGBW Turbo 6 m High Speed Hoist / 35 cm LED sphere

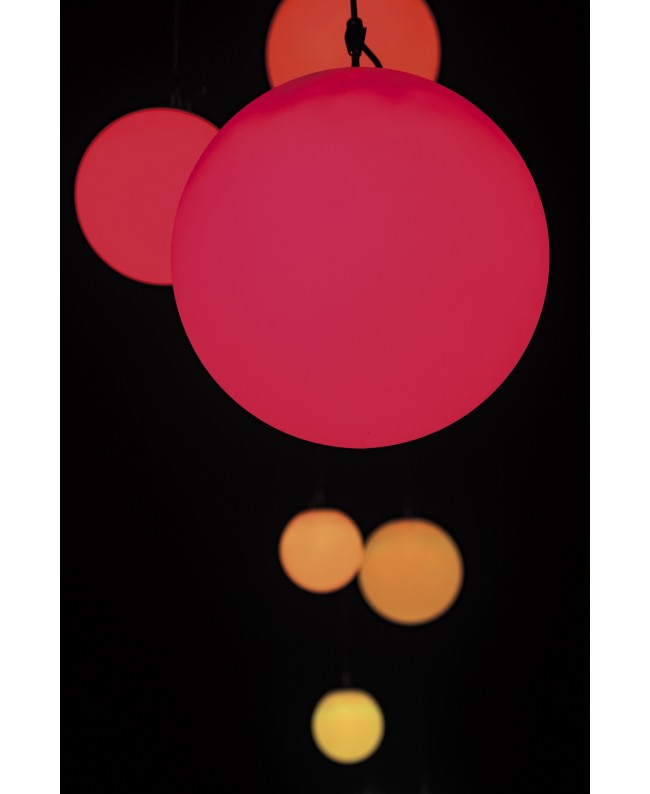

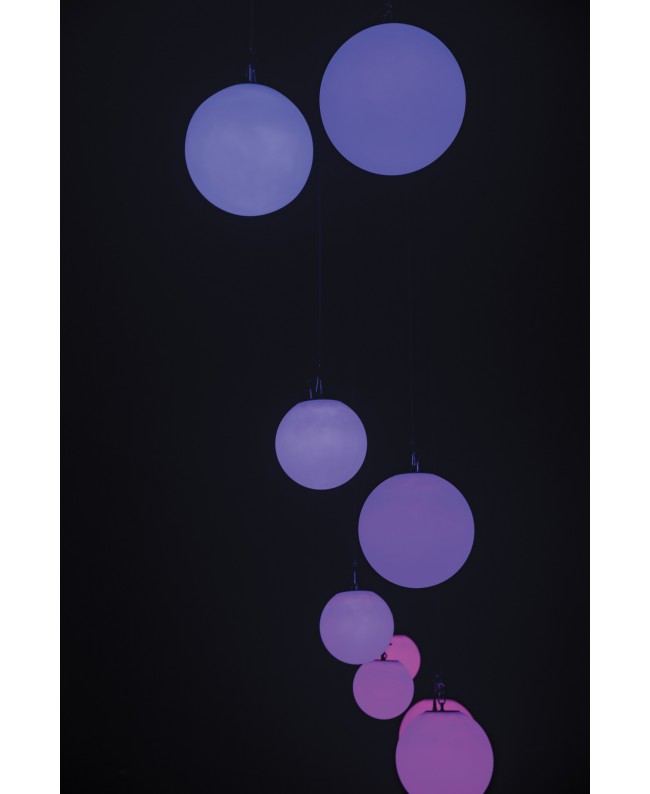

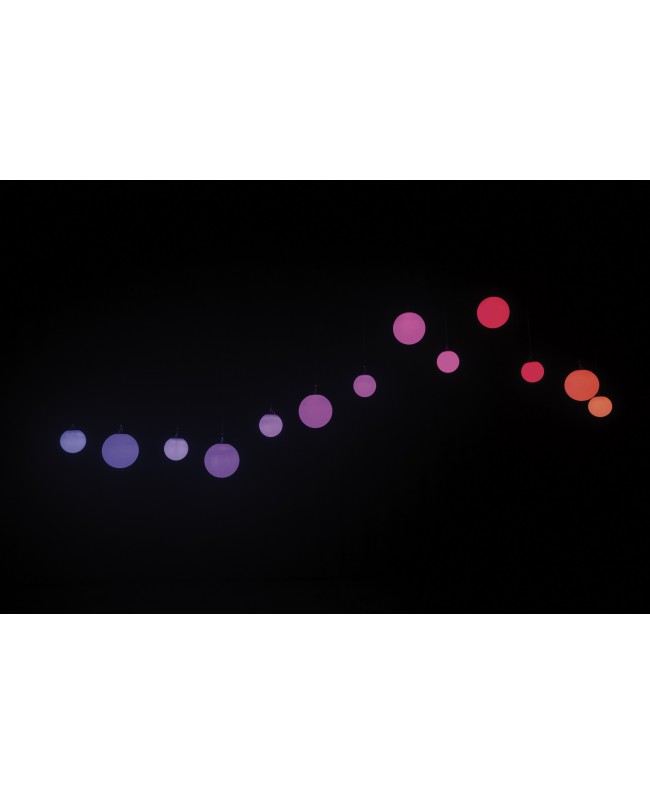

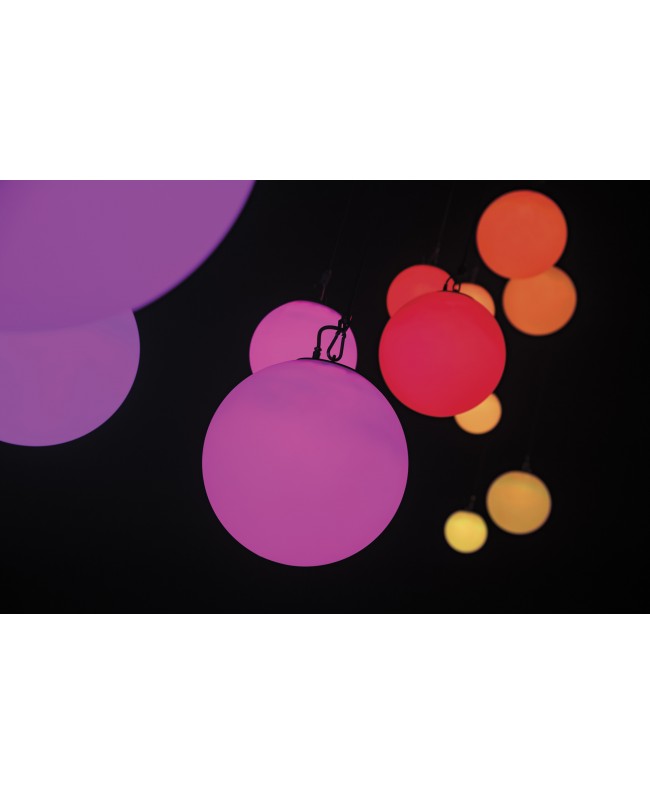

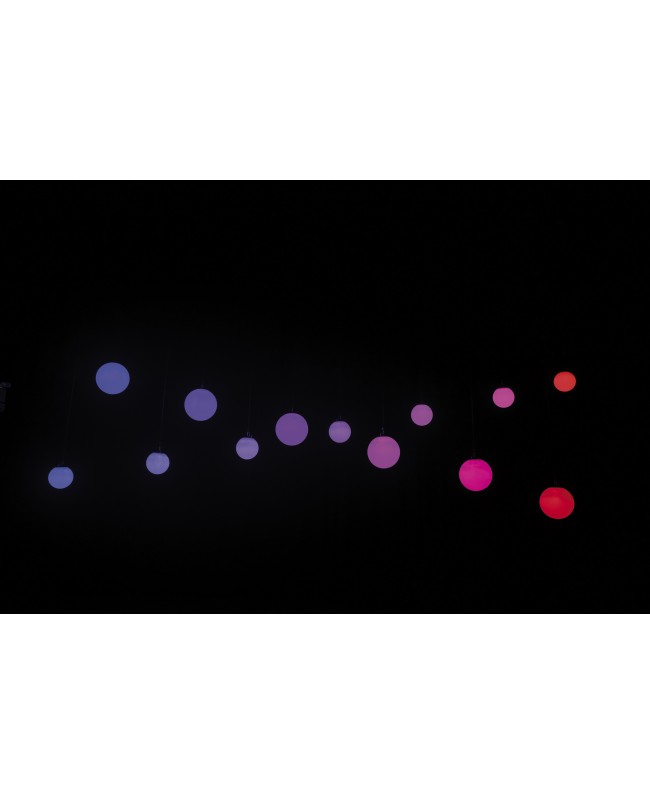

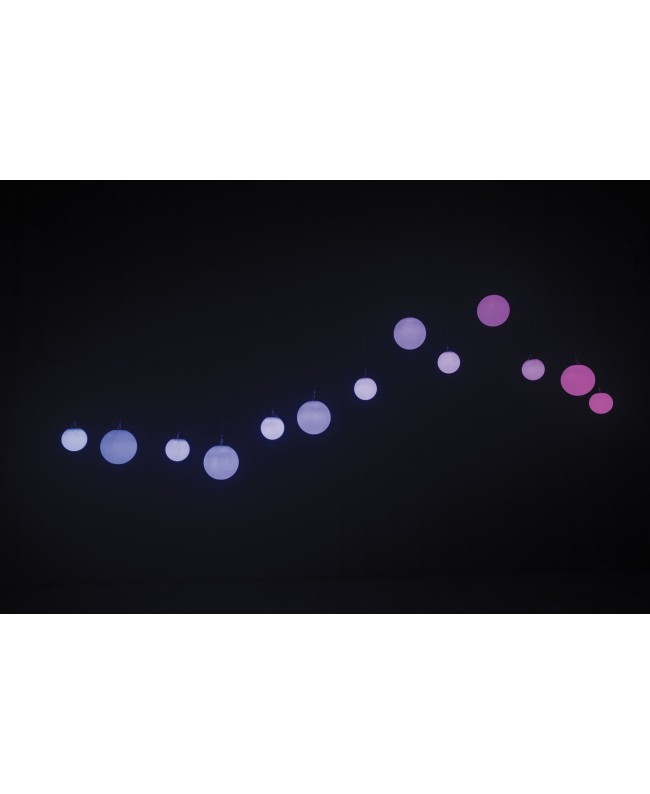

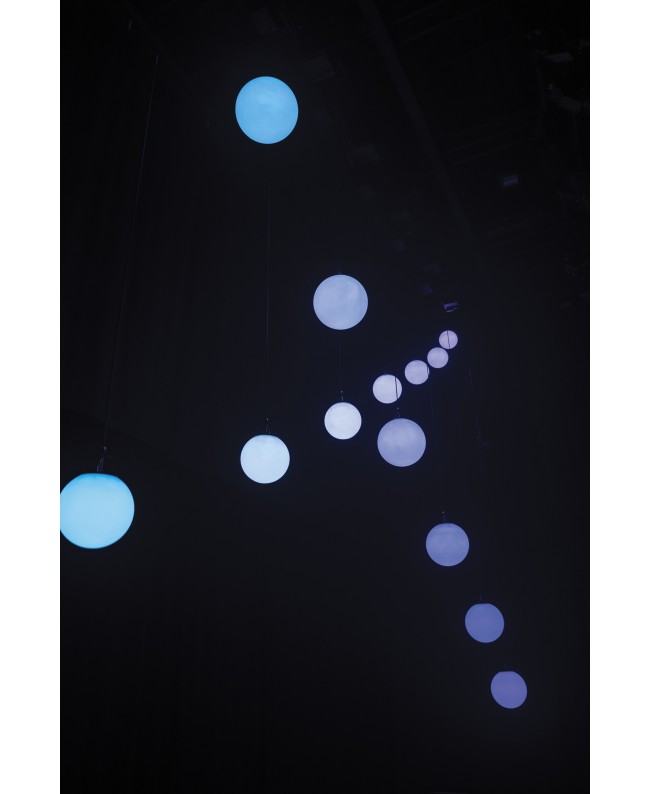

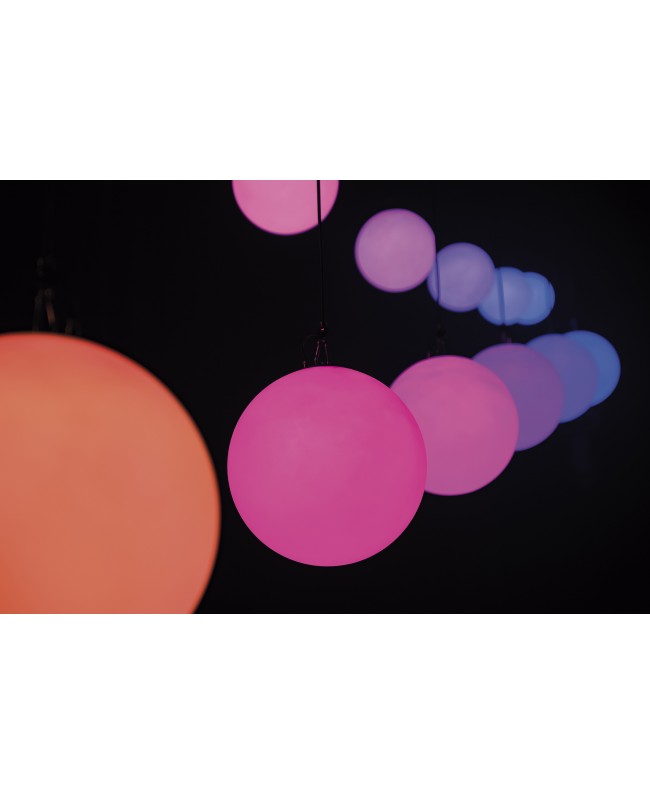

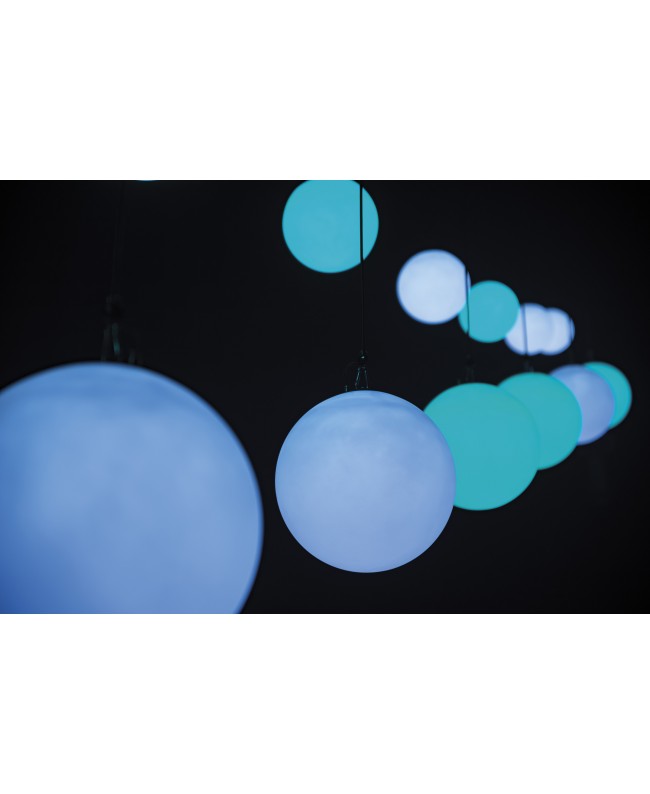

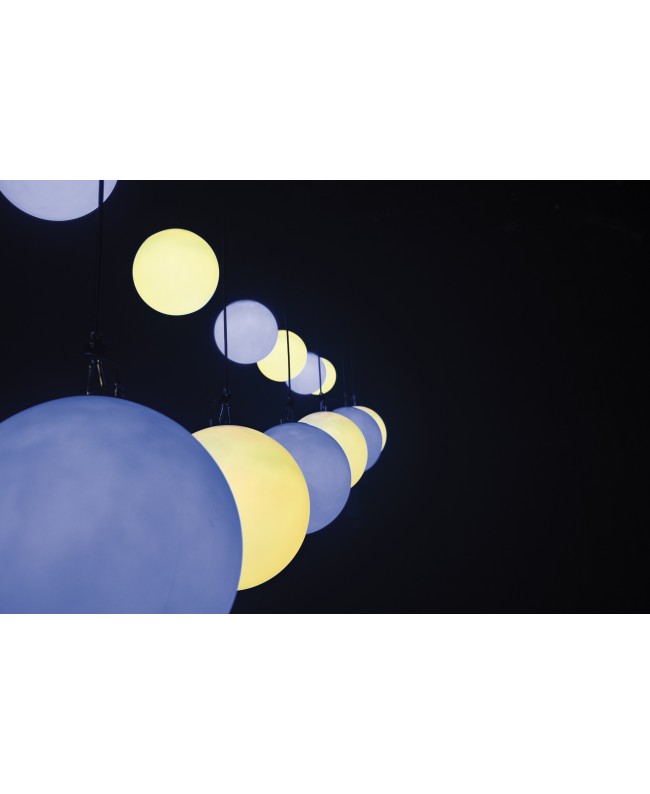

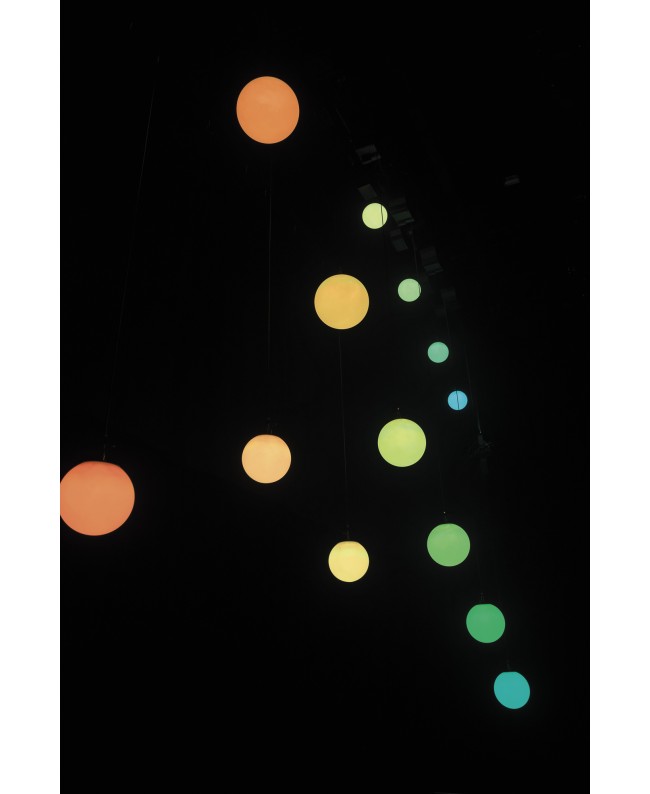

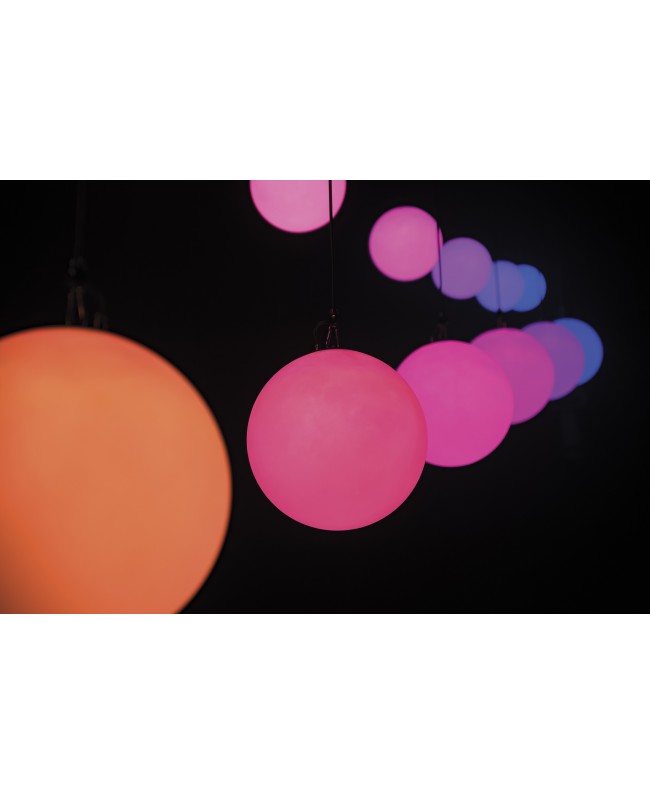

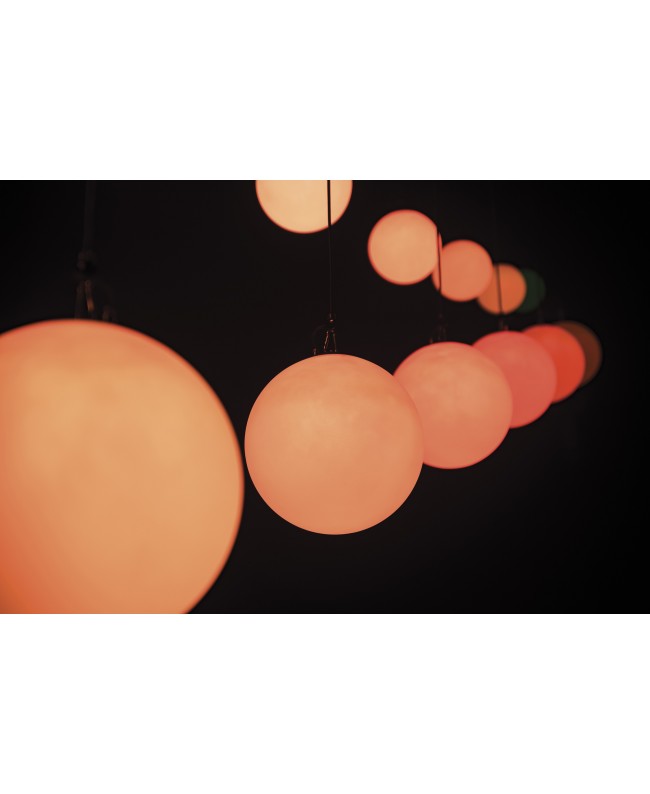

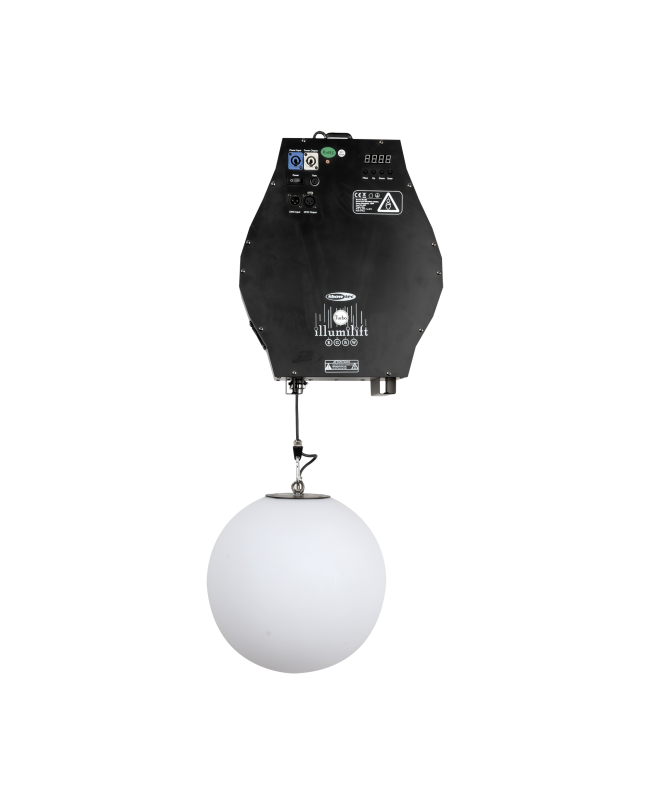

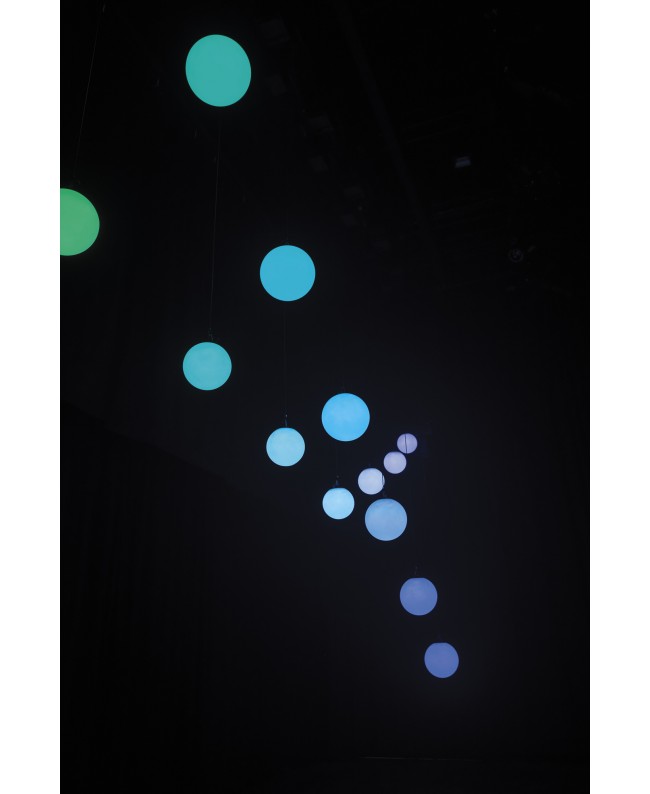

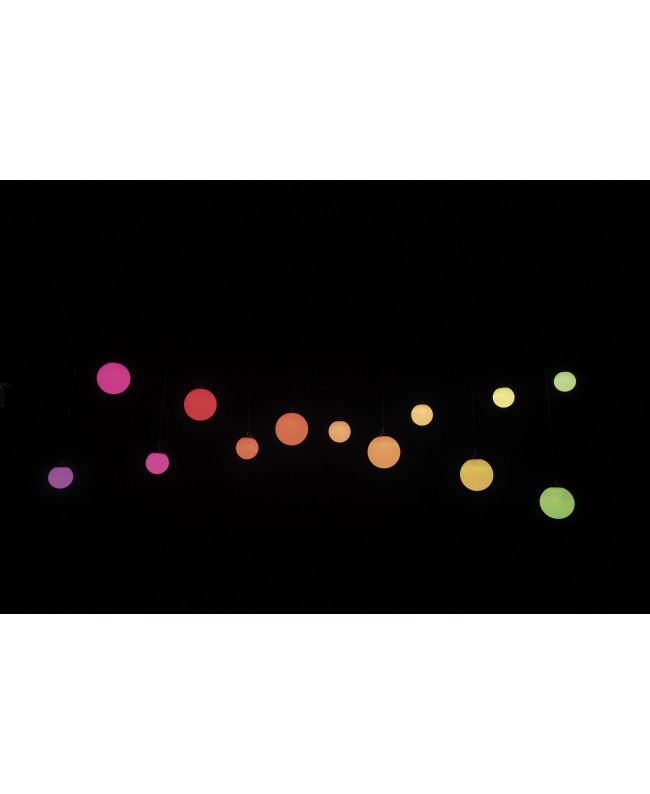

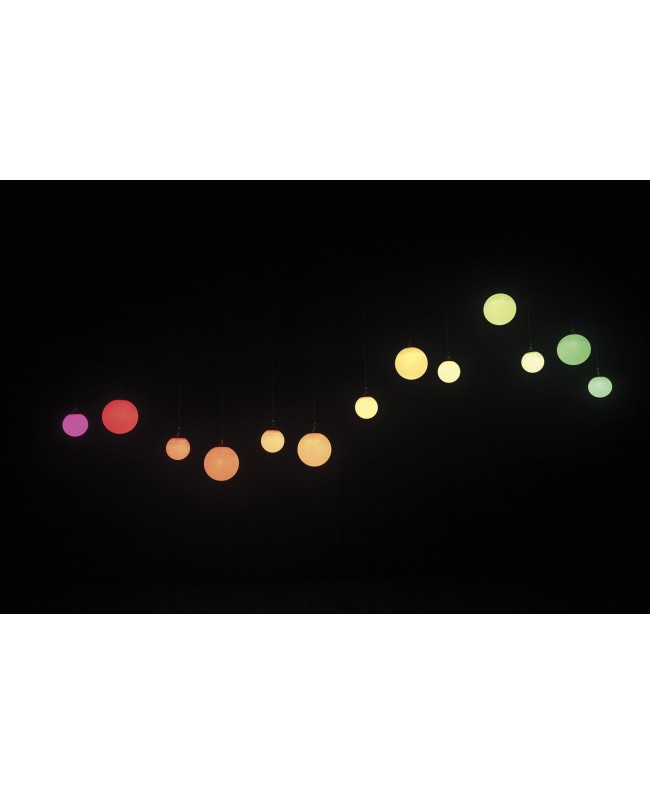

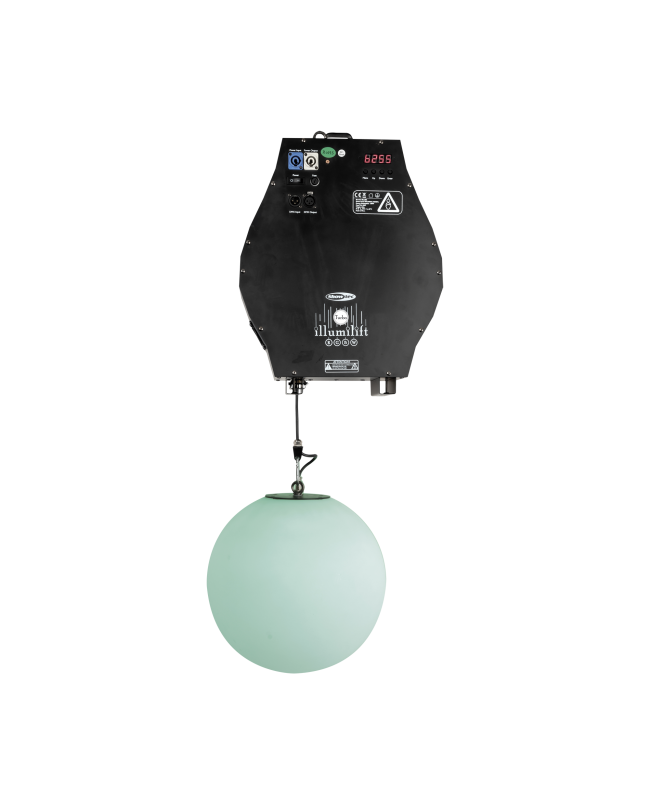

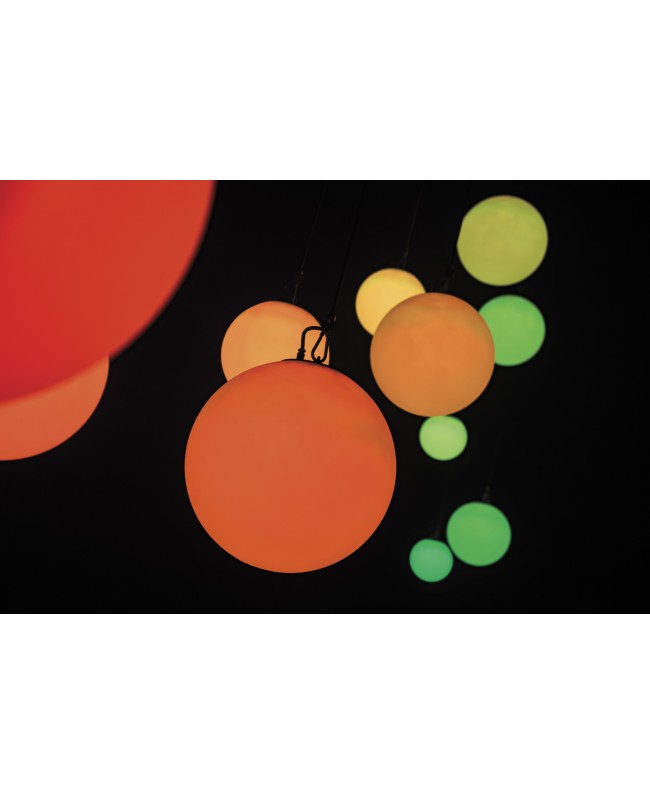

The Showtec Illumilift Turbo adds another dimension to your venue, literally. The Illumilift consists of a high speed 6 metre winch system with a 35 cm RGBW LED sphere. Through DMX512 in basic or advanced mode you can generate full saturated colours with the RGBW module inside the LED sphere. By adding white even soft tones are possible. It's high speed 16-bit lifting motor makes positioning via DMX control very fast and accurate. Both Power and DMX In/Out make these units easy to daisy chain for bigger setups. The two DMX modes include a Safety channel avoiding unexpected movement. For a really awesome effect you can put various Illumilift sets into one setup. And combining it with the optional 25 cm RGBW LED sphere gives ultimate freedom to your Lighting and Designs.

Important: please note that the Illumilift hoist is only meant to be used in combination with the 35 cm or 25 cm LED Sphere.

  • 16-Bit position control
  • Interchangeable LED spheres
  • Lifting speed control
  • Operation safety channel
  • Light Source Type: LED
  • Light Source Power: 18 W
  • LED Colour Type: RGBW
  • Refresh Rate: 19600 Hz
  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz

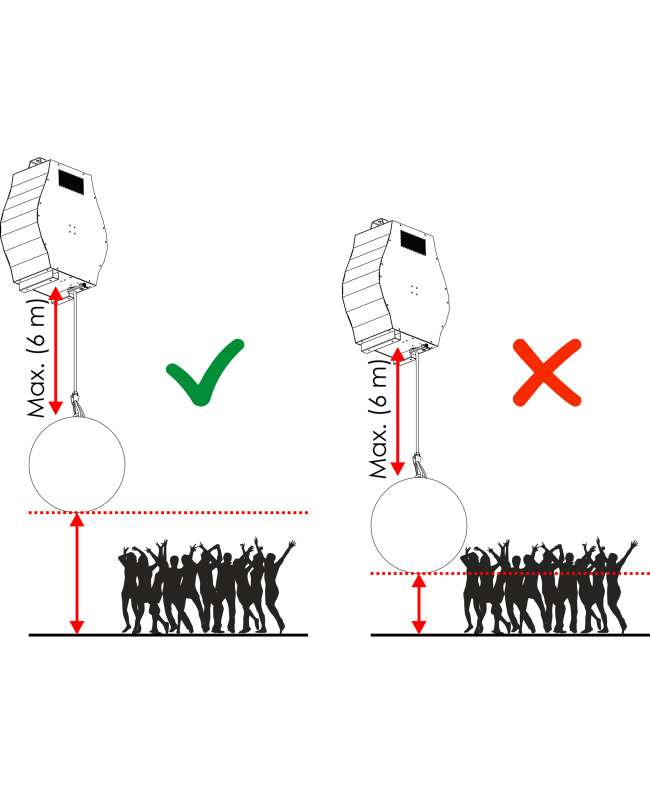

  • Lifting Height: 6 m
  • Lifting Speed: 2.5 m/s
  • Lifting Cable: 5 x 0.5mm²
  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 80 W
  • Power Connector In: Power Pro Blue
  • Power Connector Out: Power Pro Grey
  • DMX Connector: XLR 3P In/Out
  • DMX Connector In: XLR 3P
  • DMX Connector Out: XLR 3P
  • Height (mm): 498 mm
  • Width (mm): 370 mm
  • Depth (mm): 190 mm
  • Weight: 14 kg
  • Maximum Load: 2 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal / Plastic
  • Colour: Black / White
  • Cooling: Axial fan

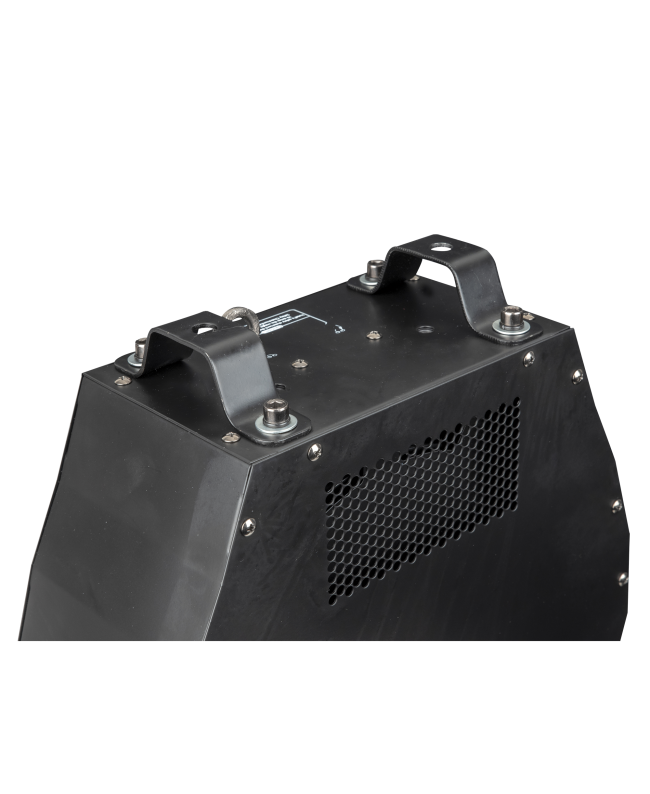

  • Mounting Options: Bracket / Clamp
  • Safety Attachment: Yes
  • Maximum Ambient Temperature: 40 °C
  • Included Cables: Power Pro Cable
  • Included Accessories: 35 cm Led sphere
  • Included Rigging: Bracket
  • Control Mode: DMX / Manual
  • DMX Channels: 6 / 10
  • Protocols: DMX
  • Display: 7-segment / LED
