RCF HDL 38-AS


€6,283.00
Tax included

Active flyable subwoofer module


Qty

In Stock

Delivery

Do You want Your order by Monday, 21/09/2026? Order within 10 hours and 47 minutes

Free shipping


wishlist

RCF HDL 38-AS



FEATURES

  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management

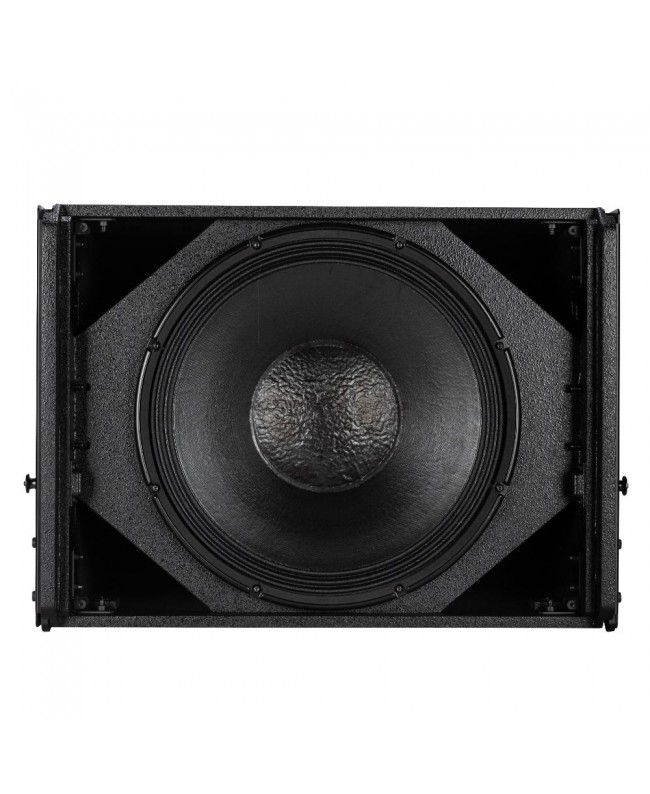

  • 1X18" Neodymium Woofer, 4.0" voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0" voice coil, 18" Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

  • 30 Hz: 140 Hz
  • Woofer: 1 X 18'' neo, 4.0'' v.c

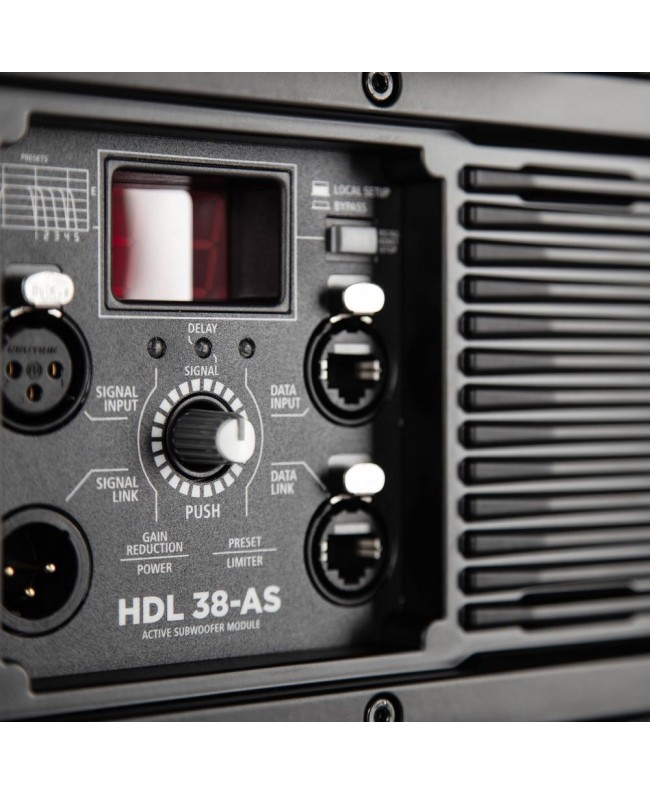

  • INPUT/OUTPUT SECTION: Input signal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 DBu
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Preset selection
  • RDNet: Onboard
  • Total Power: 3200 W Peak, 1600 W RMS
  • Low frequencies: 3200 W Peak, 1600 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • STANDARD COMPLIANCE: Safety agency
  • CE compliant: PHYSICAL SPECIFICATIONS
  • Cabinet/Case Material: Baltic birch plywood
  • Array fittings: 1 X M20

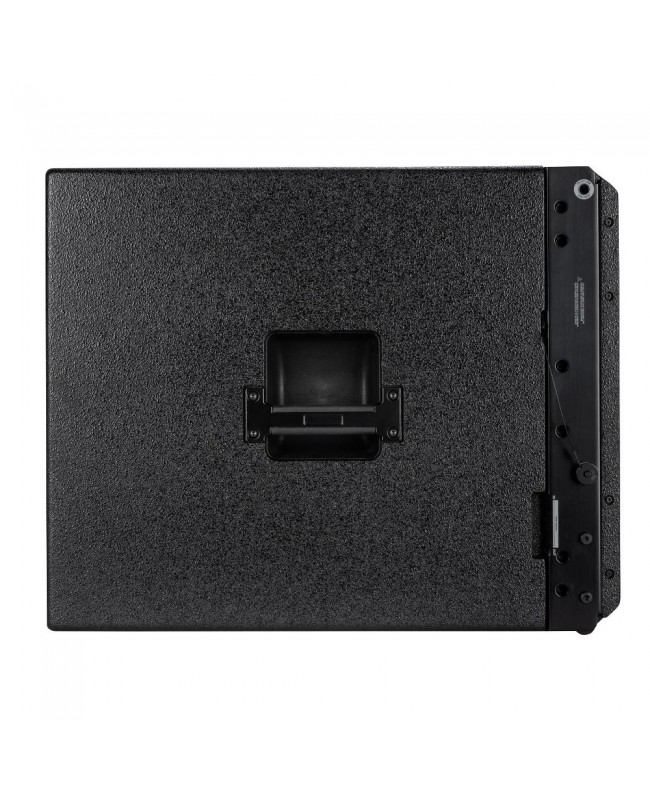

  • Handles: 2 Side
  • Pole mount/Cap: M20 thread
  • Grille: Steel
  • Black, White: RAL 9003
  • Height: 502 mm / 19.76 inches
  • Width: 700 mm / 27.56 inches
  • Depth: 621 mm / 24.45 inches
  • Weight: 48.7 kg / 107.36 lbs
  • Package Height: 550 mm / 21.65 inches
  • Package Width: 670 mm / 26.38 inches
  • Package Depth: 750 mm / 29.53 inches
  • Package Weight: 51 kg / 112.44 lbs

13000580

Data sheet

Woofer inch
18"
Giorni di elaborazione
15
Power (RMS)
over 1000 W

Specific References
