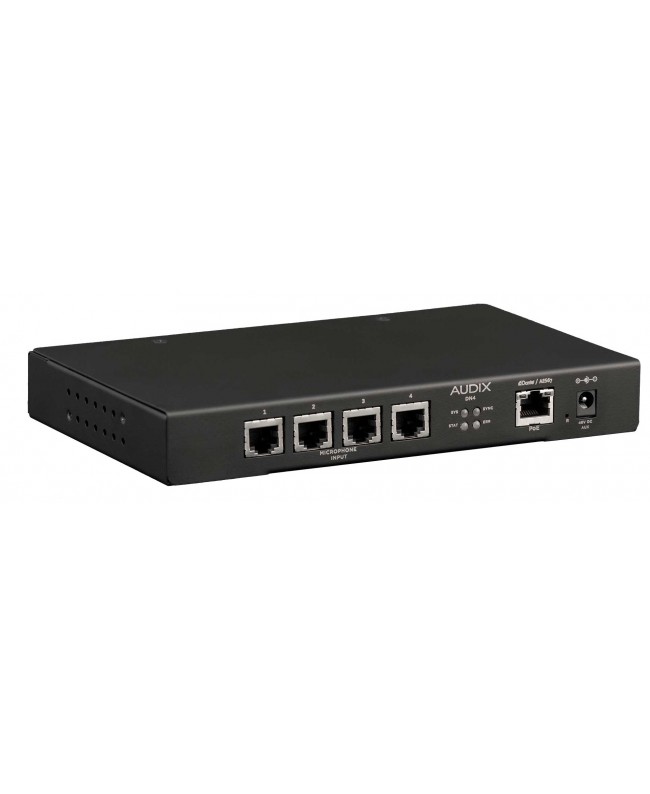

AUDIX DN4

The DN4 microphone interface a key part of Audix Dante. AES67 integrated microphone system, the fast, hassle-free way to transmit Audix audio performance over Ethernet networks. High-quality audio and all microphone functions, including onoff contact closure and LED status indicators, are available via a single CAT5 CAT7 cable with RJ45 connections on both the interface and microphone. This simple configuration eliminates wiring errors, speeds up installation and reduces costs.

The DN4 features four RJ45 inputs for single-element pickup microphones equipped with Audix RJ45 and two 5 V logic outputs per port, with the ability to provide network-connected DSP-controlled LEDs and one logic input per port for pushbuttons. High-pass and low-pass filter settings are available on each audio channel, as well as eight selectable gain levels, with all settings configurable via software
