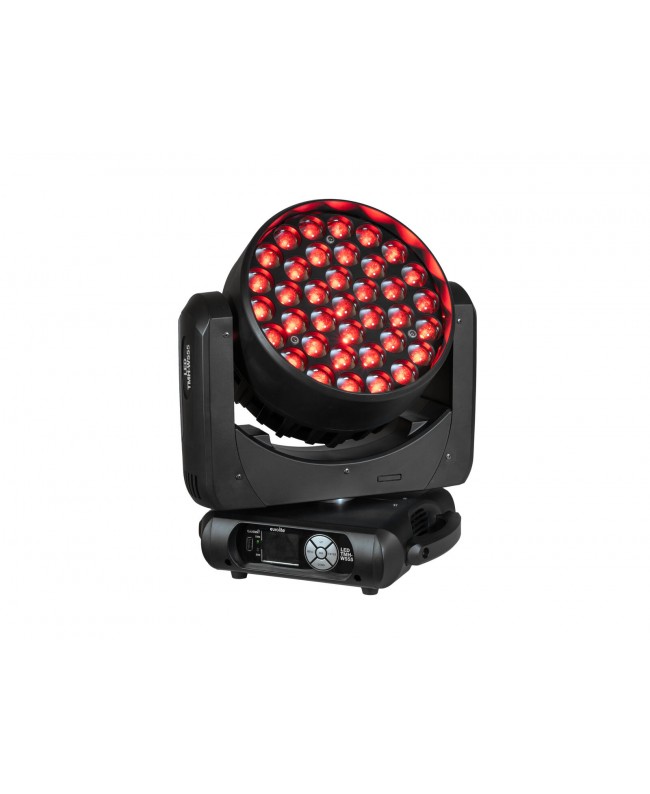

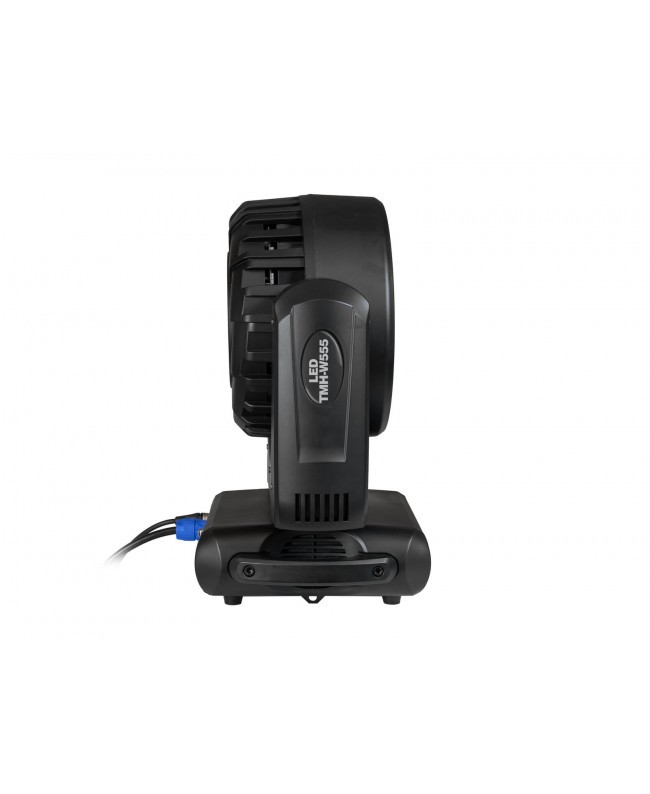

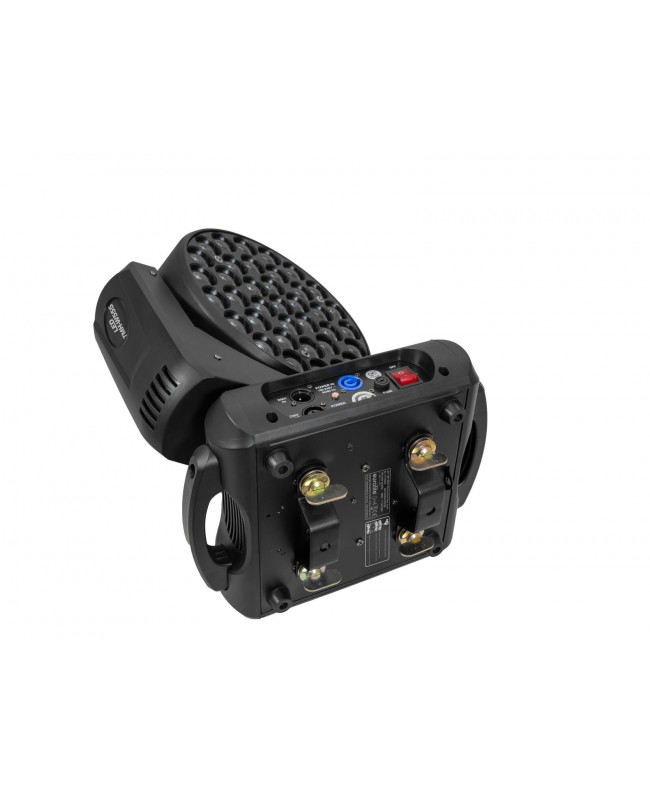

Eurolite LED TMH-W555 Moving Head Wash Zoom

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 490 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 4 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 37 X 15 W 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 205° Exact positioning (16 bit resolution)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution)
• Flash rate: : 1 - 21 Hz
• Equipment: : Zoom motor driven
• DMX channels: : 24; 36; 48
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head

Cooling fan at the base

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 490 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 4 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 37 X 15 W 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 205° Exact positioning (16 bit resolution)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution)
• Flash rate: : 1 - 21 Hz
• Equipment: : Zoom motor driven
• DMX channels: : 24; 36; 48
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head
• Control: : DMX; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in: : Light Captain
• Projection: : Flicker-free
• PWM frequency: : 2900 Hz
• Beam angle: : 1° - 38°
• Beam angle (1/2 peak): : 1 - 20°
• Beam angle (1/10 peak): : 8 - 38°
• Color temperature: : 2500K - 10000K adjustable
• Illuminance in Lux (lx): : Narrow red 1 m: 14703 lx, 3 m: 6338 lx, 6 m: 1581 lx
• Narrow green (G) 1 m: 36582 Lx, 3 m: 14313 lx, 6 m: 3581 lx
• Narrow blue (B) 1 m: 4622 Lx, 3 m: 2444 lx, 6 m: 666 lx
• Narrow cold white (CW) 1 m: 47065 Lx, 3 m: 15572 lx, 6 m: 3872 lx
• Narrow all 3 m: 35914 Lx, 6 m: 9025 lx
• Wide red 1 m: 4769 Lx, 3 m: 624 lx, 6 m: 165 lx
• Wide green (G) 1 m: 10949 Lx, 3 m: 1431 lx, 6 m: 386 lx
• Wide blue (B) 1 m: 2021 Lx, 3 m: 274 lx, 6 m: 77 lx
• Wide cold white (CW) 1 m: 11357 Lx, 3 m: 1505 lx, 6 m: 397 lx
• Wide all 1 m: 27092 Lx, 3 m: 3575 lx, 6 m: 956 lx
• Housing color: : Black
• Display type: : Multicolor LCD display
• Dimensions: : Width: 39.0 cm
• Depth: 26.5 cm
• Height: 47.5 cm
• Weight: : 14.30 Kg
• Noise classification: : Class 2 (slight noise)
• Photobiological safety: : Risk Group 0
