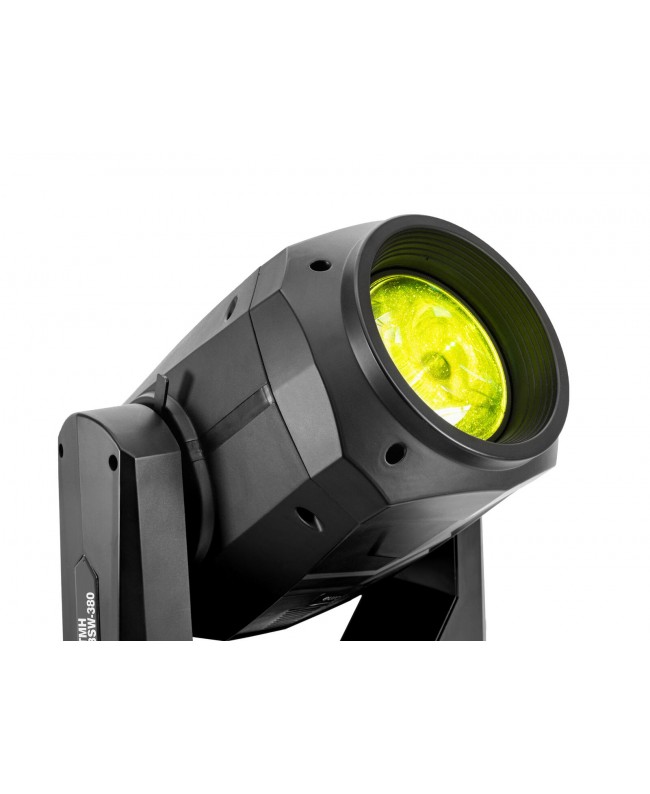

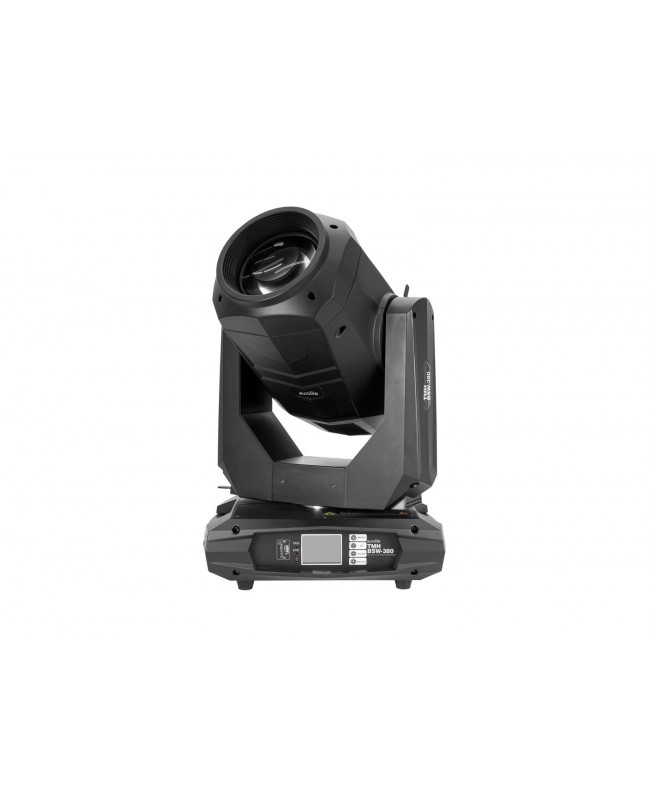

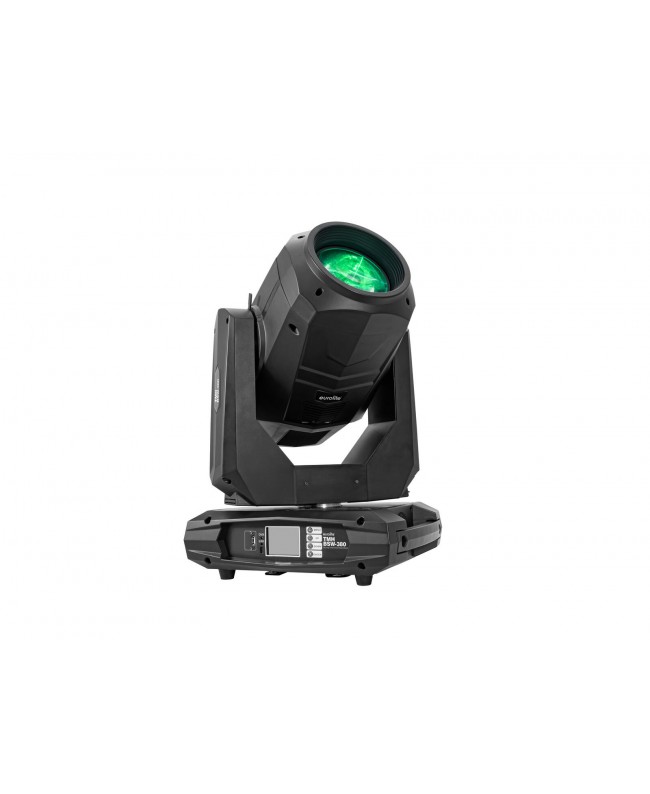

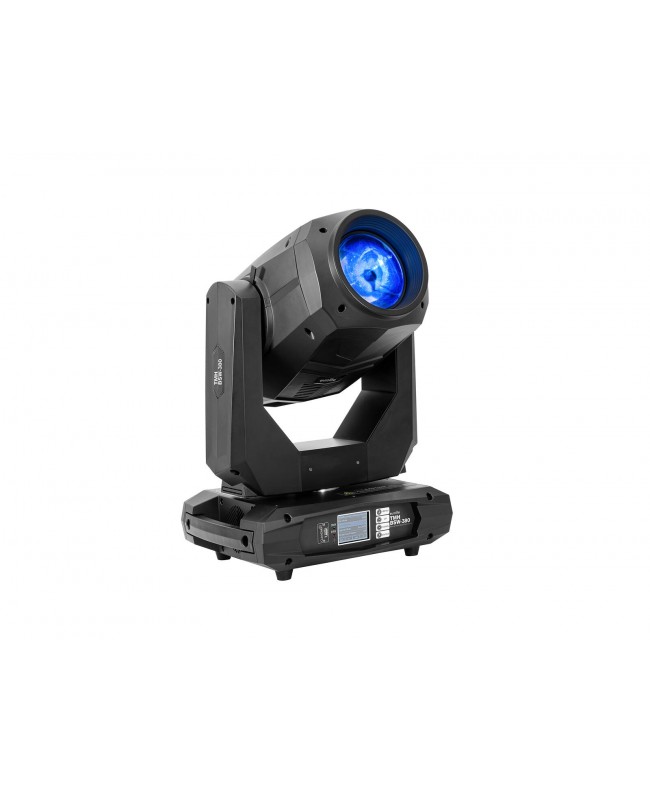

Eurolite TMH BSW-380 Moving-Head Beam/Spot/Wash Movinglights Beam
  • New

Eurolite TMH BSW-380 Moving-Head Beam/Spot/Wash

€1,479.00
Tax included

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom

Out of Stock

Free shipping

Compare

wishlist

Eurolite TMH BSW-380 Moving-Head Beam/Spot/Wash



Moving Head Beam/Spot/Wash The BSW in the name stands for Beam, Spot and Washlight, a true all-rounder. The -380 indicates the power class; an extremely bright Osram Sirius 371-watt discharge lamp is installed. EXTENSIVE EQUIPMENT Also in terms of equipment, this all-around moving head has been designed with the utmost care. For example, 3 gobo wheels have been installed. The first gobo wheel offers 11 static gobos, the second 7 rotating gobos, and the third 4 static gobos and an area that enables animations. The latter creates movement in the projection, which alone, but also in combination with the other gobos, provides for eye-catching effects. For example, in combination with the textured glass rotating gobo and a prism, a sensational water effect can be generated. But also a kind of fire effect and many other moving images can be realized. The TMH BSW-380 has 2 rotating prisms. The first prism splits the image into 8 images, the second into 16. In addition, the moving head offers a motorized zoom that ranges from 4° to 35°.

DIFFERENT MODES

In beam mode, it achieves a hard, concentrated beam with a deliberate hotspot. For further shaping of the light beam, the static gobo wheel is available, for dynamics one can use the rotating prisms. As soon as the second or third gobo wheel is used, the spotlight automatically switches to spot mode. In this mode, the images are then absolutely even and clean, ideal for projections. All three gobo wheels can be combined here. The motorized focus ensures the necessary sharpness in all areas.

  • Power supply: : 100-240 V AC, 50/60 Hz
  • Power consumption: : 490 W
  • IP classification: : IP20
  • Protection class: : Protection class I
  • Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  • Power output: : P-Con (gray), mounting version
  • Fuse: : 5 X 20 mm, T 8 A
  • Lamp type: : Discharge lamp
  • Max. TILT movement: : 230° Exact positioning (16 bit resolution) auto position correction (feedback)
  • Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
  • Flash rate: : 1 - 18 Hz
  • Equipment: : Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer
  • Color generation: : Color wheel with 13 dichroic filters plus open
  • Gobos: : Gobo wheel with rotating gobos, 7 gobos and open
  • Outside diameter 22.5 mm: Image diameter 12 mm

Slot-in gobo system for easy gobo replacement

  • Power supply: : 100-240 V AC, 50/60 Hz
  • Power consumption: : 490 W
  • IP classification: : IP20
  • Protection class: : Protection class I
  • Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  • Power output: : P-Con (gray), mounting version
  • Fuse: : 5 X 20 mm, T 8 A
  • Lamp type: : Discharge lamp
  • Max. TILT movement: : 230° Exact positioning (16 bit resolution) auto position correction (feedback)
  • Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
  • Flash rate: : 1 - 18 Hz
  • Equipment: : Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer
  • Color generation: : Color wheel with 13 dichroic filters plus open
  • Gobos: : Gobo wheel with rotating gobos, 7 gobos and open
  • Outside diameter 22.5 mm: Image diameter 12 mm
  • Gobos changeable: Gobo wheel with static gobos, 11 gobos and open
  • Shake effect: Gobo wheel with static gobos, 5 gobos and open
  • DMX channels: : 22; 26
  • DMX input: : 3-Pin XLR (M) mounting version
  • DMX output: : 3-Pin XLR (F) mounting version
  • Cooling: : Cooling fan
  • Control: : Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Preprogrammed in: : Light Captain
  • Beam angle: : 4° - 35°
  • Beam angle (1/2 peak): : Spot 4 - 35°
  • Beam angle (1/10 peak): : Spot 4 - 35°
  • Housing color: : Black
  • Display type: : Multicolor LCD display battery buffering
  • Use of brands: : OSRAM bulb included
  • Dimensions: : Width: 39.5 cm
  • Depth: 30.5 cm
  • Height: 63.0 cm
  • Weight: : 22.70 Kg
  • Noise classification: : Class 3 (clearly perceptible sounds)
  • Special product: : Not designed for household room illumination
  • Intended use: : Show effect lighting
