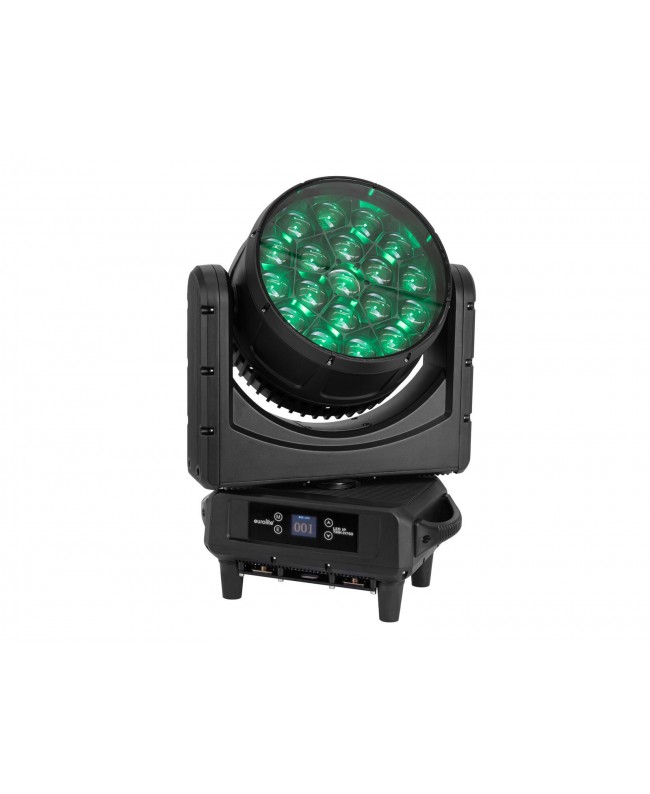

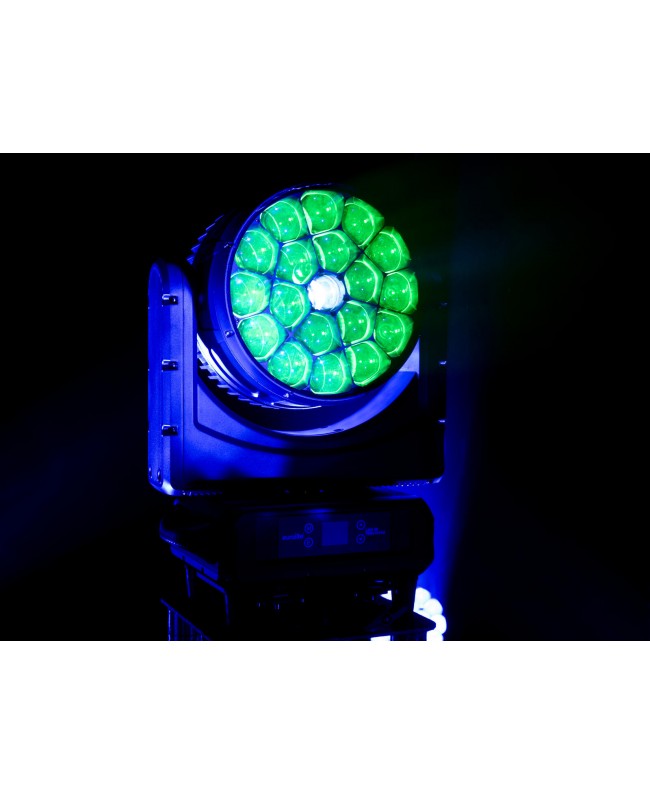

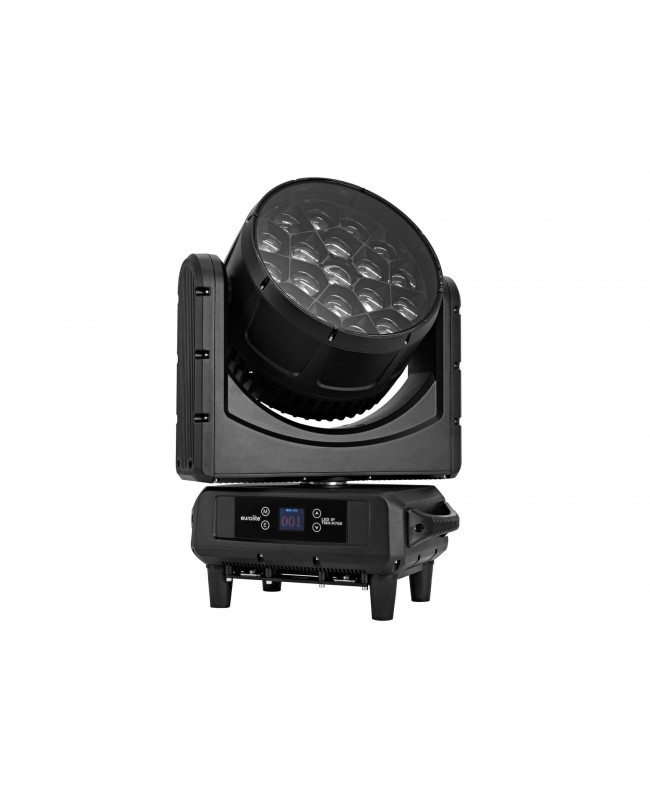

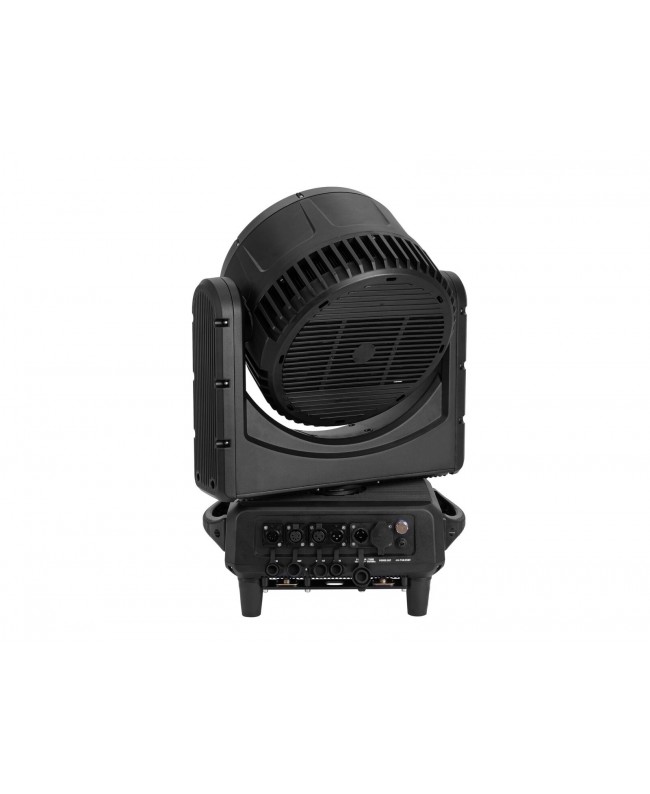

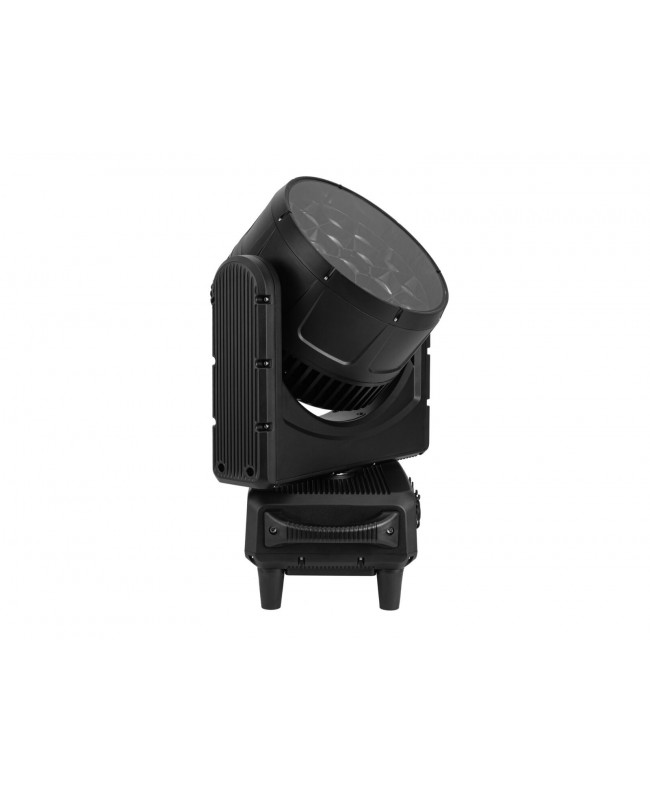

Eurolite LED IP TMH-H760 Beam/Wash/Flower Effect

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 780 W
• IP classification: : IP65
• Protection class: : Protection class I
• Power connection: : Mains input via IP T-Con (M) power supply cord with safety plug
• Cable construction: : 3 X 1.5 mm² H07RN-F
• Power output: : IP T-Con (F) mounting version
• Fuse: : 5 X 20 mm, T 8 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 19 X 40 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 210° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
• Flash rate: : 1 - 20 Hz
• Equipment: : Zoom motor driven rotating; lens rotation
• DMX channels: : 18; 30; 94
• DMX input: : 3-Pin XLR (M) mounting version IP
• DMX output: : 3-Pin XLR (F) mounting version IP
• Cooling: : 2 X temperature-controlled fan at the head

2 X cooling fan at the base

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 780 W
• IP classification: : IP65
• Protection class: : Protection class I
• Power connection: : Mains input via IP T-Con (M) power supply cord with safety plug
• Cable construction: : 3 X 1.5 mm² H07RN-F
• Power output: : IP T-Con (F) mounting version
• Fuse: : 5 X 20 mm, T 8 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 19 X 40 W SMD 5060 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 210° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
• Flash rate: : 1 - 20 Hz
• Equipment: : Zoom motor driven rotating; lens rotation
• DMX channels: : 18; 30; 94
• DMX input: : 3-Pin XLR (M) mounting version IP
• DMX output: : 3-Pin XLR (F) mounting version IP
• Cooling: : 2 X temperature-controlled fan at the head
• Control: : Stand-alone; DMX; master/slave function
• Projection: : Flicker-free
• DMX fail mode: : Hold; zero values
• Beam angle: : 2° - 30°
• Beam angle (1/2 peak): : 2 - 16°
• Beam angle (1/10 peak): : 7 - 30°
• Illuminance in Lux (lx): : Narrow red 1 m: 13602 lx, 3 m: 11354 lx, 6 m: 4333 lx
• Narrow green (G) 1 m: 31916 Lx, 3 m: 29390 lx, 6 m: 9454 lx
• Narrow blue (B) 1 m: 3891 Lx, 3 m: 3565 lx, 6 m: 1777 lx
• Narrow cold white (CW) 1 m: 52981 Lx, 3 m: 45405 lx, 6 m: 14131 lx
• Narrow all 3 m: 78579 Lx, 6 m: 27552 lx
• Wide red 1 m: 9199 Lx, 3 m: 1243 lx, 6 m: 336 lx
• Wide green (G) 1 m: 19373 Lx, 3 m: 2700 lx, 6 m: 736 lx
• Wide blue (B) 1 m: 2768 Lx, 3 m: 575 lx, 6 m: 163 lx
• Wide cold white (CW) 1 m: 29680 Lx, 3 m: 4088 lx, 6 m: 1109 lx
• Wide all 1 m: 56588 Lx, 3 m: 8061 lx, 6 m: 2192 lx
• Lamp life: : 10000 H
• Housing color: : Black
• Attachment system: : Ø 50 mm
• Display type: : Multicolor LCD display
• Carrying handle: : 2 Pc/pcs
• Transport aid: : 4 X rubber feet
• Use of brands: : Built with SEETRONIC connector
• Material: : Aluminum casting
• Dimensions: : Width: 41.0 cm
• Depth: 24 cm
• Height: 55.5 cm
• Weight: : 24.60 Kg
• Noise classification: : Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used; class 3 (clearly perceptible sounds)
• Special product: : Not designed for household room illumination
• Intended use: : Show effect lighting
