Gobo wheel with rotating gobos; focus manual; color wheel
Dimmer electronic
Beam effect; strobe effect
Color wheel with 7 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open slot-in gobo system for easy gobo replacement
Shake effect
4 integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain
Flicker-free
With a beam angle of 12°
4 digit 7-segment LED display
Rubber feet
For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Standing; suspended
Scope of delivery
1 x moving light
1 x user manual
1 x power cord
1 x omega bracket
1 x safety eyelet
3 x gobos
Power supply: : 100-240 V AC, 50/60 Hz
Power consumption: : 95 W
IP classification: : IP20
Protection class: : Protection class I
Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Device fuse: : 5 X 20 mm, T 1.5 A fuse replaceable
Lamp type: : LED lamp
LED type: : 1 X 60 W COB (chip-on-board) cold white (CW)
Max. TILT movement: : 180° Positioning
Max. PAN movement: : 540° Positioning
Flash rate: : 1.5 - 23 Hz
Equipment: : Gobo wheel with rotating gobos; focus manual; color wheel
Color generation: : Color wheel with 7 dichroic filters plus open
Gobos: : Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 13.8 mm: Image diameter 11 mm
Slot-in gobo system for easy gobo replacement
Power supply: : 100-240 V AC, 50/60 Hz
Power consumption: : 95 W
IP classification: : IP20
Protection class: : Protection class I
Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Device fuse: : 5 X 20 mm, T 1.5 A fuse replaceable
Lamp type: : LED lamp
LED type: : 1 X 60 W COB (chip-on-board) cold white (CW)
Max. TILT movement: : 180° Positioning
Max. PAN movement: : 540° Positioning
Flash rate: : 1.5 - 23 Hz
Equipment: : Gobo wheel with rotating gobos; focus manual; color wheel
Color generation: : Color wheel with 7 dichroic filters plus open
Gobos: : Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 13.8 mm: Image diameter 11 mm
DMX channels: : 10; 12

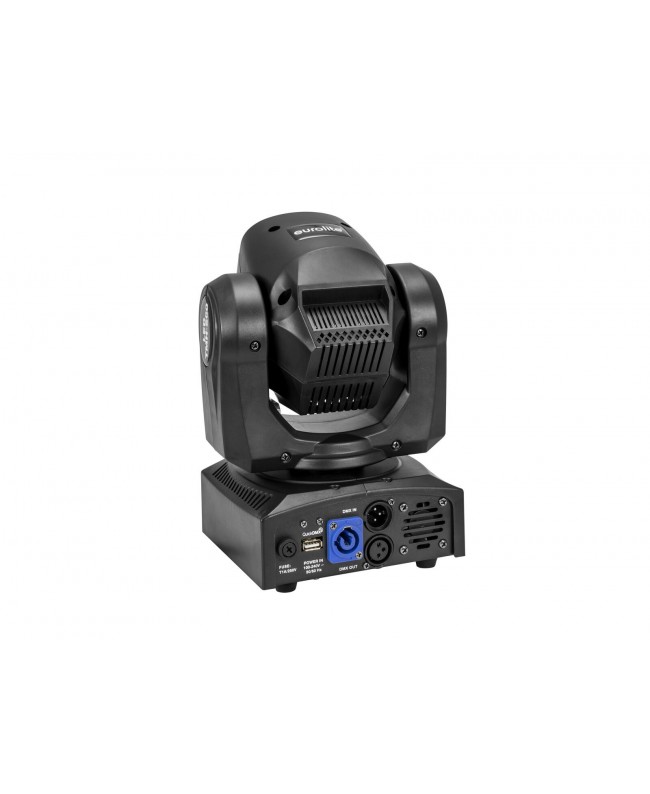

DMX input: : 3-Pin XLR (M) mounting version
DMX output: : 3-Pin XLR (F) mounting version
Cooling: : Cooling fan
Control: : Stand-alone; DMX; sound to light via microphone; master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
Preprogrammed in: : LED PC-Control 512; EASY SHOW 1; Light Captain
Projection: : Flicker-free
PWM frequency: : 2800 Hz
Beam angle: : 12°
Beam angle (1/2 peak): : 12°
Color temperature: : 7700K
Illuminance in Lux (lx): : Cold white (CW) 1 m: 15205 lx, 3 m: 1764 lx, 6 m: 445 lx
Housing color: : Black
Display type: : 4 Digit 7-segment LED display
Transport aid: : Rubber feet
Dimensions: : Width: 17.0 cm
Depth: 15.0 cm
Height: 24.0 cm
Weight: : 3.15 Kg
Noise classification: : Class 3 (clearly perceptible sounds)
Special product: : Not designed for household room illumination
