tarm professional luminaires tarm REVOLT Movinglights Spot
  • -26%
  • New

tarm professional luminaires tarm REVOLT


€20,384.00
€15,169.00 -26%
Tax included
Lowest price within the last 30 days: €15,169.00

Hybrid moving head with 500 W white laser source, wide zoom range from 0.43° to 12.5°, up to 40° Wash effect, extra fast head movement, CMY mixing, optimized Gobos


Out of Stock

Free shipping


wishlist

tarm professional luminaires tarm REVOLT

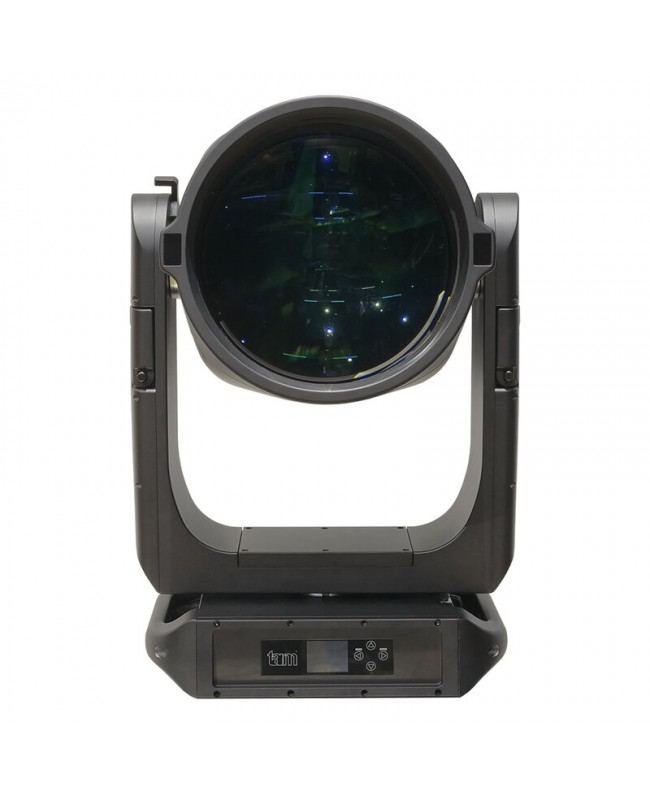

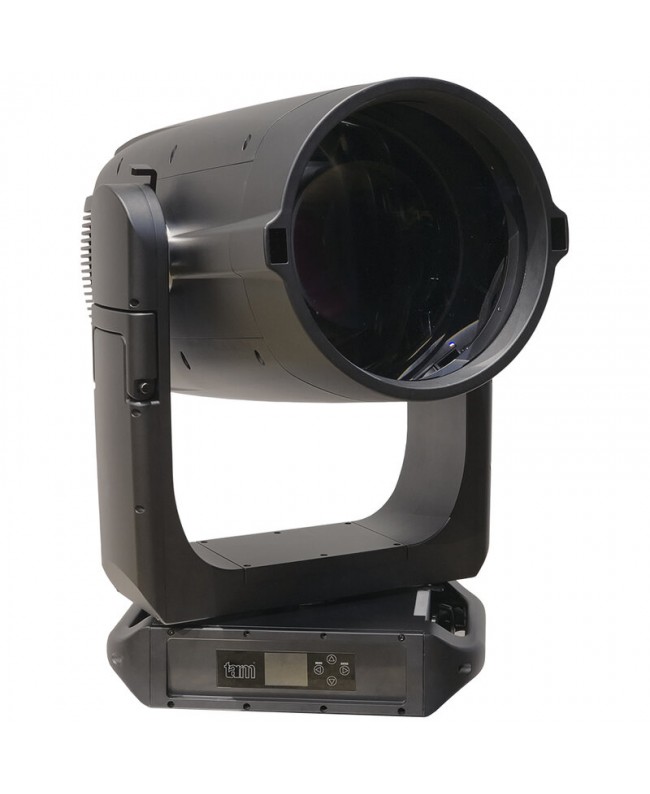

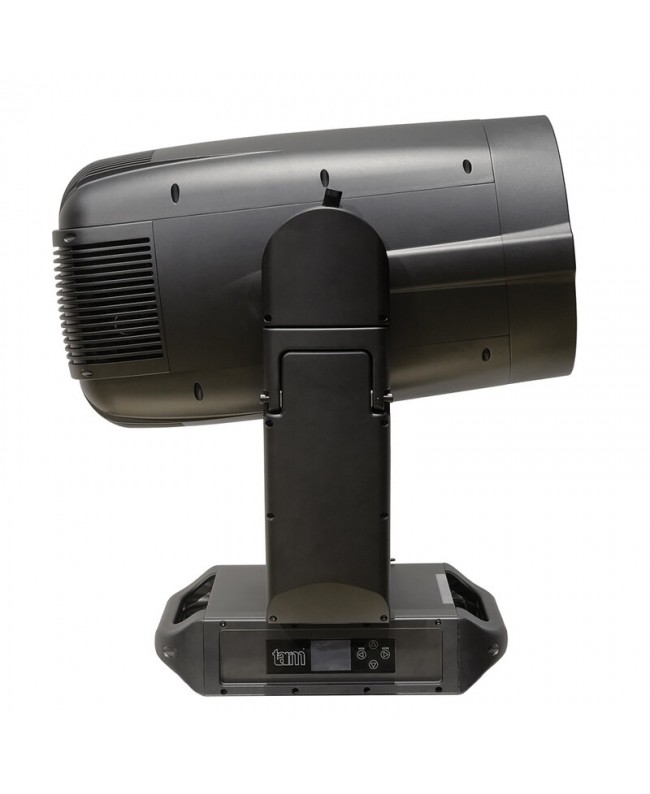

Presented at ISE 2025, tarm REVOLT is an innovative hybrid motorized moving head projector equipped with a laser source, designed to offer exceptional brightness (16,800 lm, 1,200,000 lux and #64; 20 m) thanks to a 500 W white laser and highly efficient optics that minimize losses. It is part of Tarm Professional Luminaries, the new brand of professional lighting fixtures and in particular of moving heads equipped exclusively with laser sources, the core business of the German company.

Its advanced lens system allows a wide zoom range, from 0.38° to 12.5°, up to 40° if a Wash effect is desired, making it extremely versatile both for ultra-sharp beams at long distances, and for wider projection applications.

One of its peculiarities is given by the infinite Pan rotation which, especially in outdoor events, also makes it suitable for capturing people and #039;s attention.

Featuring extremely fast but exceptionally smooth head movements, it is made from durable materials such as magnalium and die-cast alloys and is IP66 rated for waterproofing, with reliable operation in extreme outdoor conditions from -20 to 45 °C. It includes a CMY mixing unit for a wide color gamut, an additional color wheel for a selection of distinctive colors, including CTO tones, and optimized Gobos to create precise beams. It also offers additional creative options, such as linear and radial rotating prisms, rotating glass Gobos for unique visual effects and a rotatable Frost filter.

With silent operation in theater mode and compatibility with various protocols such as DMX512, Art-Net, RDM, s. ACN and W-DMX, it is designed for demanding professional use.

It is supplied with a flight case, underlining its suitability for touring and high-end applications.

Overall, this light is specially designed for outdoor use, given its long throw, however it can also have a very wide angle for wash-like effects.

  • User benefits
  • Exceptional brightness
  • Wide zoom range
  • Extremely fast head movements
  • Wide color gamut thanks to the CMY mixing unit for flawless color blending
  • Unique visual effects with Gobos, rotating frost filter, linear and radial prisms
  • Super quiet operation (theater mode) with noise levels below 40 d. B
  • Versatile control profiles with three different DMX options for maximum flexibility
  • Integrated W-DMX Lumenradio
  • IP66 rating
  • Very robust, all-metal mechanical construction
  • Professional flight case included
  • Areas of use
  • Live shows, concerts and tours
  • Outdoor events, festivals and large screenings
  • Theatrical performances (with a special theater-specific silent mode) and audiovisual productions
  • Sophisticated art installations
  • Theme parks

Technical characteristics

  • Light source: 500 W white laser engine
  • Lens diameter: 300 mm
  • Zoom: 0.38° - 12.5°, with a Wash effect up to 40°
  • Focus: adjustable
  • Luminous flux: min. 16,800 lm
  • Lux at 100 m: 48,000
  • Lux at 20 m: 1,200,000
  • CRI: 70
  • CCT full white: 9100 K
  • Rated life (LP70): 12,000 hours
  • Pan / Tilt: infinite / 265° (8 - 16 bit)
  • Dimmer: 0 - 100%, 24-bit precision
  • Static Gobo: 19 Gobos with gobo shake function
  • Rotating Gobo: 12 rotating Gobos, also with gobo shake
  • Colors: color wheel with 19 colors, including CTO tones, white, 4 multi-color filters, and gradual CTO transition
  • Color mixture: CMY blending for smooth transitions
  • Prism: two prism wheels with three radial prisms and four linear prisms; stackable, bi-directional rotation, adjustable speed
  • Frost: 3 frost filters located on prism wheels, stackable for creative effects
  • Operating modes: DMX512, Art-Net, RDM, sACN, W-DMX
  • Ray of light: 100% white
  • Material: magnalium and die-cast
  • Cooling: forced convection
  • Power supply / consumption: 100 - 240 VAC 50/60 Hz, 670 W
  • IP rating: IP66
  • Connectivity: 5-pin DMX in and through RJ45 in and through, USB-C
  • Temperature range: -20 to 45 °C
  • Dimensions (L x H x W): 38.1 x 28 x 66.5 cm
  • Weight: 56 kg
