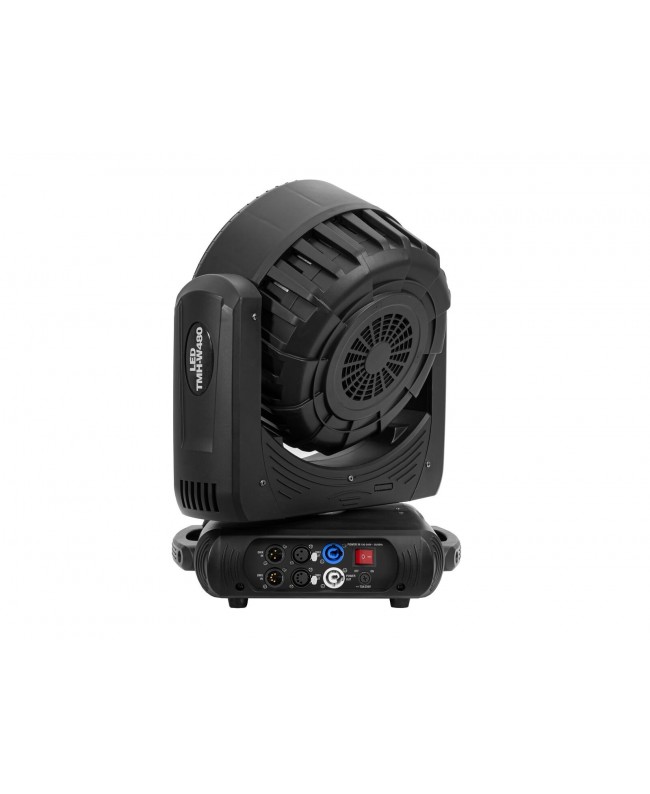

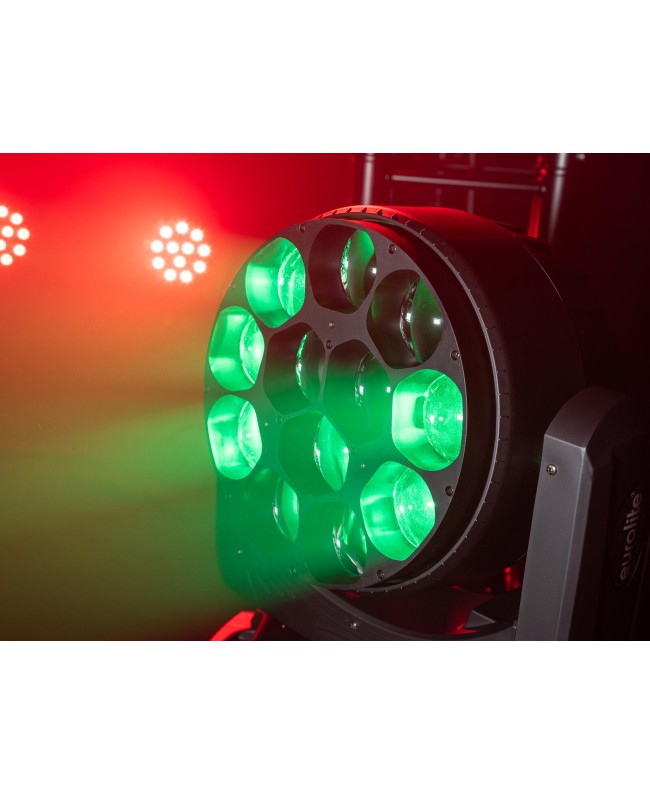

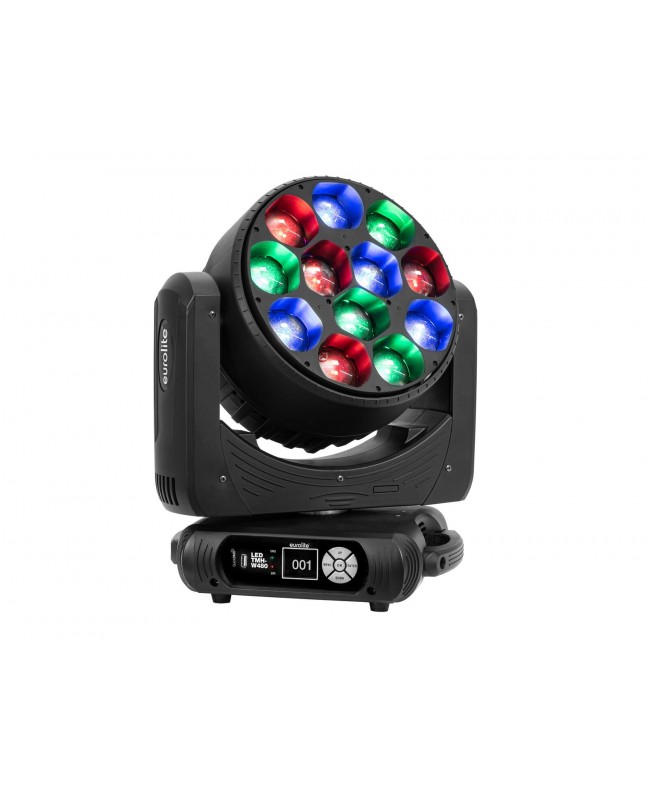

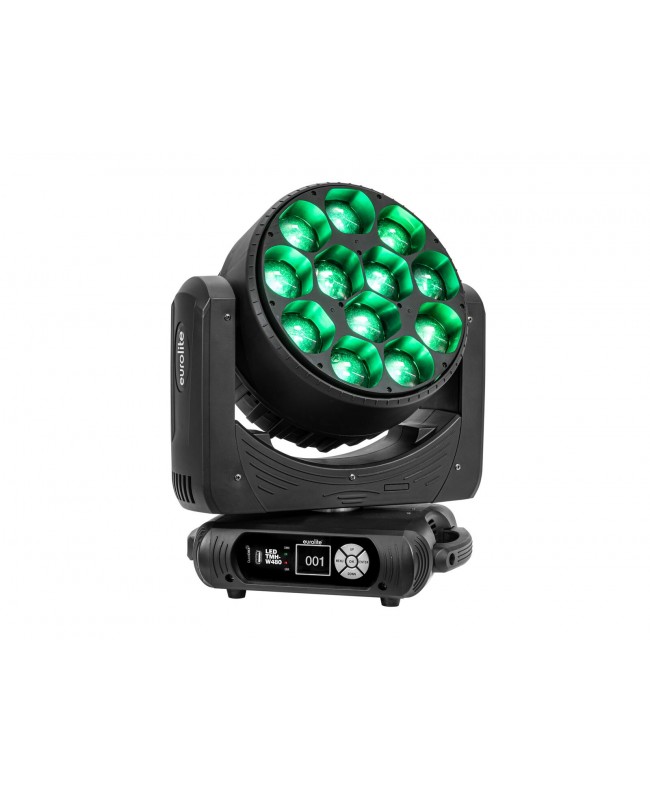

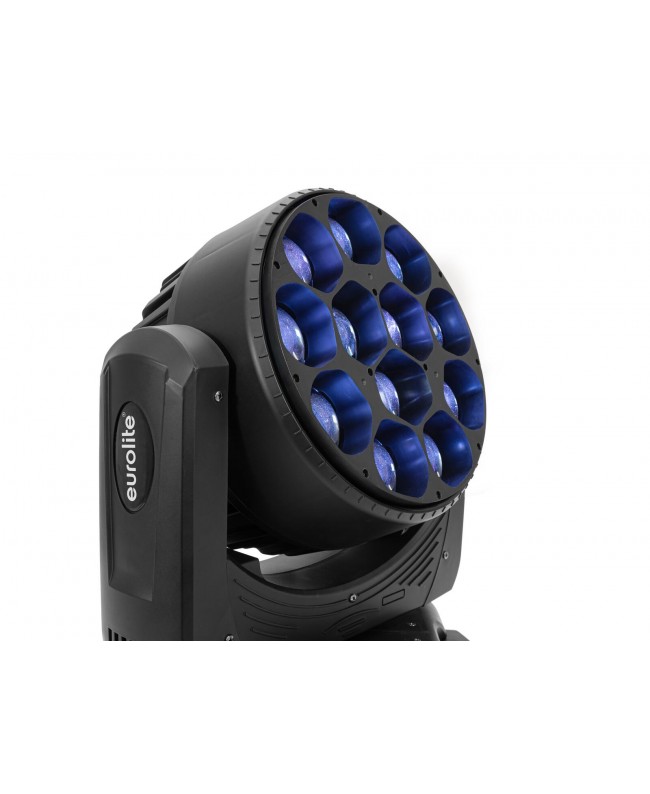

Eurolite LED TMH-W480 Moving Head Wash Zoom

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 475 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Lamp type: : LED lamp
• LED type: : 12 X 40 W 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 215° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
• Flash rate: : 0.5 - 11 Hz
• Equipment: : Zoom motor driven; Dimmer
• DMX channels: : 11; 16; 18; 58
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head

Low-noise cooling fan at the base

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 475 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Lamp type: : LED lamp
• LED type: : 12 X 40 W 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 215° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution) auto position correction (feedback)
• Flash rate: : 0.5 - 11 Hz
• Equipment: : Zoom motor driven; Dimmer
• DMX channels: : 11; 16; 18; 58
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head
• Control: : Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone; master/slave function
• Preprogrammed in: : Light Captain
• Projection: : Flicker-free
• PWM frequency: : 16000 Hz
• Beam angle: : 1° - 35°
• Beam angle (1/2 peak): : 1 - 18°
• Beam angle (1/10 peak): : 6 - 35°
• Illuminance in Lux (lx): : Narrow red 1 m: 10753 lx, 3 m: 4966 lx, 6 m: 1572 lx
• Narrow green (G) 1 m: 30231 Lx, 3 m: 12941 lx, 6 m: 4189 lx
• Narrow blue (B) 1 m: 3586 Lx, 3 m: 2214 lx, 6 m: 830 lx
• Narrow cold white (CW) 1 m: 29150 Lx, 3 m: 12657 lx, 6 m: 4024 lx
• Narrow all 1 m: 66539 Lx, 3 m: 31156 lx, 6 m: 10125 lx
• Wide red 1 m: 2592 Lx, 3 m: 363 lx, 6 m: 99 lx
• Wide green (G) 1 m: 7263 Lx, 3 m: 966 lx, 6 m: 265 lx
• Wide blue (B) 1 m: 1368 Lx, 3 m: 188 lx, 6 m: 51 lx
• Wide cold white (CW) 1 m: 6610 Lx, 3 m: 887 lx, 6 m: 242 lx
• Wide all 1 m: 16995 Lx, 3 m: 2285 lx, 6 m: 622 lx
• Housing color: : Black
• Display type: : Multicolor LCD display
• Dimensions: : Width: 39.0 cm
• Depth: 27.0 cm
• Height: 47.0 cm
• Weight: : 14.65 Kg
• Noise classification: : Class 2 (slight noise)
• Special product: : Not designed for household room illumination
• Intended use: : Show effect lighting
