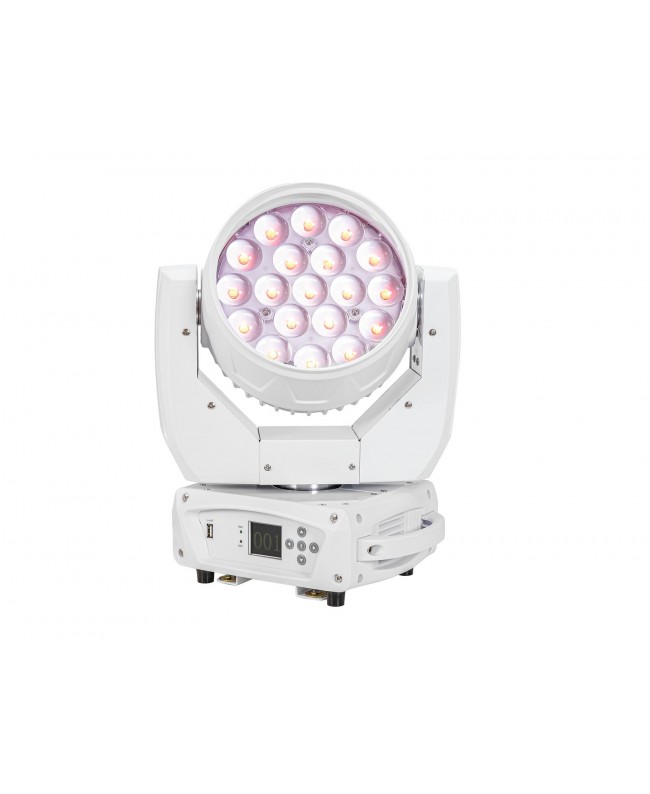

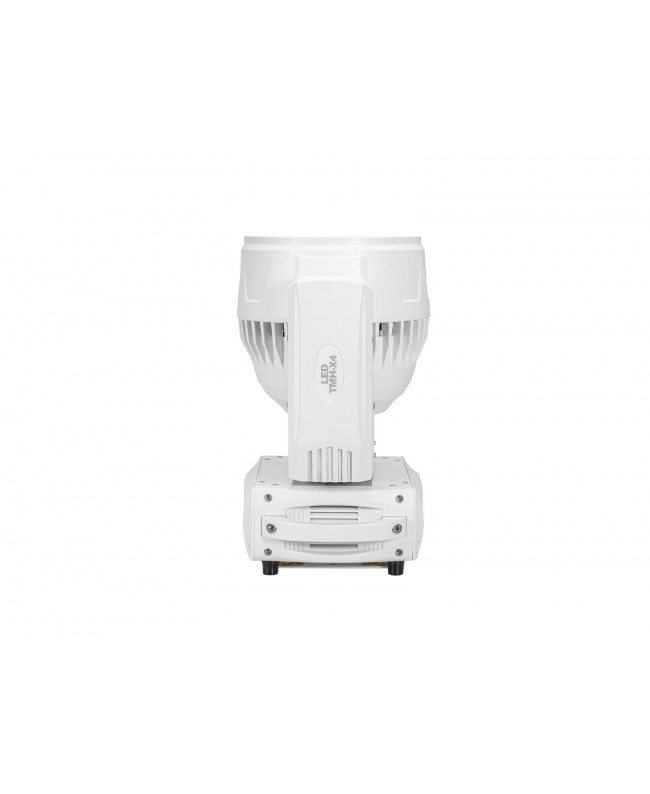

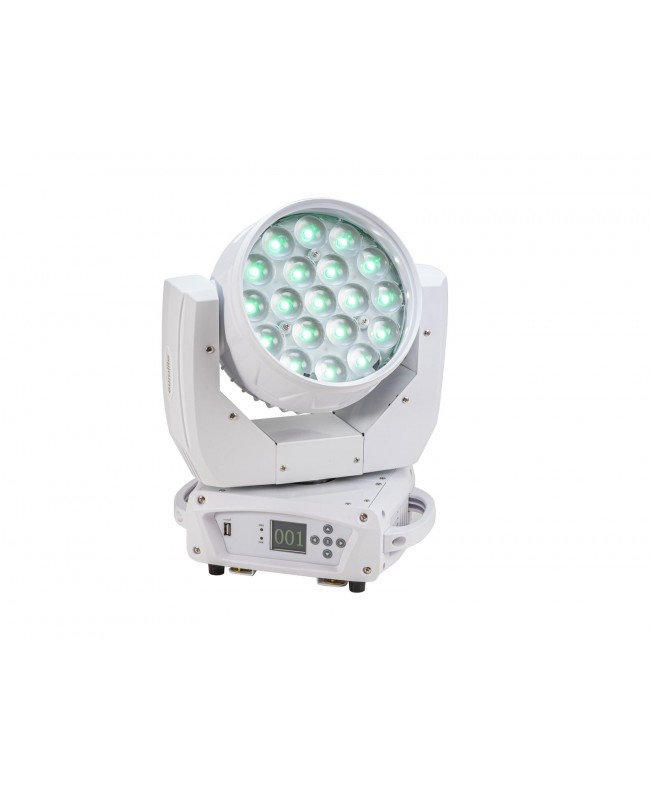

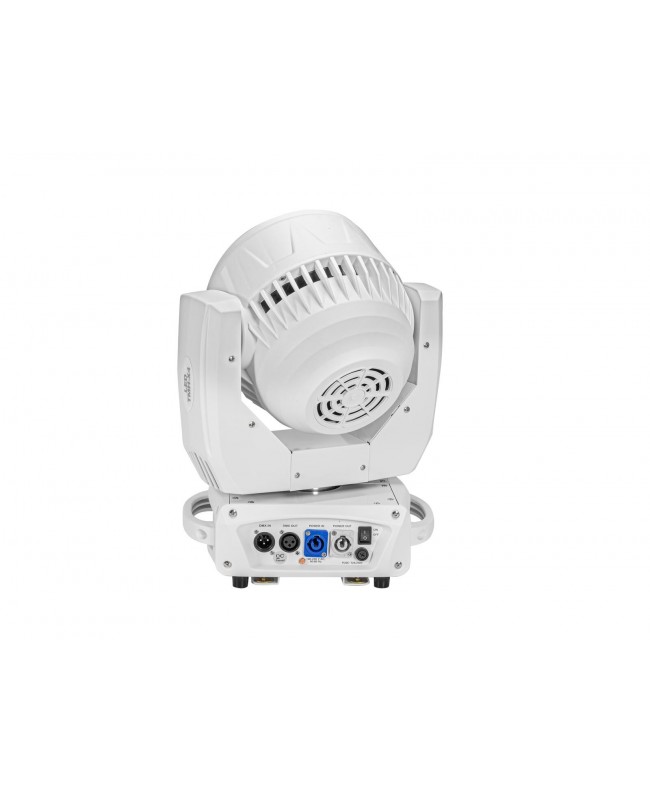

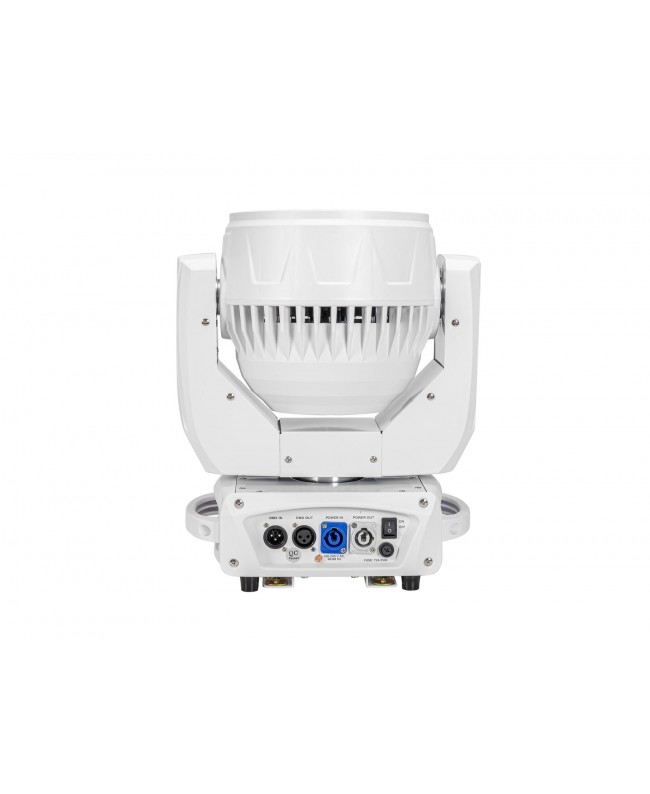

Eurolite LED TMH-X4 Moving Head Wash Zoom wh

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 225 W
• IP classification: : IP20
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 2 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 19 X 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 270° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 630° Exact positioning (16 bit resolution) auto position correction (feedback)
• Equipment: : Zoom motor driven
• DMX channels: : 16; 24
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head

Cooling fan at the base

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 225 W
• IP classification: : IP20
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 2 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 19 X 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
• Max. TILT movement: : 270° Exact positioning (16 bit resolution) auto position correction (feedback)
• Max. PAN movement: : 630° Exact positioning (16 bit resolution) auto position correction (feedback)
• Equipment: : Zoom motor driven
• DMX channels: : 16; 24
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : Temperature-controlled fan at the head
• Control: : Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in: : Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
• Projection: : Flicker-free
• Beam angle: : 1° - 40°
• Beam angle (1/2 peak): : 1 - 25°
• Beam angle (1/10 peak): : 8 - 40°
• Illuminance in Lux (lx): : Narrow red 3 m: 2779 lx, 6 m: 763 lx
• Narrow green (G) 3 m: 7893 Lx, 6 m: 1841 lx
• Narrow blue (B) 3 m: 1468 Lx, 6 m: 390 lx
• Narrow cold white (CW) 3 m: 9558 Lx, 6 m: 2468 lx
• Narrow all 3 m: 19553 Lx, 6 m: 5001 lx
• Wide red 3 m: 272 Lx, 6 m: 73 lx
• Wide green (G) 3 m: 583 Lx, 6 m: 160 lx
• Wide blue (B) 3 m: 117 Lx, 6 m: 34 lx
• Wide cold white (CW) 3 m: 740 Lx, 6 m: 211 lx
• Wide all 3 m: 1568 Lx, 6 m: 439 lx
• Housing color: : White
• Display type: : Multicolor LCD display
• Dimensions: : Width: 30.5 cm
• Depth: 20.0 cm
• Height: 40.0 cm
• Weight: : 8.62 Kg
• Noise classification: : Class 3 (clearly perceptible sounds)
• Special product: : Not designed for household room illumination
• Intended use: : Show effect lighting
