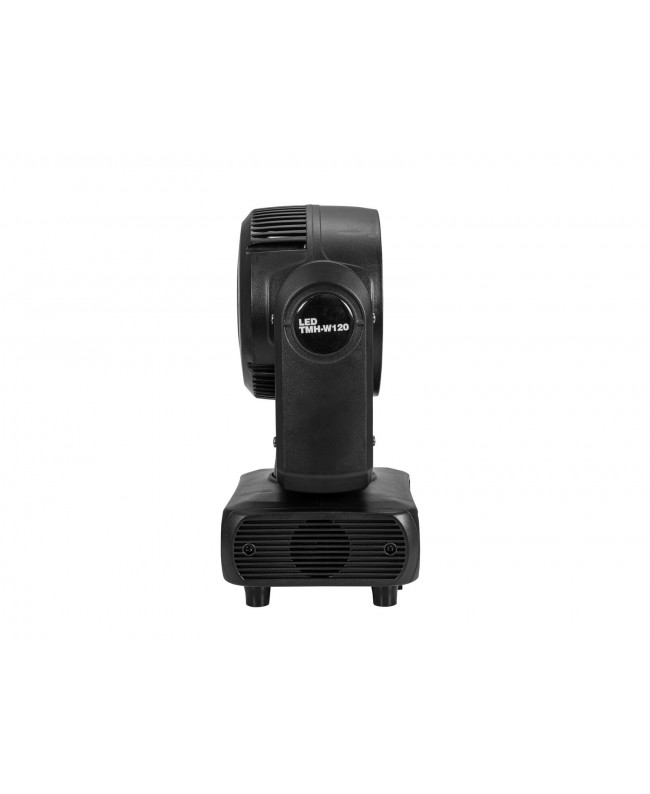

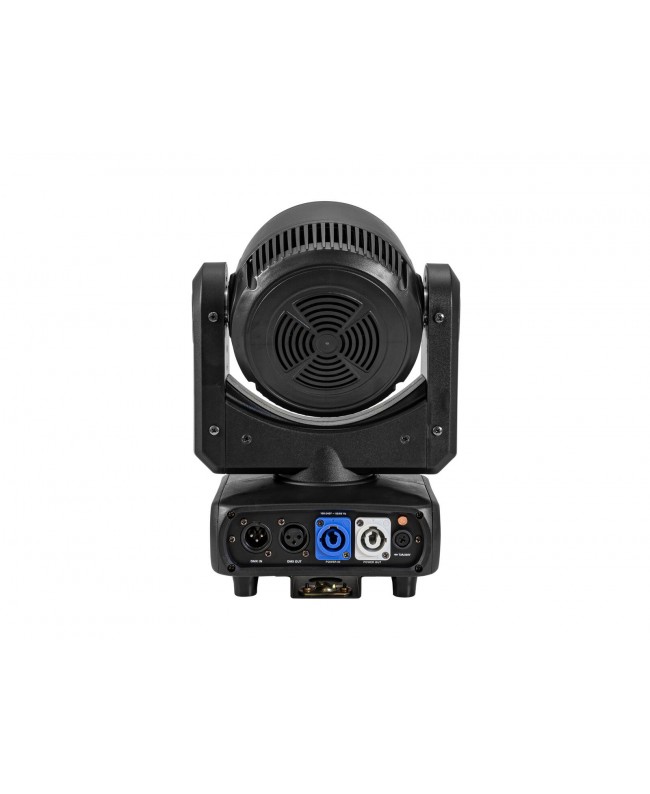

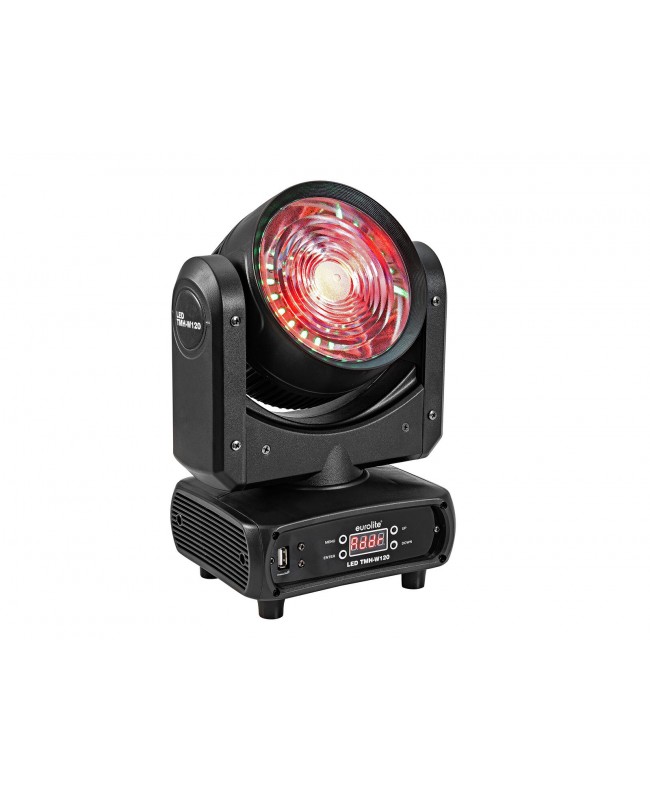

Eurolite LED TMH-W120 Hypno Moving Head Wash

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 130 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 2 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 1 X 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
• Max. TILT movement: : 200° Exact positioning (16 bit resolution)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution)
• Flash rate: : 1 - 20 Hz
• DMX channels: : 23
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : 1 X temperature-controlled fan at the head

1 X low-noise cooling fan at the base

• Power supply: : 100-240 V AC, 50/60 Hz
• Power consumption: : 130 W
• IP classification: : IP20
• Protection class: : Protection class I
• Power connection: : Mains input via P-Con (blue), mounting version power supply cord with safety plug
• Power output: : P-Con (gray), mounting version
• Fuse: : 5 X 20 mm, T 2 A fuse replaceable
• Lamp type: : LED lamp
• LED type: : 1 X 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
• Max. TILT movement: : 200° Exact positioning (16 bit resolution)
• Max. PAN movement: : 540° Exact positioning (16 bit resolution)
• Flash rate: : 1 - 20 Hz
• DMX channels: : 23
• DMX input: : 3-Pin XLR (M) mounting version
• DMX output: : 3-Pin XLR (F) mounting version
• Cooling: : 1 X temperature-controlled fan at the head
• Control: : Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
• Preprogrammed in: : Light Captain
• Projection: : Flicker-free
• PWM frequency: : 20000 Hz
• DMX fail mode: : Hold; zero values
• Beam angle: : 11°
• Beam angle (1/2 peak): : 11°
• Beam angle (1/10 peak): : 20°
• Illuminance in Lux (lx): : Red 1 m: 11680 lx, 3 m: 1064 lx, 6 m: 257 lx
• Green (G) 1 m: 21059 Lx, 3 m: 1883 lx, 6 m: 429 lx
• Blue (B) 1 m: 4476 Lx, 3 m: 434 lx, 6 m: 102 lx
• Warm white (WW) 1 m: 19730 Lx, 3 m: 1711 lx, 6 m: 408 lx
• All 1 m: 52623 Lx, 3 m: 4746 lx, 6 m: 1108 lx
• Housing color: : Black
• Attachment system: : Omega bracket
• Display type: : 4 Digit 7-segment LED display
• USB port: : Type A
• Transport aid: : 4 X rubber feet
• Diameter mounting holes: : 1 X Ø10 mm
• Material: : Plastic
• Dimensions: : Width: 20 cm
• Depth: 14 cm
• Height: 29 cm
• Weight: : 3.60 Kg
• Noise classification: : Class 3 (clearly perceptible sounds)
• Special product: : Not designed for household room illumination
• Intended use: : Show effect lighting
