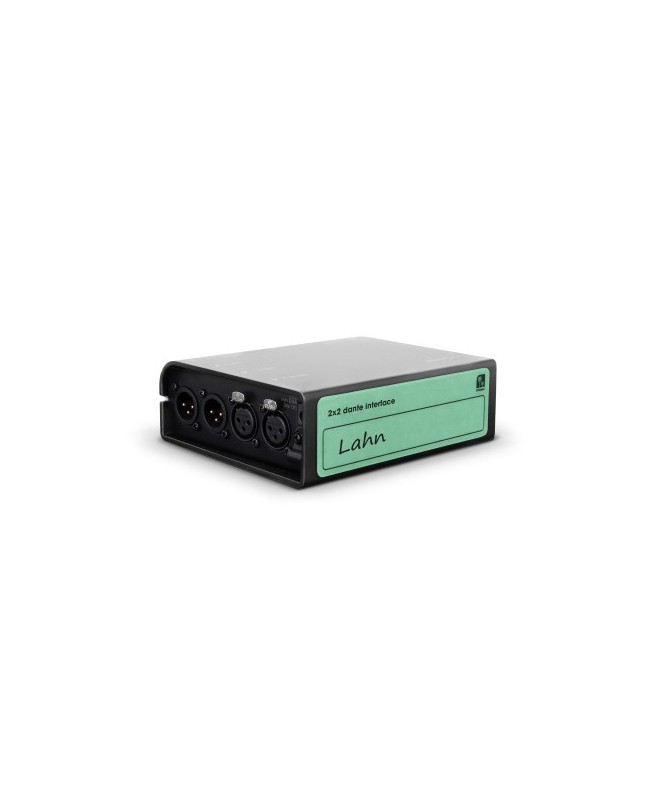

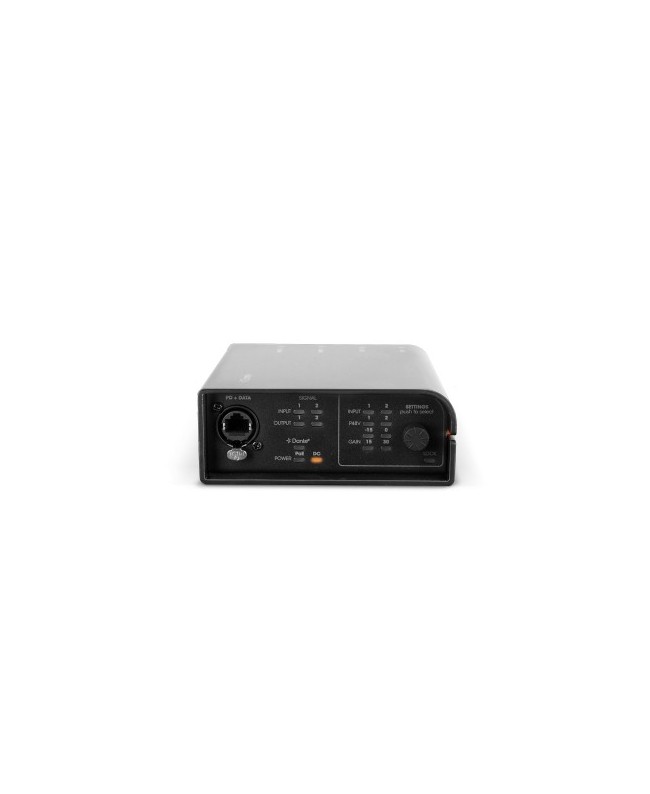

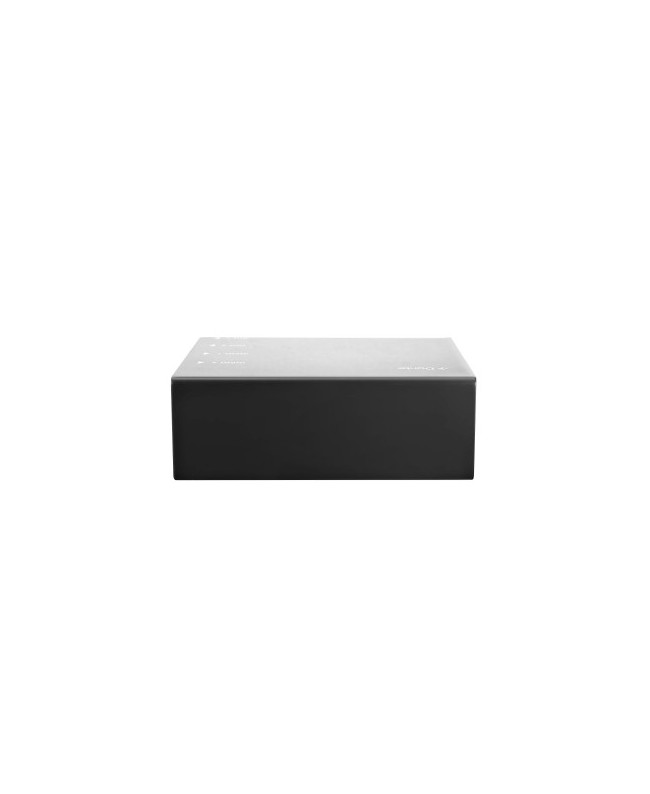

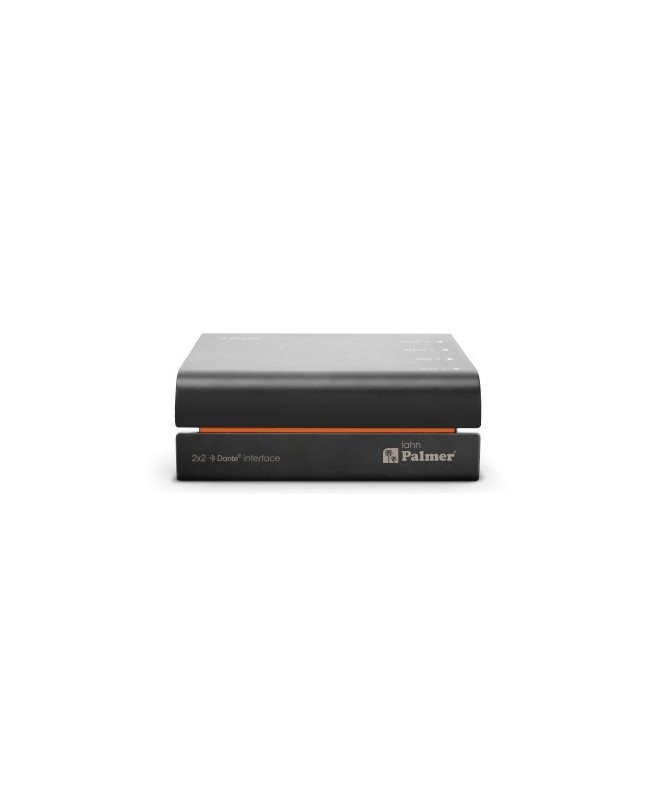

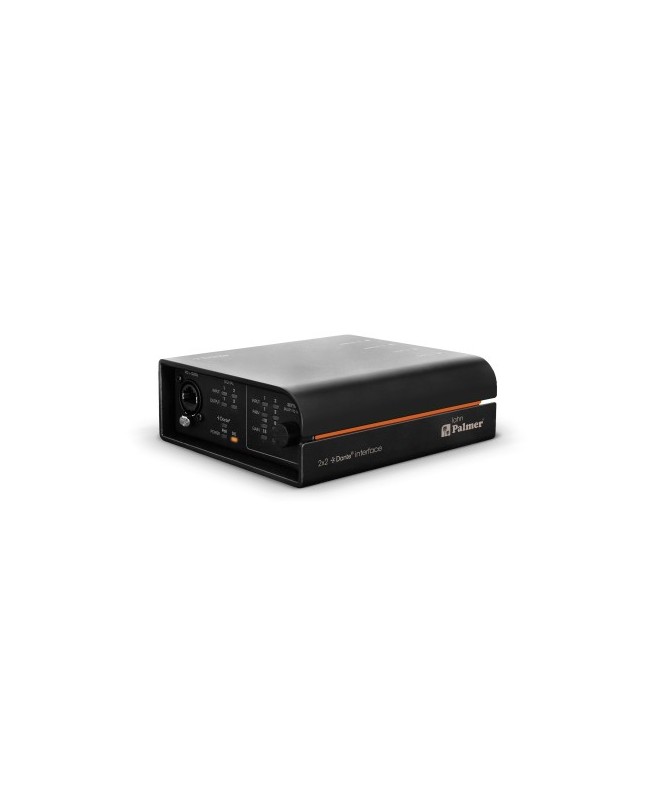

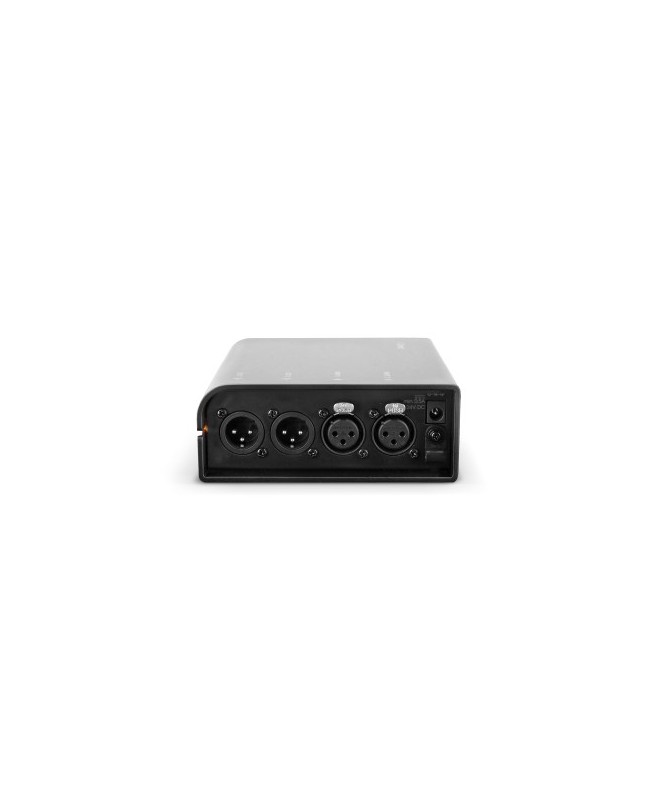

Palmer RIVER Iahn



With the Palmer RIVER lahn you can integrate analogue audio devices into a Dante® network: the lahn is an end-of-network interface that can be used to feed two analogue microphone or line signals into a Dante® network. Thanks to the bidirectional functionality, Dante® signals can also be converted into high-quality analogue audio signals to feed them into mixers, amplifiers, or loudspeakers.

With four-stage gain control and 48 V phantom power per channel, the RIVER lahn offers precise control and flexibility for various application scenarios. The lockable XLR audio connectors and the Neutrik® etherCON® network socket ensure secure connections, while the simple configuration on the front and the user lock on the control panel ensure user-friendly handling.

Each channel is equipped with a signal display that shows you the status of your audio transmission at all times. In addition to the power supply unit included in the packaging content, PoE (Power over Ethernet) can also be used for the power supply, which offers additional flexibility with regard to installation. Developed in Germany, the RIVER lahn is compatible with Dante® Domain Manager and AES 67. The solid aluminium and steel housing guarantees durability and robustness, making it ideal for use in demanding environments.

Experience the seamless integration of analogue and digital audio technology with the Palmer® RIVER lahn and benefit from first-class audio quality and ease of use.

Specifications

General

  • Product type 2 x 2 I/O Dante Interface
  • Inputs
  • Input type Switchable balanced microphone or line level
  • Line outputs
  • Output type Balanced line level with automatic mute relay in case of signal loss
  • Cooling Convection

Analog input section

  • Number of input connectors 2
  • Connection XLR-F
  • Microphone input sensitivity 63 mV (gain +30 dB)
  • Nominal input cutoff 19 dBu (1 kHz sine, gain -15 dB)
  • Frequency response 10 Hz - 20 kHz (-0.5 dB)
  • THD + Noise < 0.003 % (gain -15 dB, input 4 dBu, BW 20 kHz)
  • Input impedance 38 kohm (balanced)
  • Crosstalk < -100 dB (input 18 dBu, 20 kHz BW)
  • SNR > 112 dB (gain -15 dB, input 20 dBu, BW 20 kHz, weighted a)
  • CMRR > 45 dB
  • Phantom power (per input) + 48 VDC @ 10 mA max
  • Gain -15dB, 0dB, +15dB, +30dB

Analog line outputs

  • Number of output connectors 2
  • Connection type XLR male
  • Maximum output level 19 dBu
  • Intermodulation distortion (SMPTE) < 0.005% (from -20 dBFS to 0 dBFS)
  • THD + N < 0.002% (-4 dBFS, 20 kHz BW)
  • Minimum noise < - 85 dBu
  • Dynamic range > 103 dB (0 dBFS, AES 17, CCIR-2k Weighting)
  • Frequency range 15 Hz - 20 kHz (-0.5 dB)
  • Dante™ specifications Audio channels
  • 2 inputs / 2 outputs Bit depth AD/DA converter
  • 24/32 bits Sampling frequency
  • 48 kHz System latency
  • Minimum 1 ms
  • Dante connection 100 BASE-T RJ45

Power over Ethernet (PoE) specifications

  • Minimum PoE requirements
  • PoE+ IEEE 802.3at

Power requirements

  • Input voltage 24 V DC
  • Minimum current 500 mA
  • Power connection 5.5 mm plug, 2.1 mm internal
  • Max. power consumption 12 W
  • No-load power consumption 7.5 W (no signal input)
  • Inrush current 2 A @ 230 V AC
  • Operating temperature (non-condensing) 0°C - 40°C; < 85% humidity, non-condensing

General data

  • Material Steel Front panel, aluminum frame
  • WAF 60
  • Dimensions (W x H x D) (height with rubber feet) 128 x 50 x 140 mm
  • Weight 0.96 kg
  • Accessories (supplied) Registration label (tourist label), external power supply with interchangeable plugs
