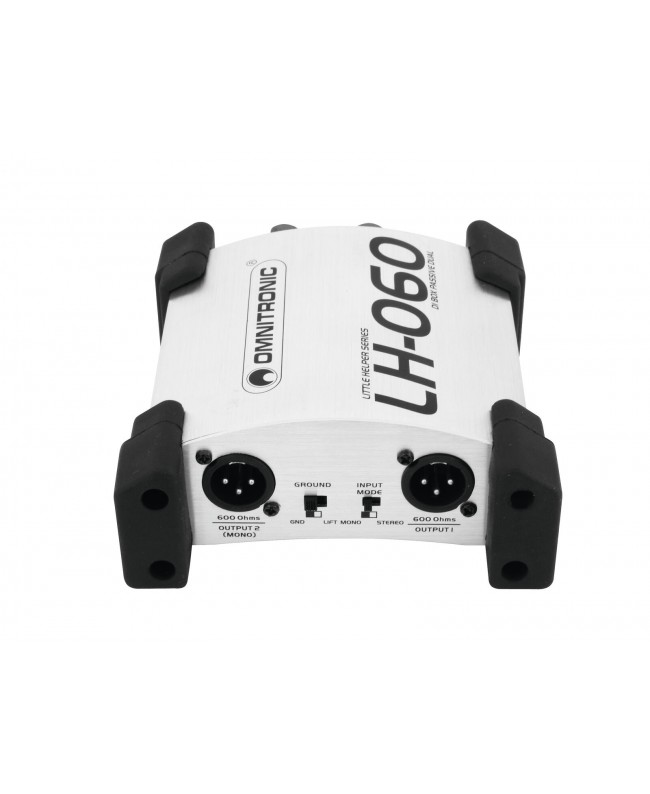

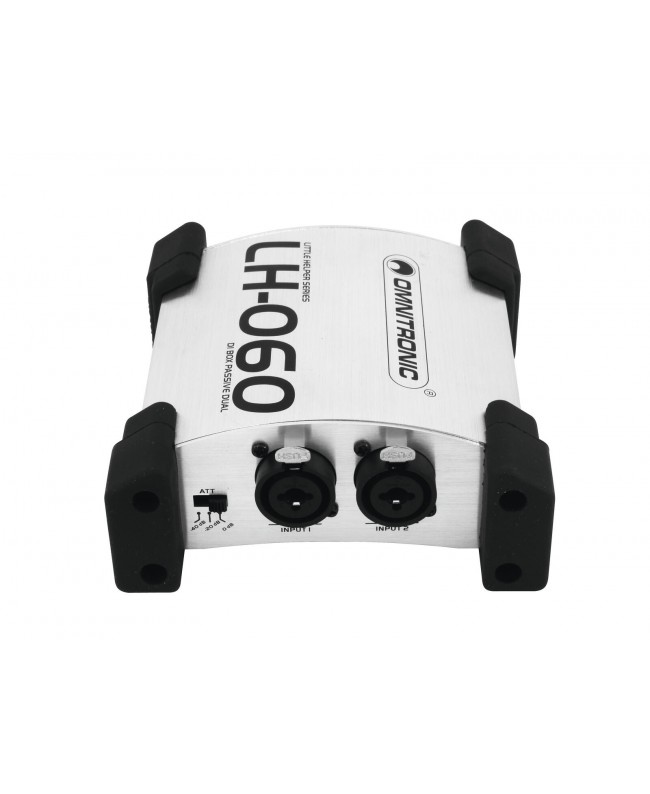

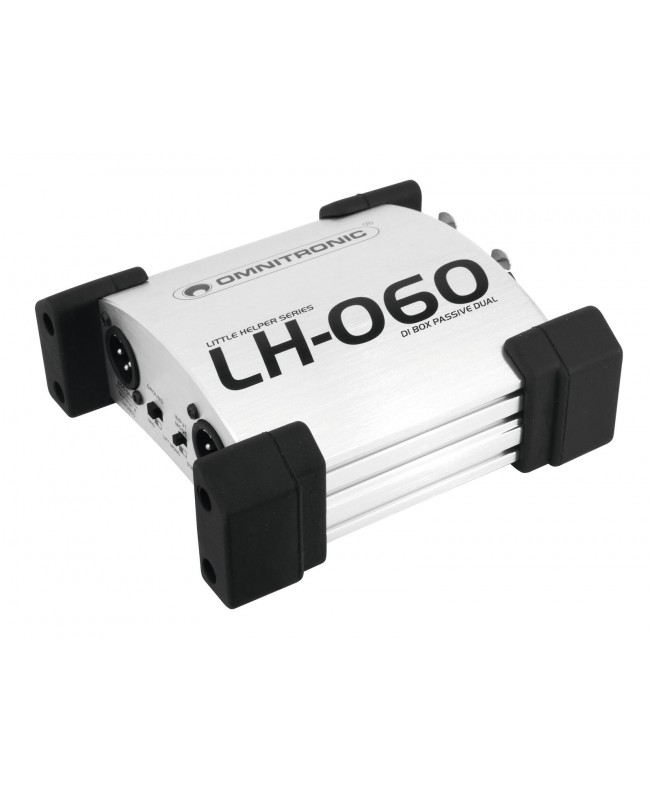

Omnitronic LH-060 PRO Dual DI Box passive

• 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
• 2 low-impedance XLR outputs
• Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
• Switchable to split mode (input 2 routes the signal to both outputs)
• Switchable input attenuation: 0 dB, -20 dB, -40 dB
• Cables can be routed under the housing
• For application areas such as: Installation; mobile use; mobile djs / entertainer

Scope of delivery

• 1 x device
• 1 x user manual

• Frequency range: 15 - 30000 Hz
• Impedance: Input: 50 kOhm, Output: 600 Ohm
• Input attenuation: 0 dB, -20 dB, -40 dB; switchable
• Housing color: Silver
• Control elements: Groundlift selector
• Connections: Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 3-pin XLR
• Max. level: Output: +6 dBu
• Dimensions: Width: 15 cm, Depth: 13 cm, Height: 6 cm
• Weight: 0.65 kg
