Palmer PAN 16

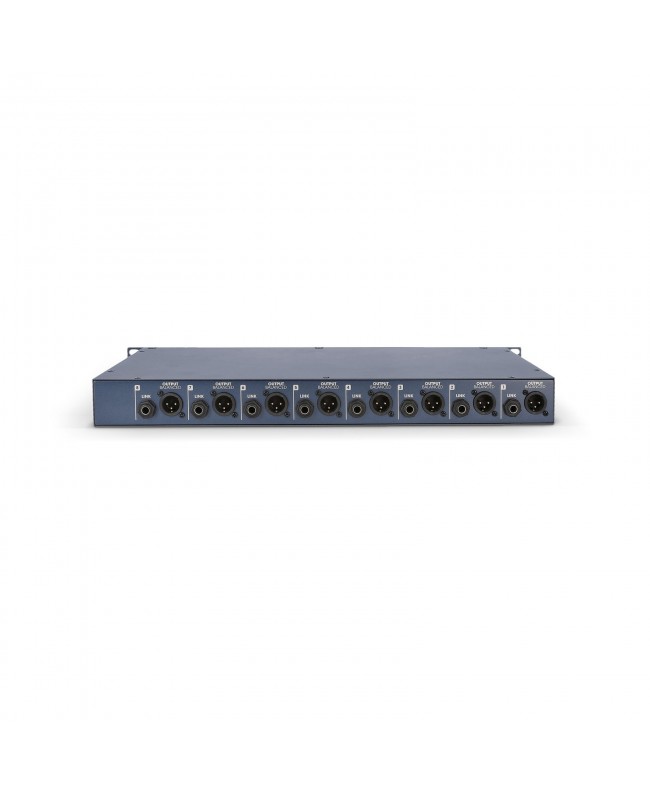

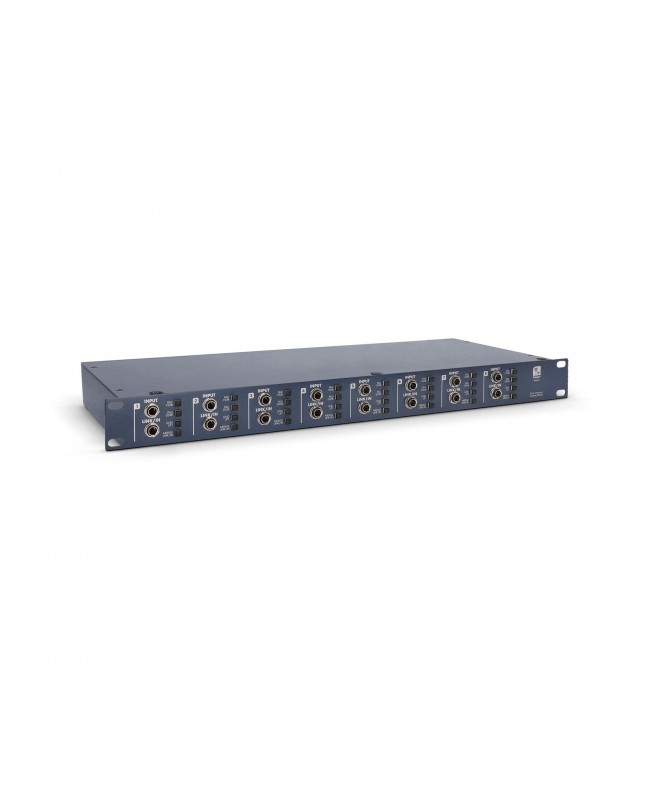

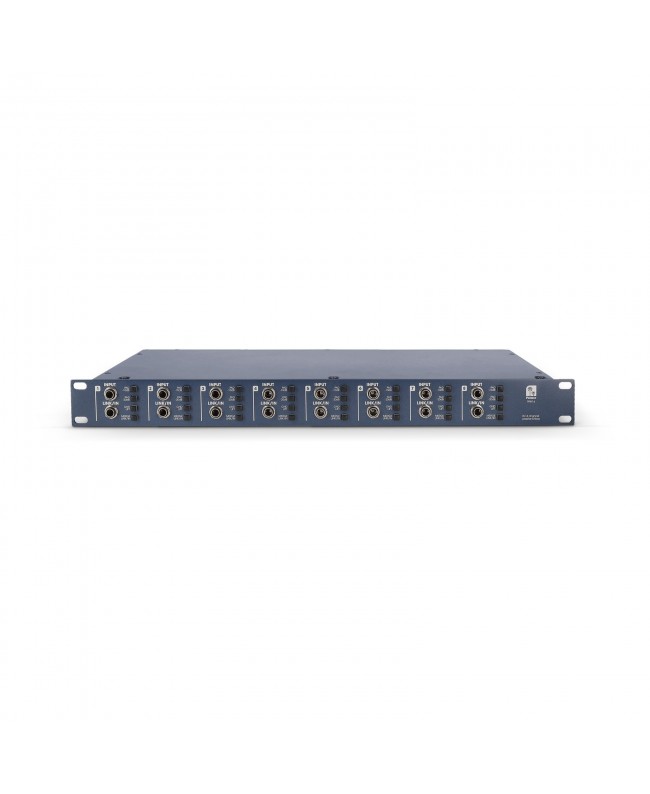

The Palmer PAN16 is an 8 channel passive DI box in a 19 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.

  • 19 passive DI box
  • 8 channels
  • Up to 16 inputs
  • Link Merge function
  • Flexible PAD: -10dB, -20dB, -30dB
  • Transformer balanced and isolated outputs
  • Product type: DI boxes
  • Type: passive
  • Channels: 8
  • Inputs: 8 / 16
  • Input connectors: 6.3 mm jack
  • Max. input level: + 54 dBu
  • Input pad: 0 / -30 dB
  • Number of outputs: 4 (+ 4 Parallel Thru out)
  • THRU outputs/channel: 2
  • Output connectors: 6.3 mm jack
  • Output connectors: XLR
  • Max. output level: +4 dBu
  • Output impedance: 600 Ohm(s)
  • Frequency response: 10 - 40000
  • Transformer balanced: Yes
  • Ratio: 10 : 1
  • Controls: PAD -10dB
  • Controls: PAD -20dB
  • Controls: ground lift
  • Controls: merge
  • Cabinet material: sheet steel
  • Cabinet surface: Powder coated
  • Width: 480 mm
  • Width: 19
  • Depth: 200 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 2,39 kg
