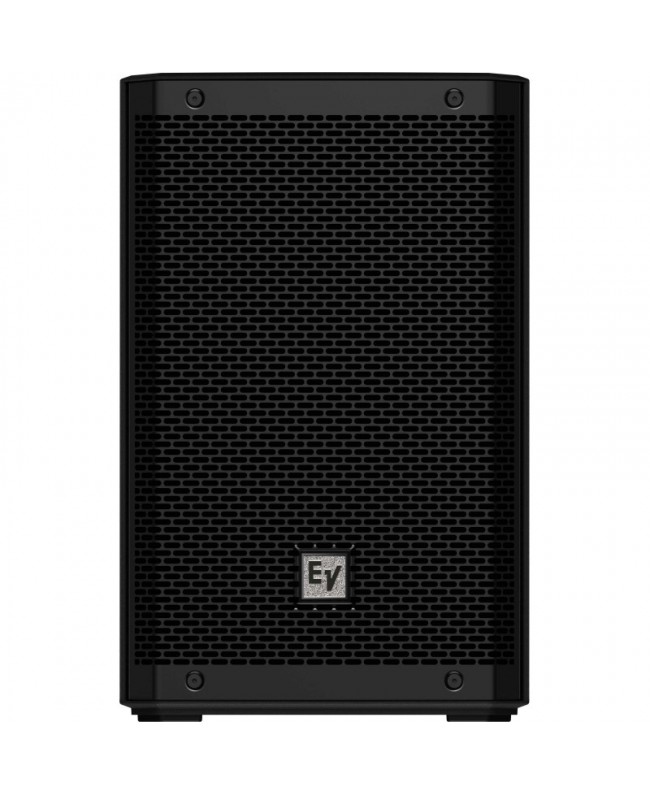

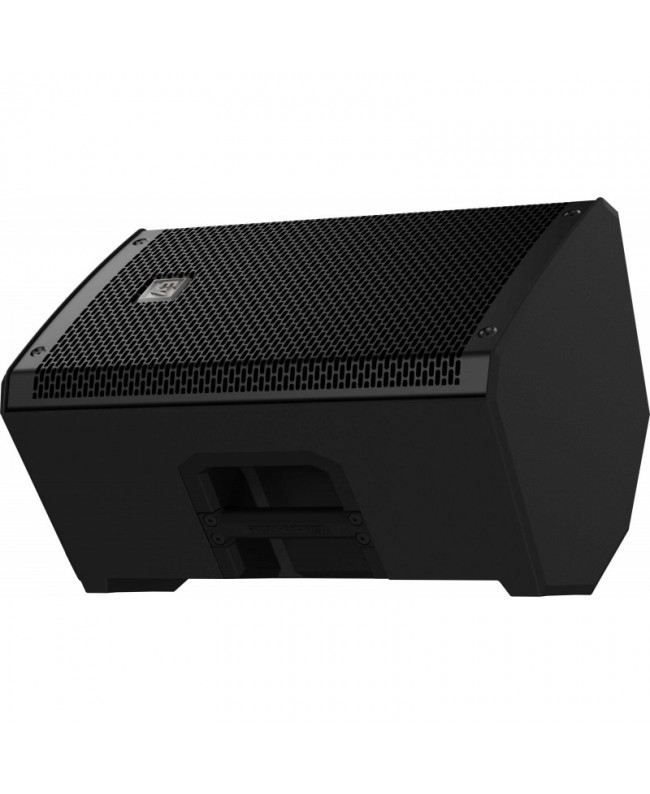

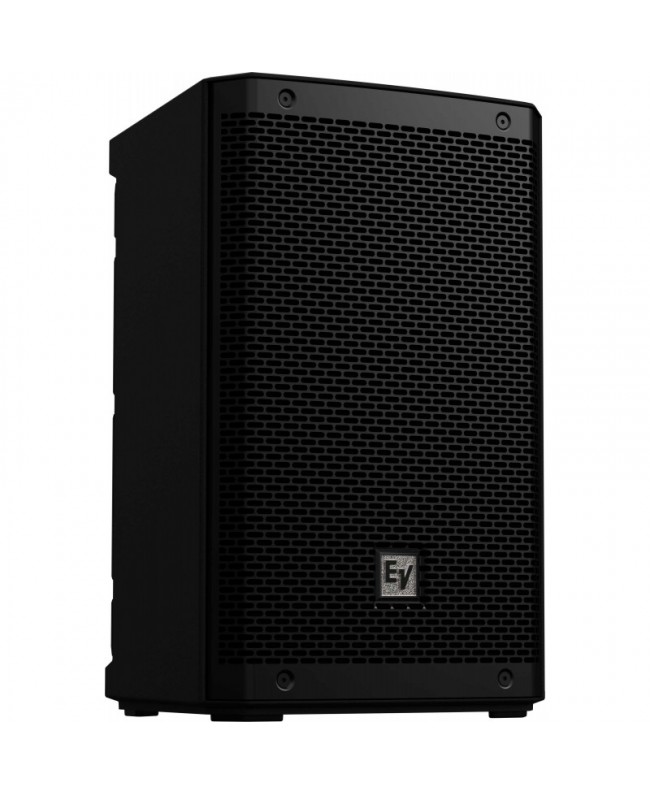

Electro-Voice ZLX-8-G2

Specifications

• Frequency response (-3 dB) (Hz) 1: 58 Hz – 20,000 Hz
• Frequency range (-10 dB) (Hz) 1,2: 50 Hz – 20,000 Hz
• Maximum sound pressure level at a distance of 1 m (dB) 3: 124 dB
• Coverage angle HxV (°) 90° x 60°
• Crossover frequency (kHz) 1.40 kHz
• Power handling (W): 1000 W
• Power consumption (V, Hz) 4: 100 - 240 V~, 50 - 60 Hz
• LF transducer: WECA2088
• LF transducer size (in): 8 in
• LF transducer magnet material: Ferrite
• HF transducer: DECA2516
• HF transducer type: Compression driver
• HF transducer size (in): 1.40 in
• HF transducer magnet material: Ferrite
• HF transducer diaphragm material: Titanium
• Connector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
• Material: Polypropylene
• Grille material: Powder coated steel
• Dimensions (H x W x D) (mm) 459.6 mm x 289.9 mm x 280.5 mm
• Dimensions (H x W x D) (in) 18.09 in x 11.41 in x 11.04 in
• Shipping dimensions (H x W x D) (mm) 500 mm x 390 mm x 350 mm
• Shipping dimensions (H x W x D) (in) 19.69 in x 15.35 in x 13.78 in
• Weight (kg) 10,15 kg
