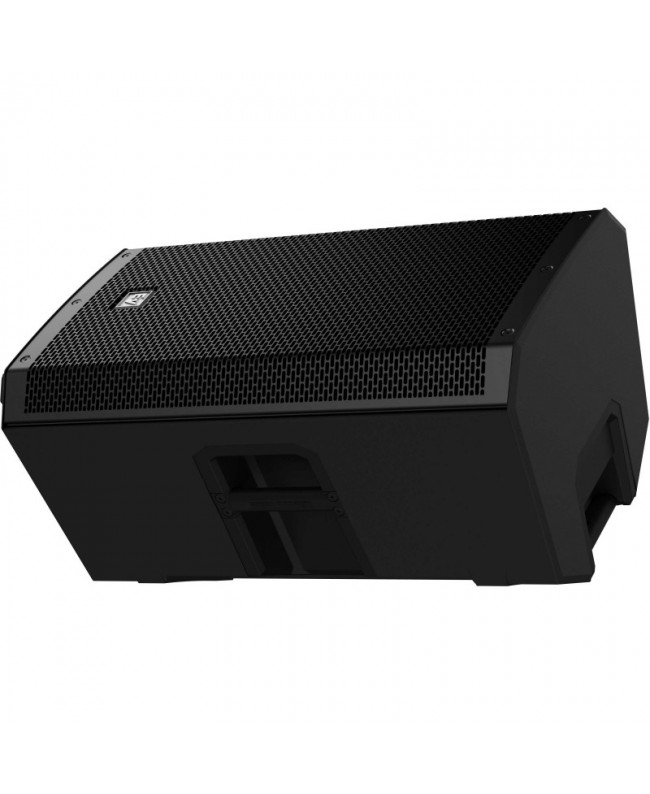

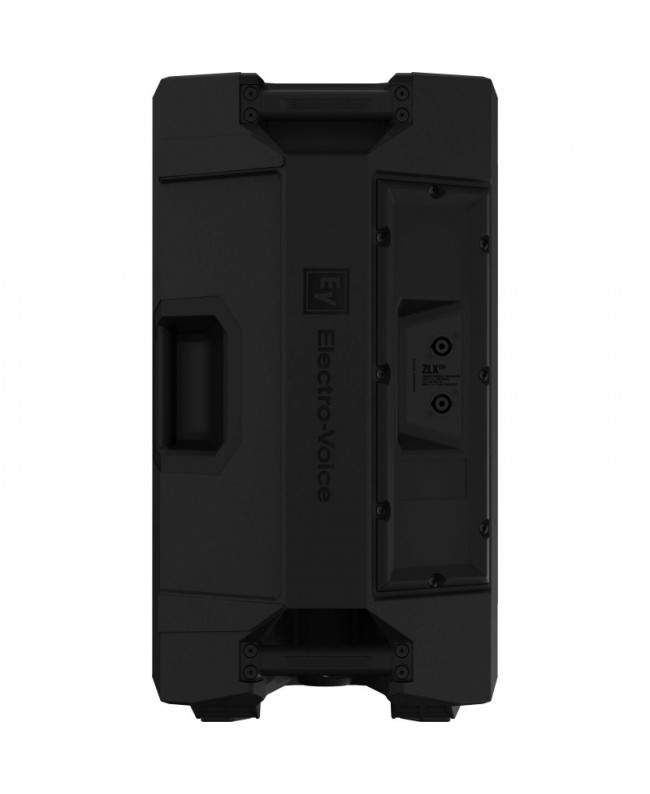

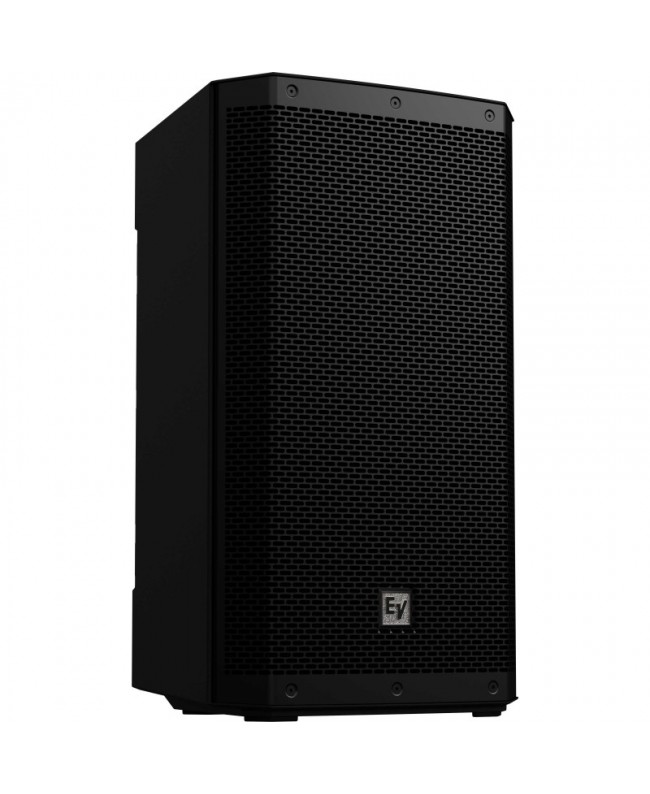

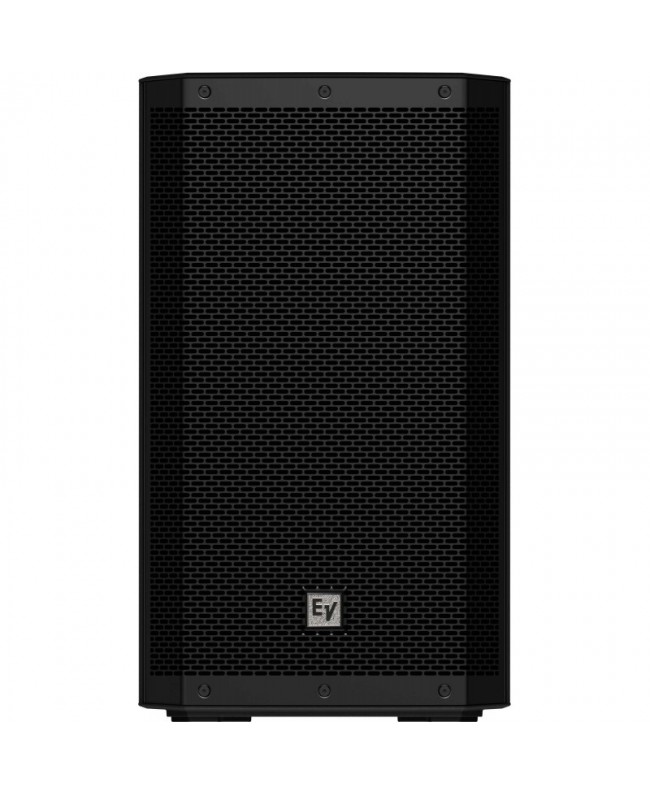

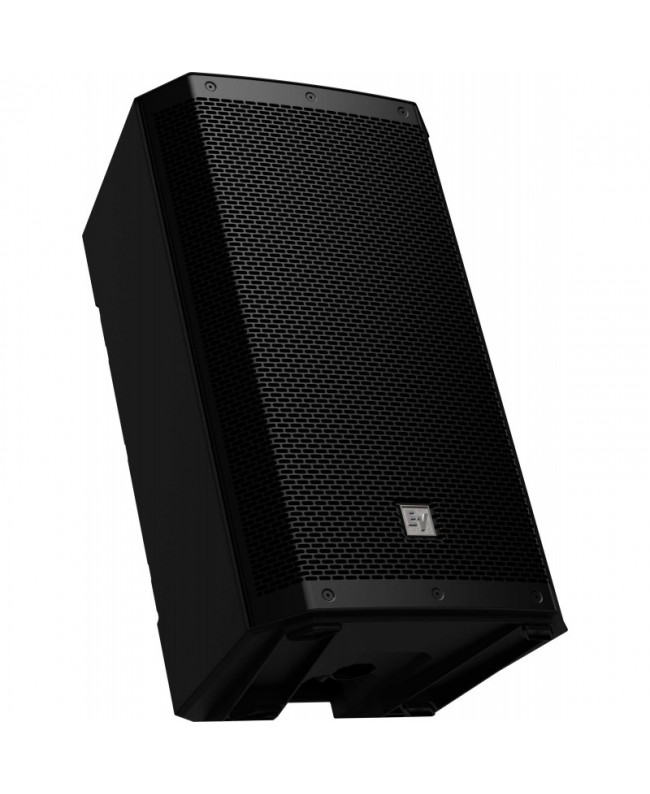

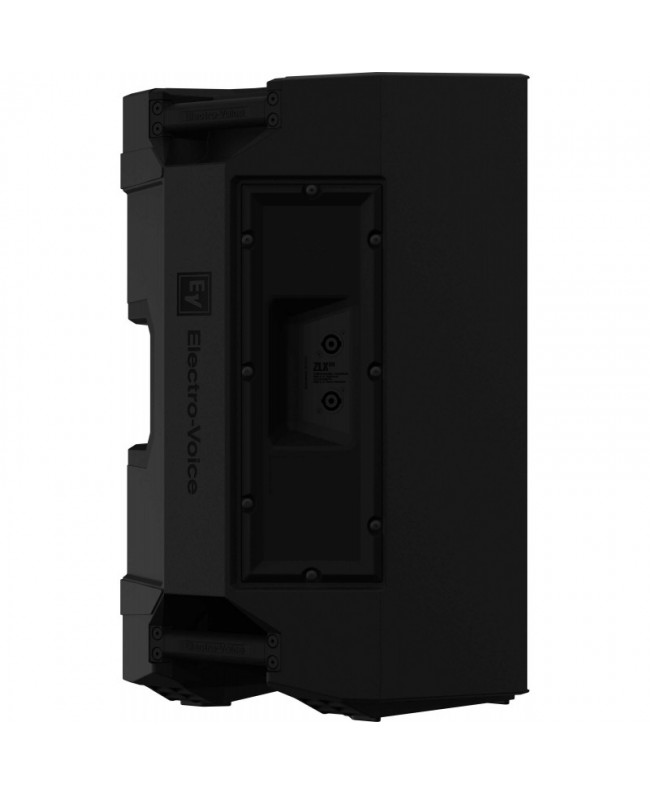

Electro-Voice ZLX-12-G2

Specifications

• Frequency response (-3 dB) (Hz) 1: 54 Hz – 18,500 Hz
• Frequency range (-10 dB) (Hz) 1,2: 48 Hz – 20,000 Hz
• Maximum sound pressure level at a distance of 1 m (dB) 3: 127 dB
• Coverage angle HxV (°) 90° x 60°
• Crossover frequency (kHz) 1.40 kHz
• Power handling (W): 1000 W
• Nominal impedance (Ω): 8 Ω
• Power handling (peak) (W): 1,000 W
• Power handling (continuous) (W): 250 W
• Power consumption (V, Hz) 4: 100 - 240 V~, 50 - 60 Hz
• LF transducer: WECA2128
• LF transducer size (in): 12 in
• LF transducer magnet material: Ferrite
• HF transducer: DECA2516
• HF transducer type: Compression driver
• HF transducer size (in): 1.40 in
• HF transducer magnet material: Ferrite
• HF transducer diaphragm material: Titanium
• Connector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
• Material: Polypropylene
• Grille material: Powder coated steel
• Dimensions (H x W x D) (mm) 621.1 mm x 356.2 mm x 356 mm
• Dimensions (H x W x D) (in) 24.45 in x 14.02 in x 14.01 in
• Shipping dimensions (H x W x D) (mm) 670 mm x 420 mm x 405 mm
• Shipping dimensions (H x W x D) (in) 26.38 in x 16.54 in x 15.94 in
• Weight (kg) 14.8 kg
