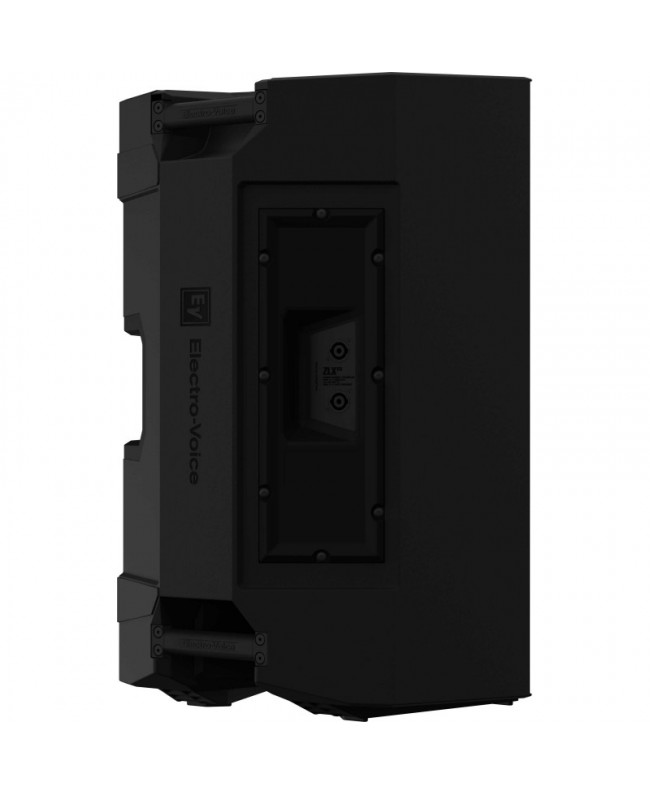

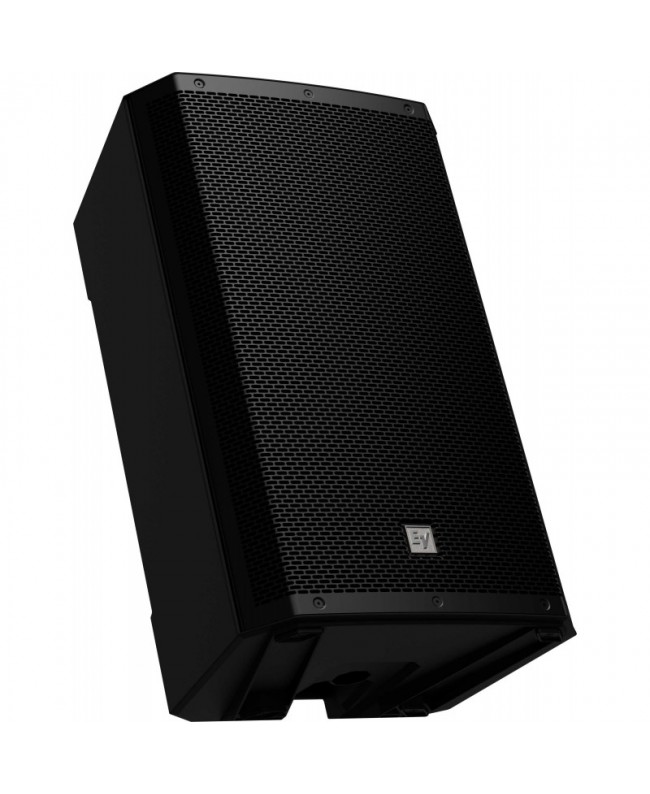

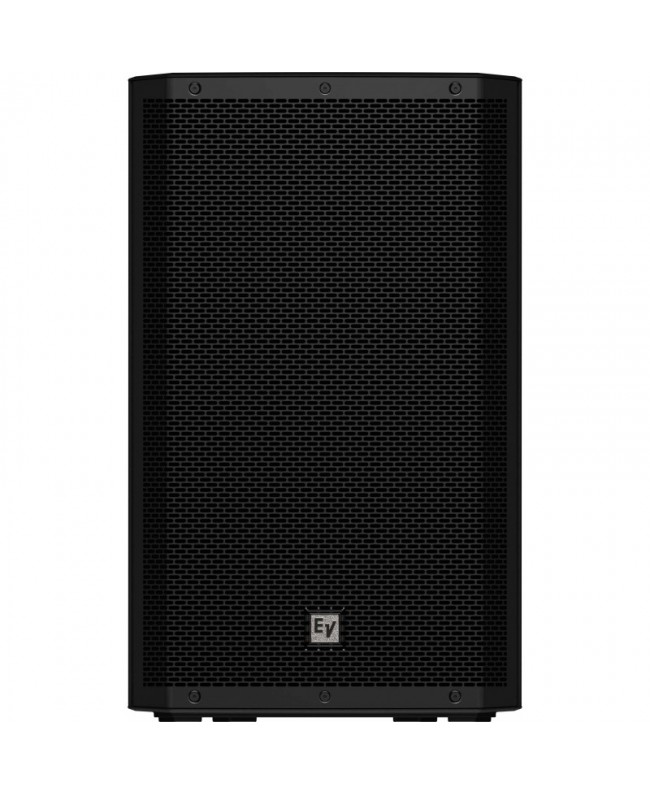

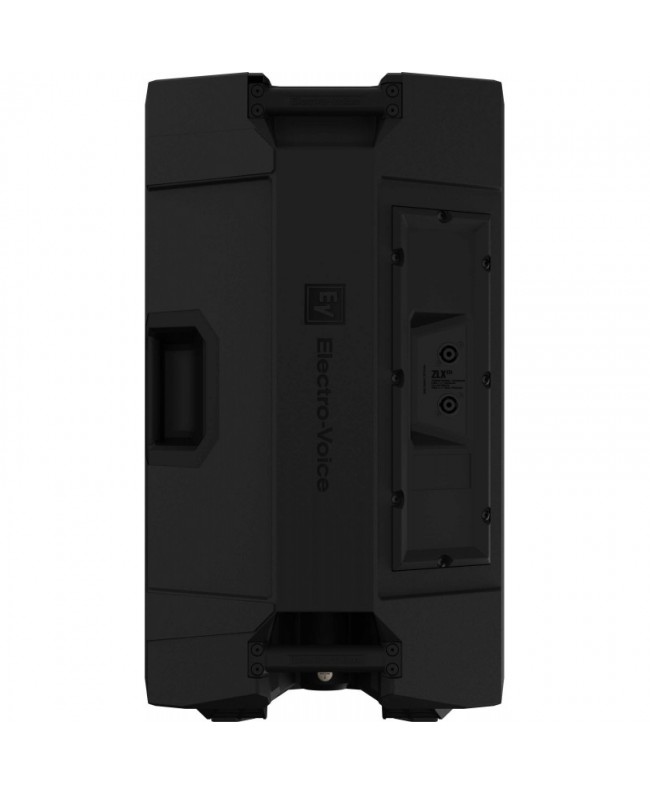

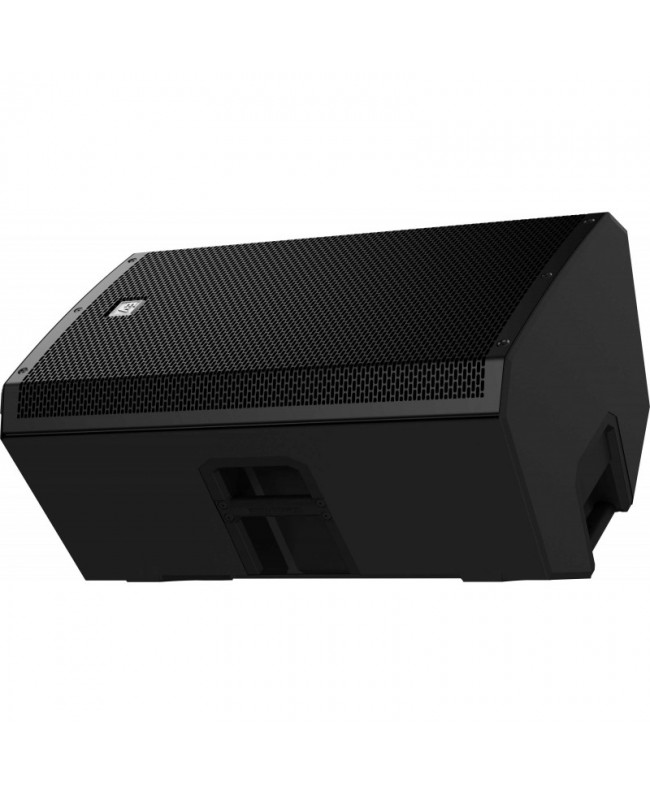

Electro-Voice ZLX-15-G2

Specifications

• Frequency response (-3 dB) (Hz) 1: 48 Hz – 18,000 Hz
• Frequency range (-10 dB) (Hz) 1,2: 42 Hz – 20,000 Hz
• Maximum sound pressure level at a distance of 1 m (dB) 3: 129 dB
• Coverage angle HxV (°) 90° x 60°
• Crossover frequency (kHz) 1.40 kHz
• Power handling (W): 1000 W
• Nominal impedance (Ω): 8 Ω
• Power handling (peak) (W): 1,000 W
• Power handling (continuous) (W): 250 W
• Power consumption (V, Hz) 4: 100 - 240 V~, 50 - 60 Hz
• LF transducer: WECA2158
• LF transducer size (in): 15 in
• LF transducer magnet material: Ferrite
• HF transducer: DECA2516
• HF transducer type: Compression driver
• HF transducer size (in): 1.40 in
• HF transducer magnet material: Ferrite
• HF transducer diaphragm material: Titanium
• Connector type: (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z
• Material: Polypropylene
• Grille material: Powder coated steel
• Dimensions (H x W x D) (mm) 697.6 mm x 422.8 mm x 383.1 mm
• Dimensions (H x W x D) (in) 27.46 in x 16.65 in x 15.08 in
• Shipping dimensions (H x W x D) (mm) 765 mm x 490 mm x 490 mm
• Shipping dimensions (H x W x D) (in) 30.12 in x 19.29 in x 19.29 in
• Weight (kg) 16.78 kg
