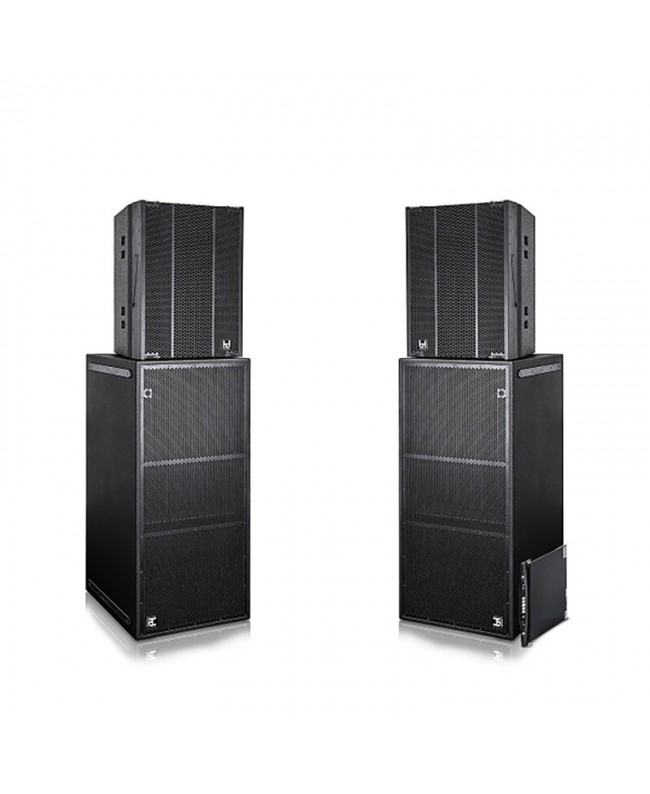

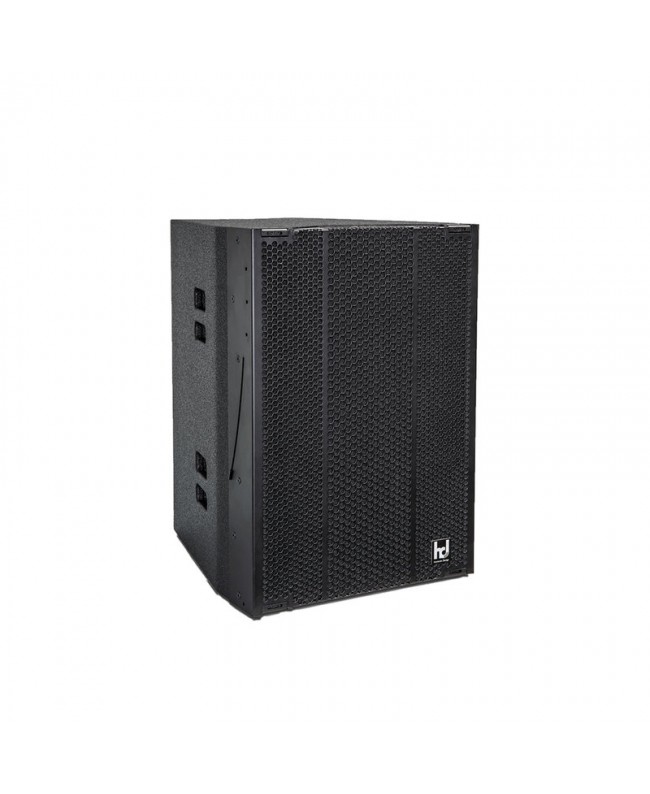

Harmonic Design HLS24P-LT


€7,034.00
Tax included

1200 W HybridLineSource loudspeaker, 2 x 12 LF + 4 x 1.4 HF, 100° x 15° coverage, rigging, incl. passive crossover 4 ohm, long throw element


Out of Stock

Free shipping


wishlist

Harmonic Design HLS24P-LT



The HD HLS24-LT is a 2-way line array loudspeaker with two 12 and #34; woofers and four 1.4 and #34; tweeters, high-performance, similar to the HD HLS24 but with a long throw thanks to its special dispersion characteristics. It is suitable for medium to large sound reinforcement applications.

Based on the globally unique Hybrid. Line. Source technology developed by Harmonic Design, the loudspeaker can be used as a pure array with up to six HD HLS24-LT modules or as a mixed array with HD HLS24 modules. Thanks to the vertical directivity of only 15°, applications with large distances and up to 25,000 people can be covered. With the Hybrid. Line. Source system components, configurations that are optimally adapted to the application can be created at any time.

The drive is via amplifiers from the Harmonic Design system and guarantees outstanding performance and compatibility even under adverse conditions, as well as maximum efficiency in terms of energy consumption and output power. Up to two loudspeakers per channel can be operated via Harmonic Design system amplifiers. The passive crossover with optimized phase allows quick and easy operation on a single amplifier channel.

  • Main features
  • 2-Way passive speaker with 2 x 12 woofers and 4 x 1.4 tweeters
  • 100° X 15° coverage

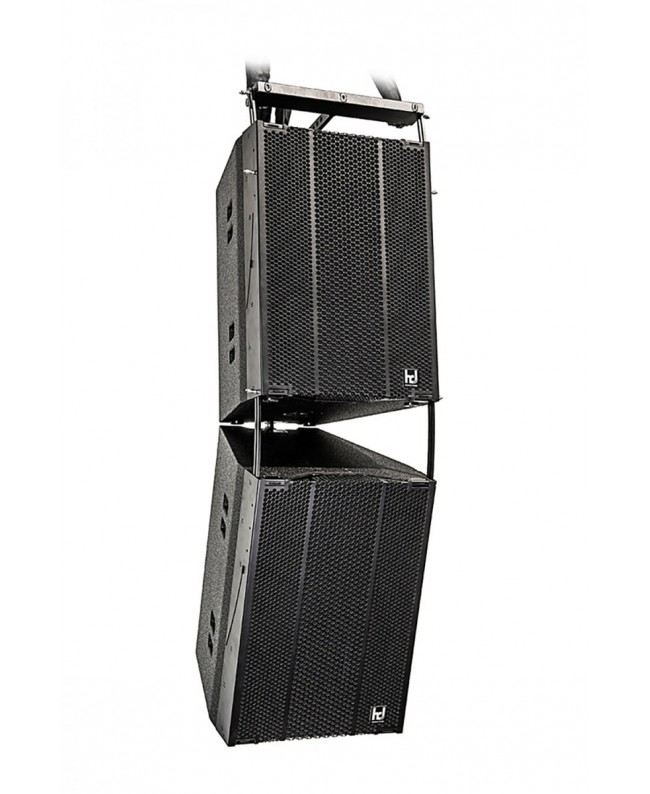

  • Up to 6 elements array
  • Compatible with HLS24 in the same array
  • Passive crossover
  • Weight 47 kg

Technical characteristics

  • Principle: bass-reflex system / hybrid horn
  • Transducers: 2 x 12 N LF / 4 x 1.4 N HF
  • Crossover: passive, 900 Hz
  • Power handling: 1200 WRMS / 4800 W peak
  • Frequency response: 60 - 20,000 Hz
  • Sensitivity: 108 dB/W/m
  • SPL max: 144 dB
  • Nominal dispersion angle: 100° x 15° (H x V)
  • Nominal impedance: 4 ohm

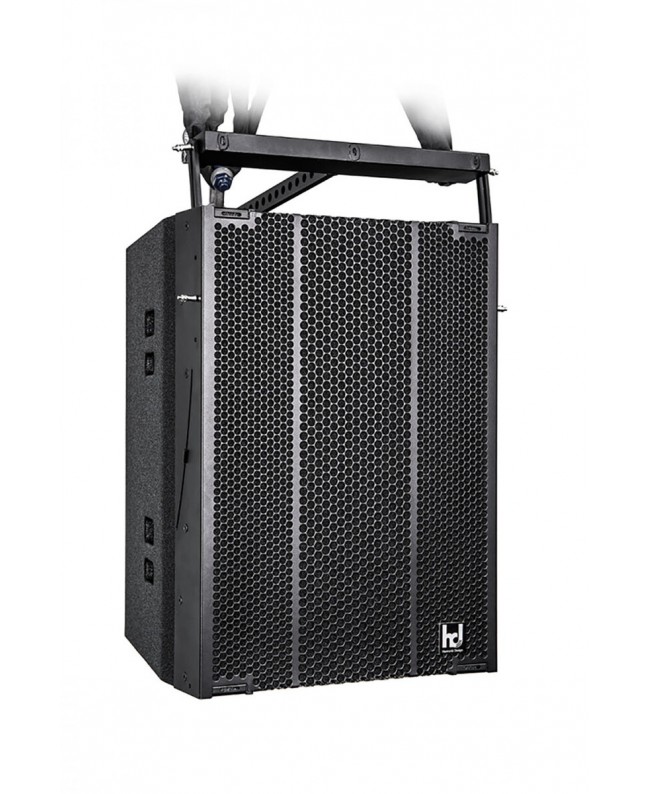

  • Enclosure: 15 mm multiplex birch wood, polyurea plastic coating black, steel grille coated, acoustic foam, ergonomic transport handles, 35 mm flange, integrated 3-point FastRig rigging
  • Connections: 2 x speakON NL4
  • Dimensions: 480 x 687 x 560 mm
  • Weight: 47 kg
  • Options: installation version, hd HLS24-RF3, hd UniFrame16, transport protection cover, hd TourCase, RAL color, weather protection

HDE-60117
