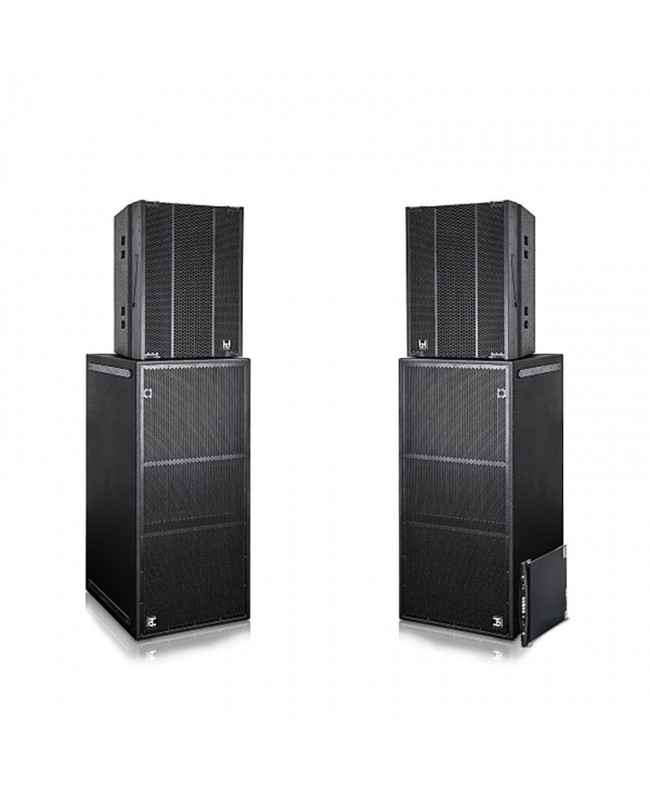

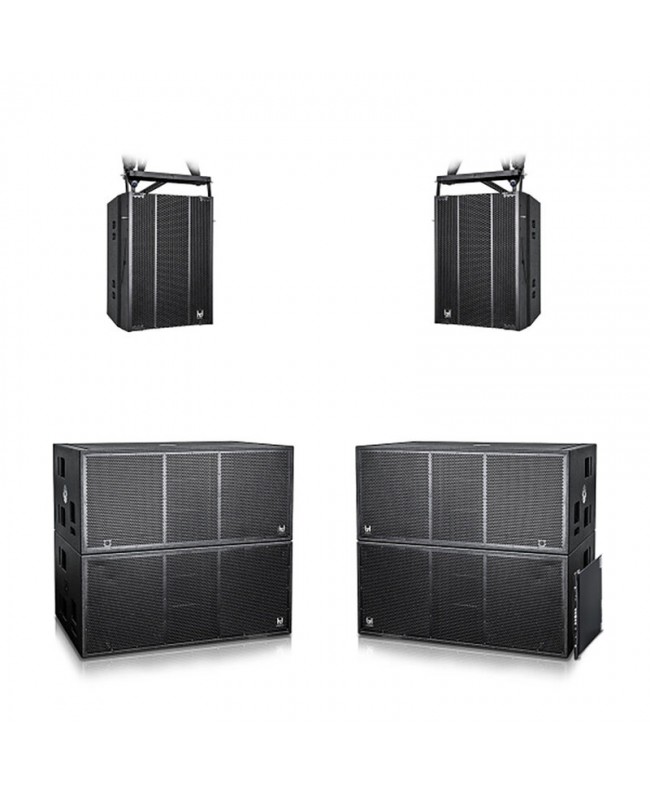

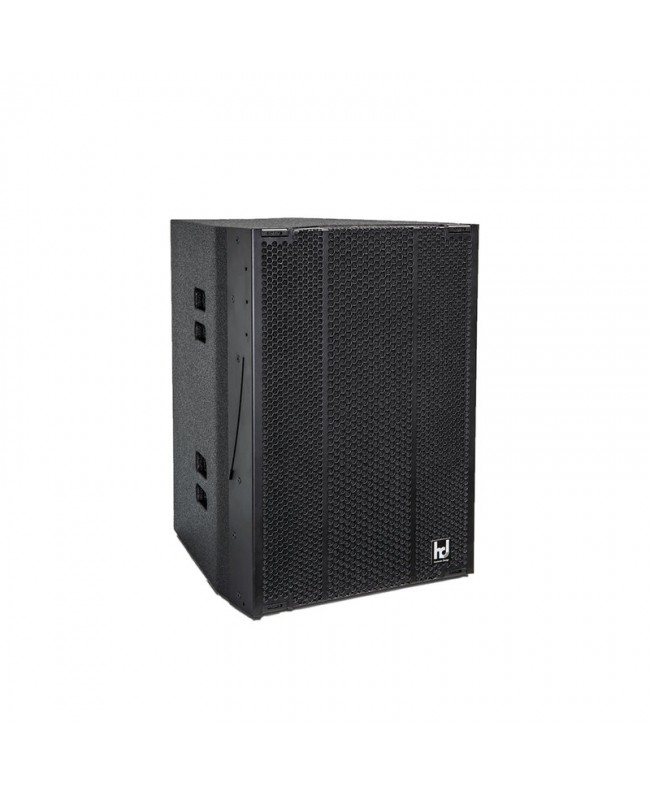

Harmonic Design HLS24P

Hybrid. Line. Source Series 2-way passive loudspeaker, with internal passive crossover, designed to offer high quality audio performance in various applications.

It uses two 12 and #34; woofers with neodymium magnet and four 1.4 and #34; compression tweeters, which together ensure uniform sound coverage. The Line. Source type HF unit is made up of speakers equipped with a special polymer diaphragm that coupled with the waveformers generates a cylindrical wave front with a vertical opening angle of 40°. Therefore, the Hybrid. Line. Source system throw is comparable to that of a Line Array.

With a nominal power of 1200 W and a peak power of 4800 W, the loudspeaker is capable of handling high sound pressure levels. It offers a coverage angle of 100° x 40°, ideal for a wide and controlled distribution of sound energy.The world and #039;s unique Hybrid. Line. Source technology contributes to clear and precise sound reproduction without distortion. It achieves an efficiency of 108 d. B/W/m in the mid / low range. It also drastically reduces the space required for transporting the system.

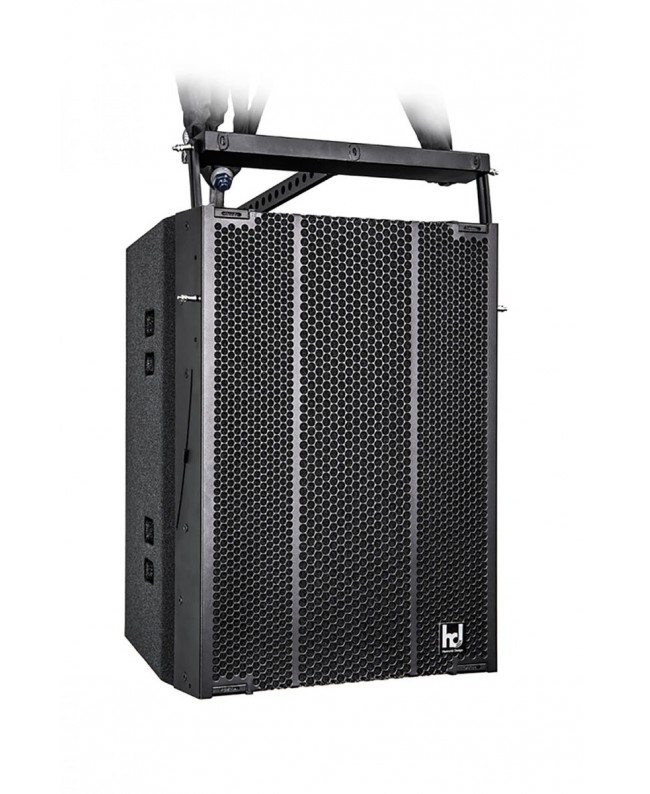

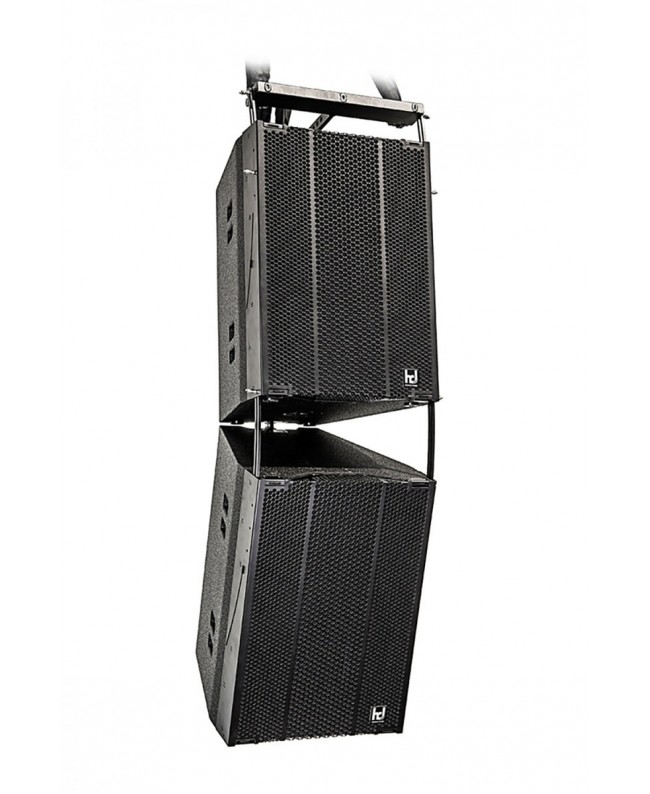

Hd HLS24P features an integrated Fast. Rig 3-point rigging system, which makes it easy to set up and position the speaker. Using the Fast. Rig anchoring system, the angle between the individual speakers can be precisely adjusted from 0° to 16° in 4° increments. It is designed to deliver undistorted sound up to 144 d. BSPL, making it suitable for live events, fixed installations and other professional applications. The special Super Vented design enables, in applications without additional subwoofers, dynamic and wideband reproduction up to 70 Hz in full-range mode.

• Main features
• 2-Way passive speaker with 2 x 12 woofers and 4 x 1.4 tweeters
• 100° X 40° coverage
• Undistorted sound up to 144 d. B
• Innovative hybrid horn, bass-reflex, coaxial, line array design
• Integrated 3-point Fast. Rig
• Passive crossover
• Weight 46 kg
