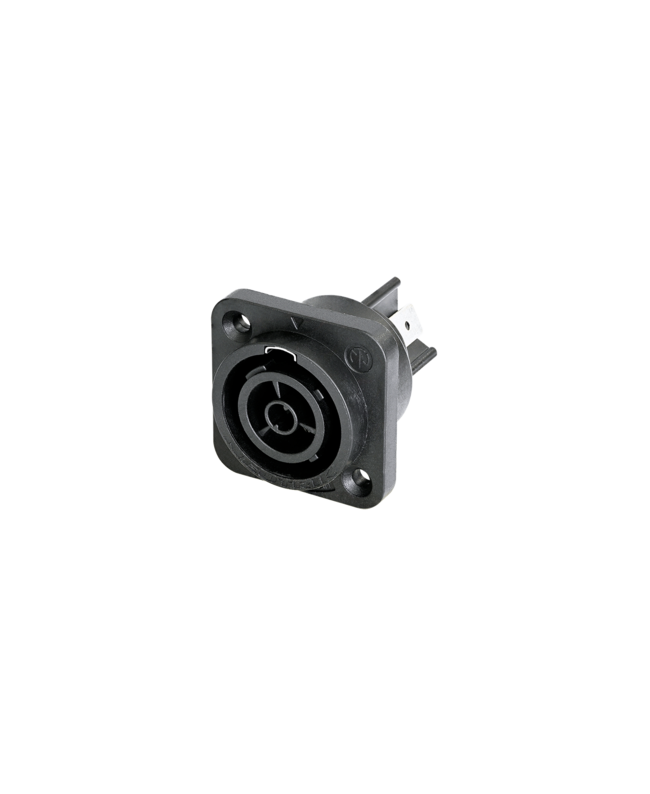

NEUTRIK NAC3FPX-TOP Power Twist TRUE Chassis Connectors
  • -5%

NEUTRIK NAC3FPX-TOP

€7.90
€7.60 -5%
Tax included
Lowest price within the last 30 days: €7.60

PowerCON TRUE1 TOP Chassis Connector

Qty

In Stock

Delivery

Do You want Your order by Thursday, 24/04/2025? Order within 4 hours and 55 minutes

In Store Pick Up

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

NEUTRIK NAC3FPX-TOP



The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Technical Information

  • Product
  • Title NAC3FPX-TOP
  • Electrical
  • Contact resistance ≤ 2 mΩ
  • Dielectric strength 4 kVdc / 2.8 kVac
  • Insulation resistance > 1 GΩ (after damp heat test)
  • Number of electrical contacts 2 + PE
  • Rating Europe EN 60320-1: 16 A 250 V AC
  • Rating USA UL 498: 20 A 250 V AC
  • Mechanical
  • Lifetime > 5000 mating cycles
  • Wiresize 2.5 mm²
  • Wiresize 12 AWG
  • Material
  • Contact plating 2 µm Ag
  • Locking element Stainless steel
  • Shell Polyamide (PA 6.6)
  • Contacts Spring Copper (CuSn0.2)
  • Environmental
  • Flammability UL 94 V-0
  • Protection class IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
  • Temperature range - 30 °C - +80 °C

NENAC3FPXTOP

Data sheet
