Featured Products

Datavideo HS-1300 Production Mixers & Switchers
  • -26%
  • New

Datavideo HS-1300

€6,891.00
€5,127.00 -26%
Tax included
Lowest price within the last 30 days: €5,127.00

6-Channel HD Portable Video Streaming Studio

Out of Stock

Free shipping

Compare

wishlist

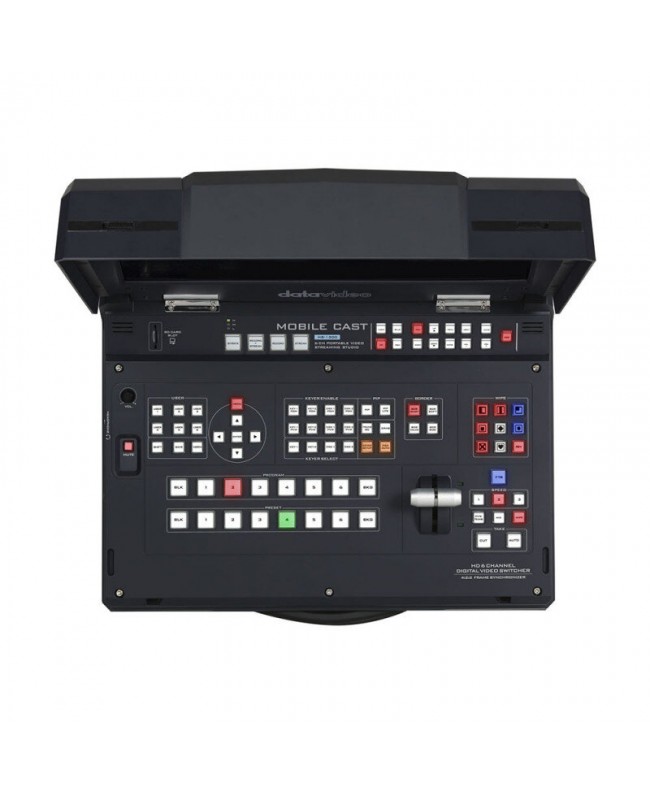

Datavideo HS-1300



The HS-1300 brings a new level of simplicity to production workflows. You and #039;ll set up faster and easier thanks to its portable and #34;briefcase and #34; design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like You. Tube and Facebook in no time.

Compact design suited for medium-sized productions. The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs (SDI x 2 and #43; HDMI x 3)

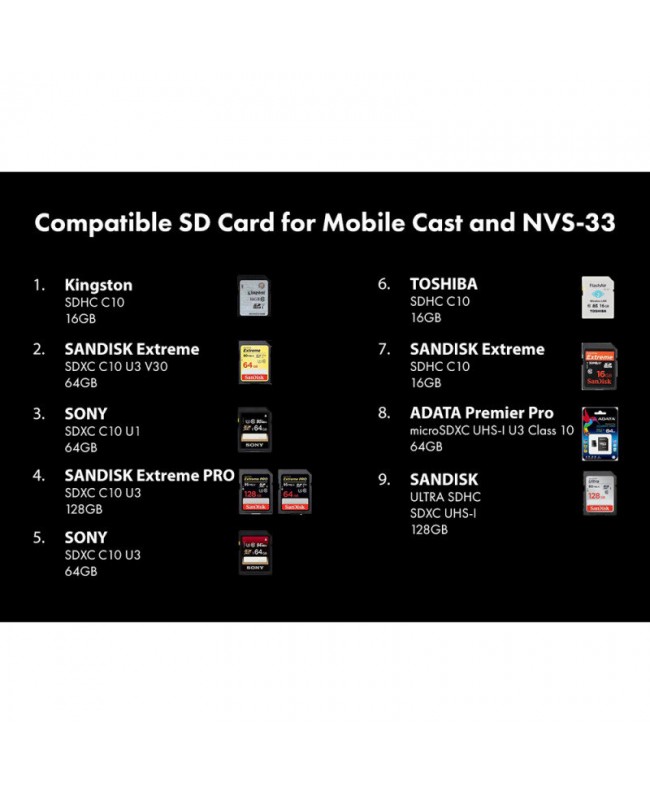

Built-in H.264 recorder for SD cards. The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you and #039;ll have video files that can be immediately uploaded to the video network of your choice or to your website.

Streaming to Facebook Live, You. Tube, Twitch, and more. It also supports different bit-rate for recording to SD card and streaming function.

Built-in virtual set bac kgrounds. Choose between a variety of pre-saved virtual set bac kgrounds.

Built-in 9 animations. Choose between a variety of pre-saved animated stinger transitions for your show.

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

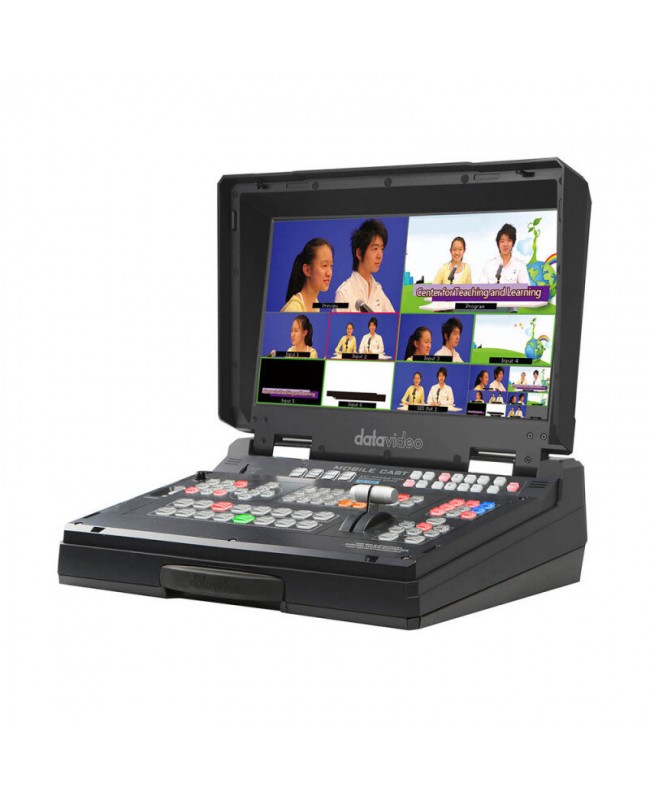

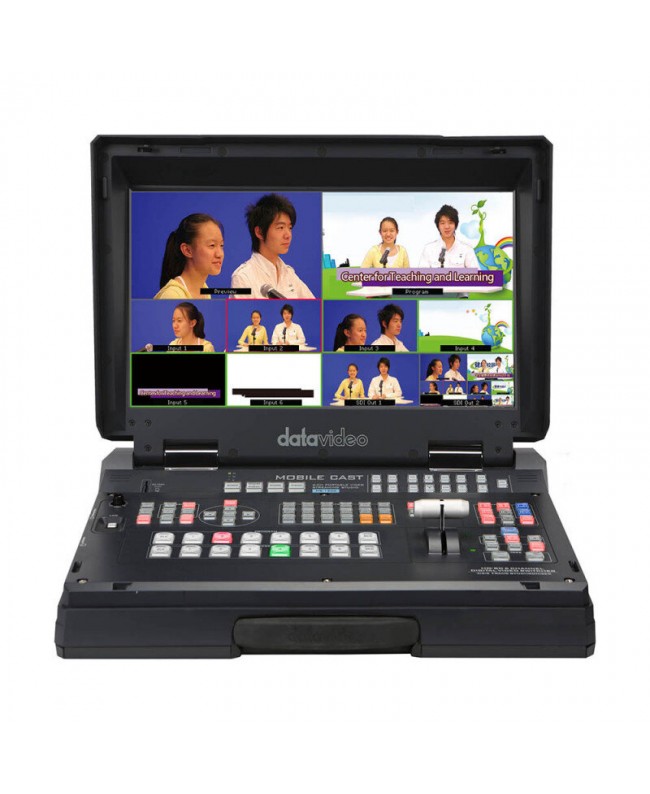

Built-in Monitor Display. 17.3 and #34; HD TFT LED backlit monitor with resolution of 1600x900.

  • Video Standard: HD
  • Video Format: 1080i 50/59.94/60 Hz
  • 720P 50/59.94/60 Hz
  • Input Routable / Crosspoint: All 6, repeatable

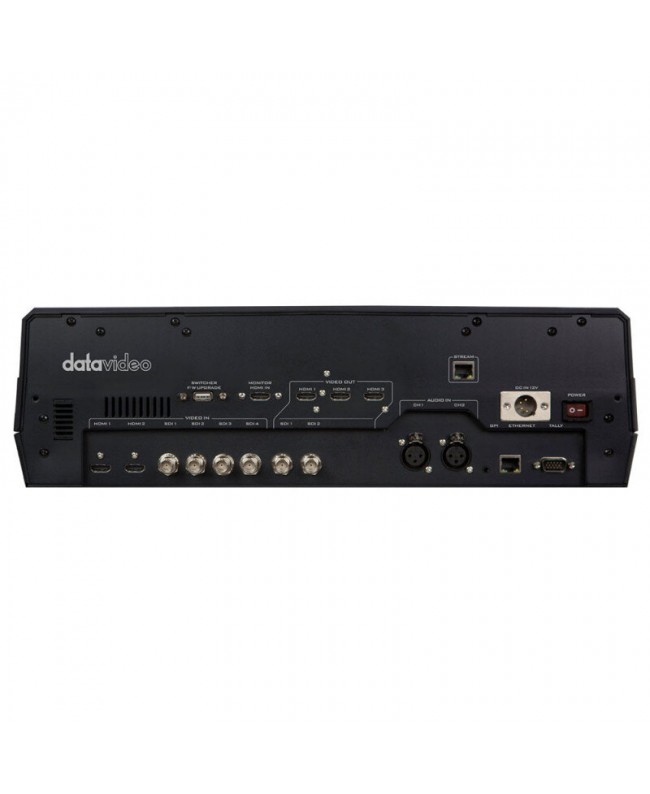

  • Video Input: 4 x HD-SDI
  • 2 X HDMI
  • Computer Graphic Interface: 2 via HDMI
  • Down-converted Output: N/A
  • Video Output: 3x HDMI
  • 2X SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
  • Audio Input: 2x Balanced XLR
  • Audio Output: 1x Stereo headphone
  • Digital Embedded Audio Support Input: Input 2 channels, Output 2 channels
  • A+V Switching: Yes
  • USK: 2x USK support Chromakey
  • DSK: 2, support Lumakey and Linear key (Key / Fill)
  • Picture in Picture: 1
  • Logo Insertion: N/A
  • Built-in Audio Mixer: N/A
  • Built-in Monitor Display: 17.3 HD TFT LED backlit, 1600x900 pix
  • Built-in Intercom and Tally: N/A
  • Streaming Video Encode: H.264 / AVC, Main/ High Profile
  • Configurable Bit-rate up to 10Mbps
  • Streaming Audio Encode: AAC-LC
  • Configurable bit rate range from 32Kbps to 384Kbps
  • Sample rate: 48 kHz, 16bit
  • Streaming Protocol: TS over TCP/UDP (unicast and multicast)
  • RTSP over HTTP/TCP/UDP
  • RTMP/RTMPS (Publish)
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT, exFAT, NTFS
  • Recording File Format: MP4
  • Recording Setting Control: Web UI for system configuration and control
  • Special Features: Streaming encoder and recorder
  • 2 Chromakey virtual studio
  • 9 Stinger transition and 30 virtual sets included
  • Dimension (L x W x H): 455 x 355 x 134 mm
  • Weight: 16.3 Lbs (7.4 kg), Reinforce Plastic Case
  • Power: DC 12 V, 5A
  • Operating Temp. Range: 0~40 °C
  • Options: CB-22H/23H/46/47/60/61/62
  • Content: 1 x HS-1300 Product
  • 1 X AD Switch DC 12 V with AC Cord
  • 1 X Thank You Card

DTV-2200-2016
