Datavideo OBV-3200 Production Mixers & Switchers
  • -26%
  • New

Datavideo OBV-3200


€50,843.00
€37,836.00 -26%
Tax included
Lowest price within the last 30 days: €37,836.00

Mobile Production System, 2 racksystem


Out of Stock

Free shipping


wishlist

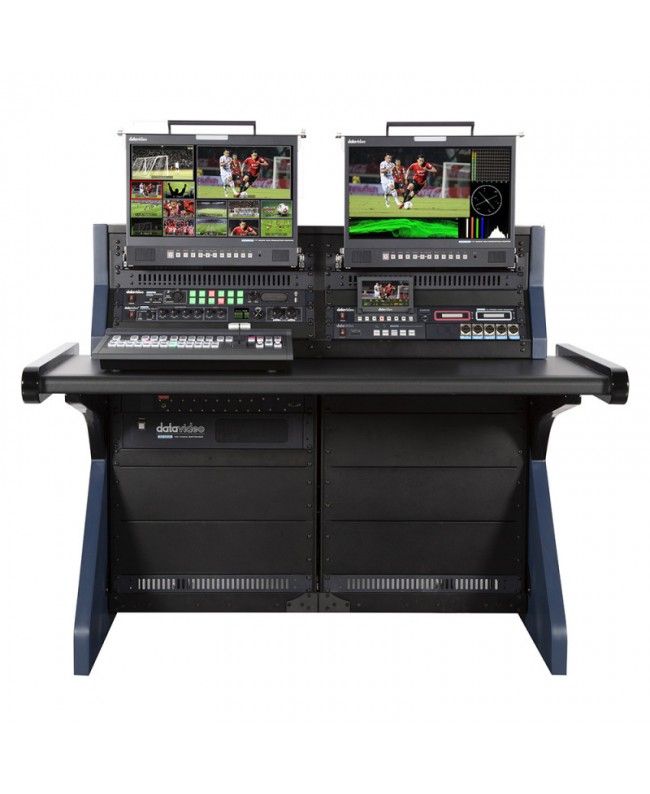

Datavideo OBV-3200



Compact transportable solution for both in-studio and on-location productions. A complete solution that is equipped with a switcher, intercom, camera control, recording, streaming, audio delay, scope view monitor and power supply.

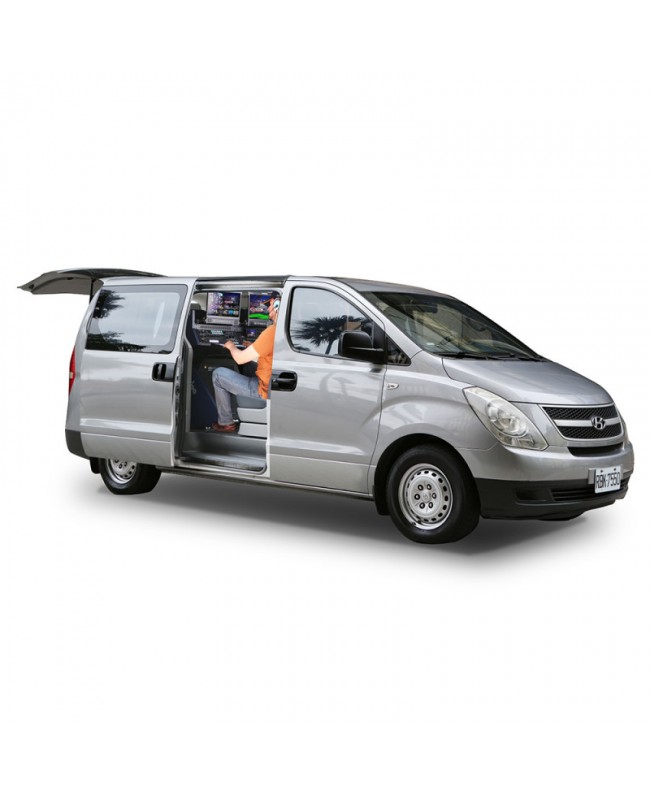

A Real Mobile Studio for your needs. Mobile Video Studios are all-in-one video production studios in a rugged aluminum case and can be customized to fit in an OB Van.

Suitable for large-sized productions. The OBV-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.

17.3'' Full HD Pull-Out Monitor. Support column (YRGB peak), time code, waveform, vector scope and audio level meter, peaking, zoom, pix to pix, underscan, check field.

Rackmountable 8 channels intercom system. The ITC-300 provides 8-Way talkback and bi-color tallyindicators.

Built-in camera control. Control up to 4 cameras from one CCU-200 Camera Control Unit combined with the supplied AD-3 units.

UHD 4K Recording and Compressed in 10-Bit 4:2:2 Pro. Res and H.264 streaming and recording simultaneously. All with a large 5 LCD Touch screen for operating and monitoring.

Multiple accessories available including audio mixers, camera control, test and measurement tools and more.

  • Digital Video Switcher: SE-3200
  • Rack Mount LCD: TLM-170VM x2
  • Recorder: HDR-90 x1 (OBV-3200A)
  • HDR-70 x1, HDR-90 x1 (OBV-3200B)
  • Intercom/tallySystem: ITC-300 w/ 4 Belt Packs
  • Vector Scope: Built-in TLM-170VM
  • Audio Mixer: AD-200
  • Power Distributor: PD-2 A
  • Camera Control System/Multi-camera Control Unit: CCU-200
  • MCU-400 / MCU-200 (optional)
  • H.264 Video Streaming Server: NVS-33 x1 (OBV-3200A)
  • NVS-40 x1 (OBV-3200B)
  • Rack System Integration: 17RU Mobile Rack Table
  • Weight: 118 kg
  • Operating Temp. Range: 0~40 °C
  • AC Power Distributor: PD-5
  • SDI/CV/ITC/DC Cable: CB-66
  • HDMI Cable: CB-60/61/62 (30m/50m/100m)
  • What's in the Box: 1 x OBV-3200 product
  • 4 X AD-3 Unit
  • 4 X RMC-240 Unit
  • 5 X Headset
  • 1 X USBLED light
  • 4 X φ3.5 Plug to φ3.5 Plug Cable
  • 4 X φ2.5 Plug to φ3.5 Plug Cable
  • 2 X AC Power Cord
  • 5 X 120 mm cable tie
  • 10 X 200 mm cable tie
  • 1 X Y type 2 pin MOLEX cable
  • 2 X 2.5 HDD enclosure
  • 2 X ISO screw 2*6mm
  • 4 X Cable and Cable Reel
  • 1 X SATA to USB Cable
  • 2 X HD sticker
  • 1 X Thank You Card

DTV-2200-3201
