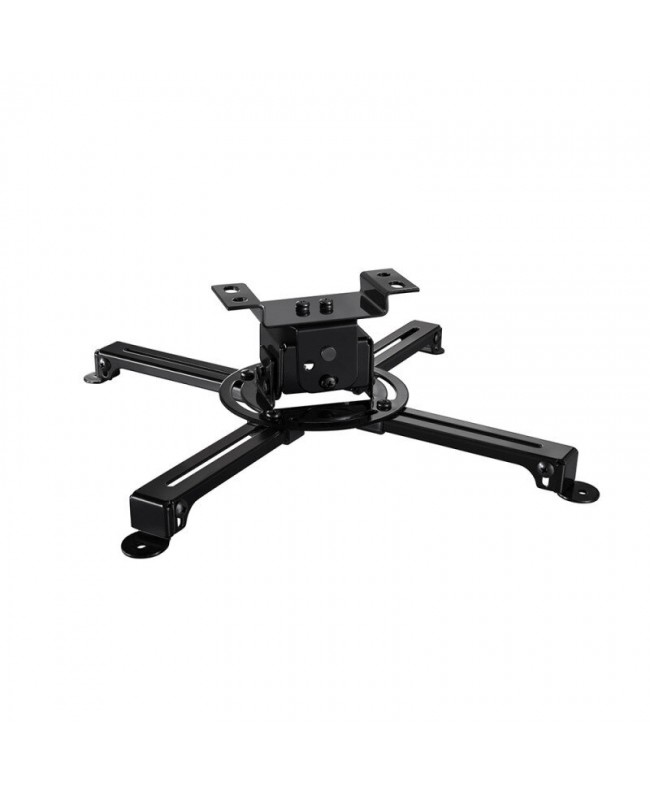

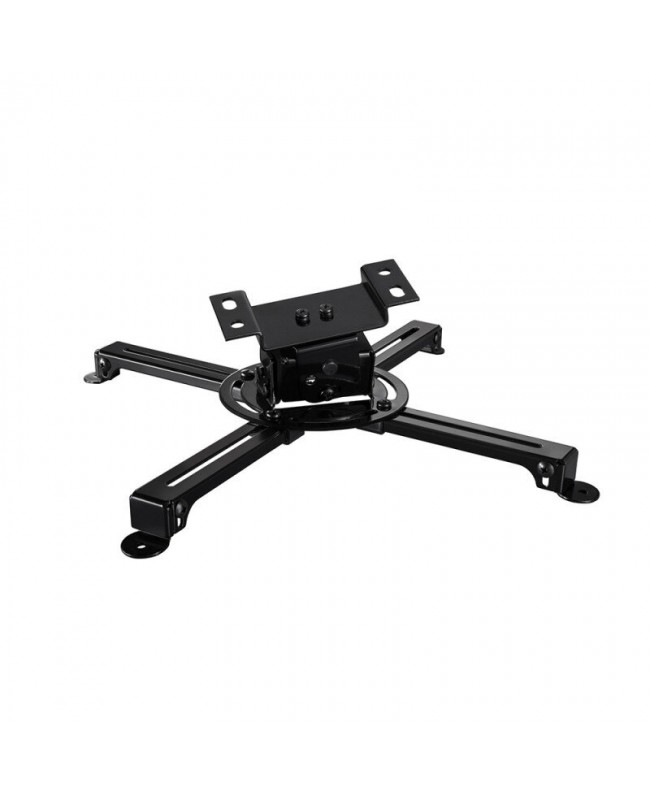

celexon 1091346

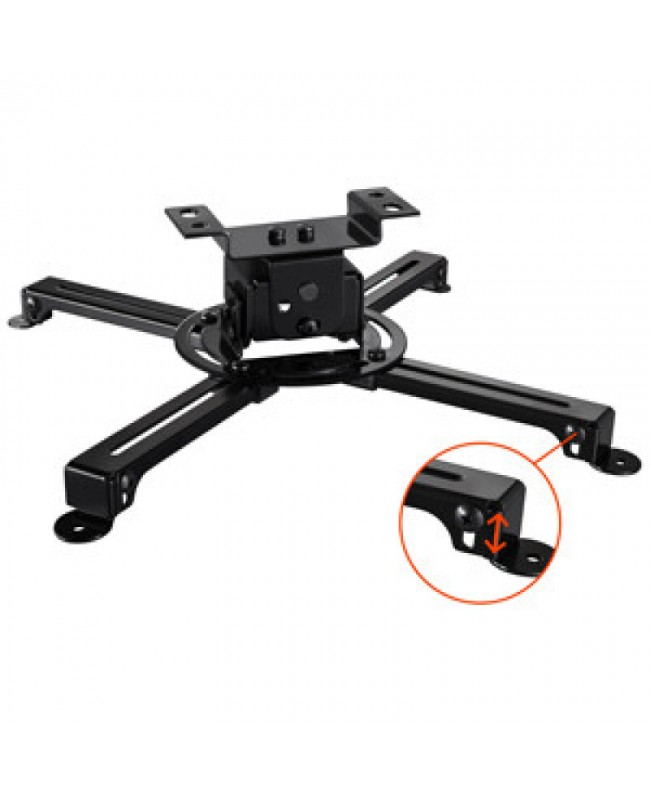

The universal supports of the Multi. Cel Professional series are compatible with allmost projectors on the market. The arms are equipped with an integrated height adjustment system to compensate for any irregularities on the underside of the projector and ensure its ventilation. The universal mounting plate allows the bracket to be fixed even on inclined surfaces. The rosette cover allows you to hide the mounting plate and the hole in the ceiling.

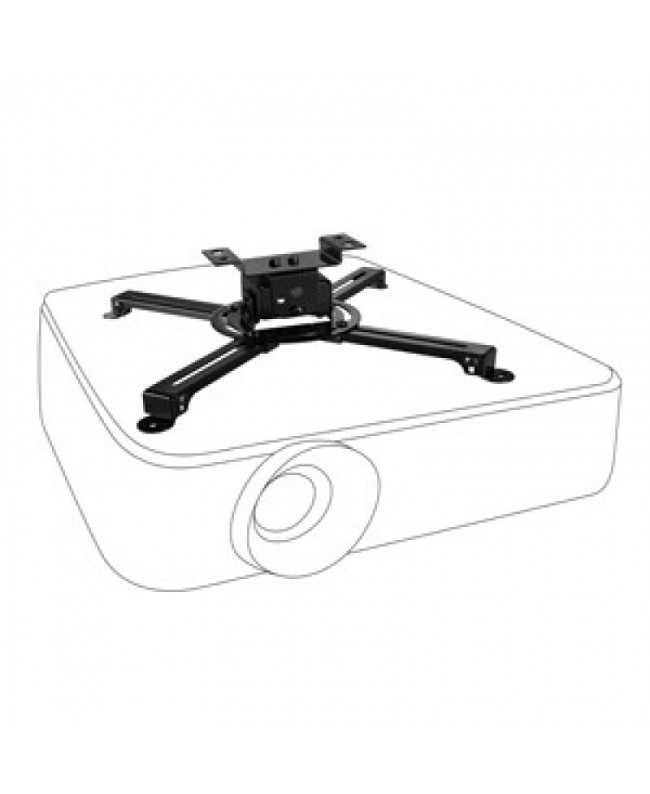

The angle of the support can be adjusted in two points with a Phillips screwdriver, easily available on the market. The projector is fixed to the support by means of arms equipped with plates at the ends which, in case of maintenance, allow to easily unhook the projector without removing the entire support. The extension tube allows the wiring to pass through it. The presence of a removable bezel also allows the passage of cables with large plugs.

Please note: the supplied mounting kit is only suitable for concrete or stone ceilings. Otherwise, for plasterboard, wood or other materials it is necessary to have suitable mounting material.

• Main features
• Only 10 cm distance to ceiling
• Compatible with most common projectors

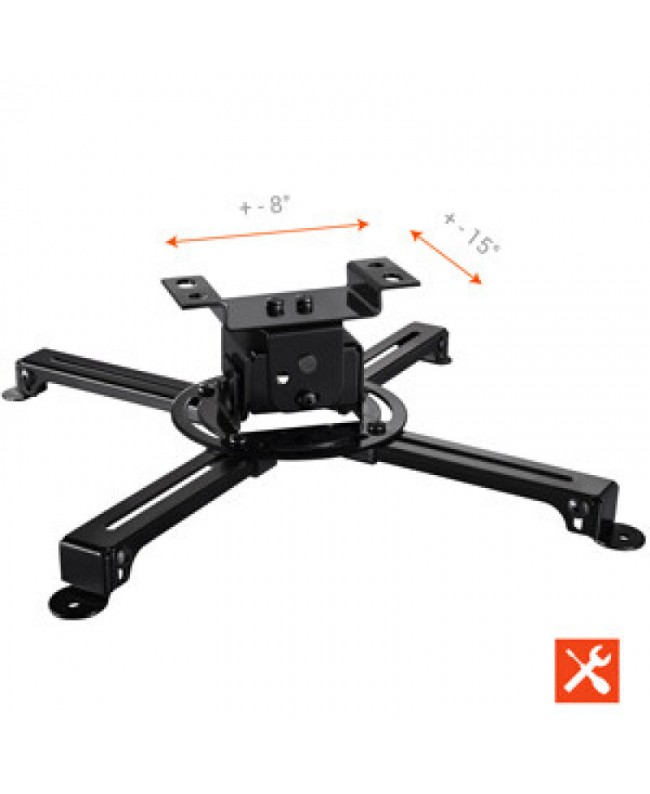

• Horizontal tilt +-8° / vertical tilt +-15°
• Fine tuning of tilt with Philips screwdriver
• Usable area: min 50 mm diameter; can be extended to max. 360 mm diameter
• Load up to 15 kg
• Base plate and arms detachable
• Misc screws supplied
• Material: steel and aluminium
• Color: white
