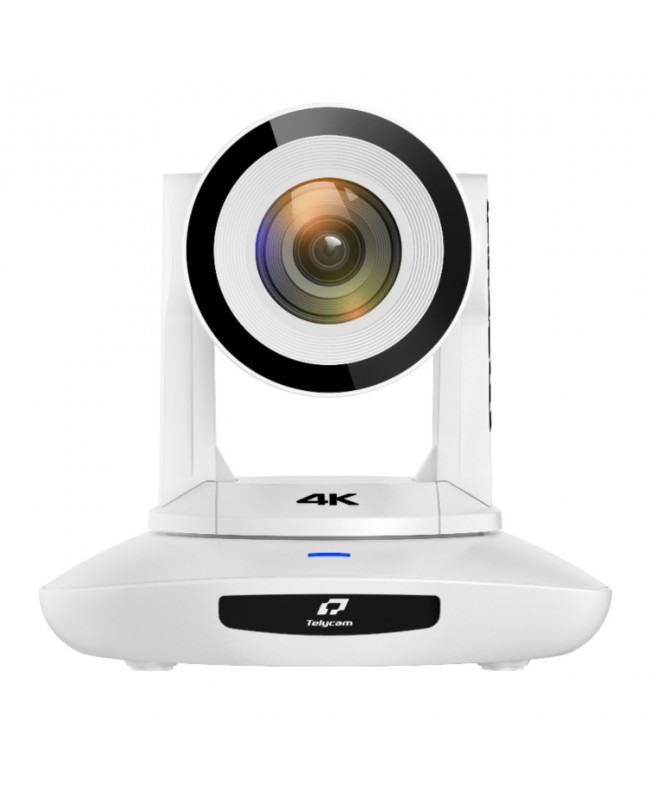

Telycam Drive+ 4KN 35X - USB - W PTZ Cameras
  • -28%

Telycam Drive+ 4KN 35X - USB - W

€2,316.00
€1,668.00 -28%
Tax included
Lowest price within the last 30 days: €1,668.00

PTZ camera for live streaming, NDI 4K, POE, 35x, 1/1.7”, 12 MP UHD CMOS - white

Out of Stock

Free shipping

Compare

wishlist

Telycam Drive+ 4KN 35X - USB - W



  • 4K UltraHD resolution
  • 35x optical zoom
  • Available NDI®|HX/3G-SDI/HDMI/USB3.0
  • Includes the latest NDI®|HX 5.5 SDK
  • RTMP/RTSP support
  • SRT support
  • Program and tally preview
  • Built-in professional audio line-in input.
  • Power over Ethernet

4K and HD resolution

Equipped with a state-of-the-art image processor, 1/1.7-inch sensor and 12 megapixels, the Drive+4KN 35X produces ultra-high-definition video resolution of 3840*2160 p30 to provide users with clear, sharp and realistic images even in dimly lit work environments.

35x optical zoom

The recording is done with a 4K lens with 35x optical zoom and a field of view of 60 degrees. A proprietary focusing algorithm enables fast and precise focusing when zooming or panning to capture every detail of the scene.

3G-SDI/HDMI/USB3.0 available

In addition to NDI ®|HX, 3G-SDI, HDMI and USB3.0 also output images simultaneously.

3G-SDI and HDMI are suitable for traditional video production workflow, and USB output can be used as a high-end webcam.

Smooth and quiet PTZ movement

Pan, tilt, and zoom in real time with motorized PTZ camera control and configurable preset positions.

Focus, white balance, exposure, and iris can be set automatically or manually.

128 presets are supported. Exposure parameters and white balance can be stored in the presets (in manual mode).

Includes the latest NDI®|HX SDK

NDI® from Newtek creates a plug-and-play environment for various live streaming products and platforms, enabling the production of extensive and diverse live content.

  • Sensor: 1/1.7-type UHD CMOS, 12 MP
  • Zoom: 35x optical zoom
  • Lens: f = 5.8 mm ~ 203 mm, F1.5 ~ F4.8
  • Horizontal viewing angle: 60° (wide) - 2.02° (tele)
  • Vertical viewing angle: 45.32° - 1.51°
  • Diagonal viewing angle: 70.0° - 2.51°
  • Minimum working distance: 1.5 m
  • Signal-to-noise ratio: =50dB

Video format:

  • HDMI: 3840*2160P30/25, 1920*1080P60/50/30/25/59,94/29,97/24, 1920*1080I60/50/59,94, 1280*720P60/50/30/25/ 5 9.94/29.97
  • NDI®|HX:3840*2160@15~30, 1920*1080@15~60, 1280*720@15~60, 1024*576@15~60, 640*360@15~30 (reduced bandwidth mode)
  • 3G-SDI:1920*1080P60/50/30/25/59,94/29,97/24, 1920*1080I60/50/59,94, 1280*720P60/50/30/25/59,94/29,97
  • USB 3.0: 1920*1080P60/50/30/25 (USB3.0), 1280*720P60/50/30 (USB3.0), 1280*720P25 (USB3.0 and USB2.0), 1024*576P30 (USB3.0 and USB2.0), 960*540P30 (USB2.0), 640*360P30 (USB2.0), 512*288P30 (USB2.0)

Image parameters

  • Noise reduction: 2D and 3D
  • Min. Lux: 0.5 Lux (50 IRE Max AGC, 1/30, F1.8)
  • White balance: Automatic/Manual/Auto Tracking/Push/Indoor/Outdoor/Color temperature
  • Exposure: Automatic/Manual/Shutter-priority/Aperture-priority/Brightness-priority
  • Flickerless: Off, 50 Hz, 60 Hz
  • Image Flip: Supported
  • Mirroring: Supported
  • Focus: Auto/Manual
  • Iris: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • Area: Supported
  • WDR/BLC: Supported

IP Streaming

  • Video Encoding: H.264/H.265
  • Bit rate control: Variable bit rate (VBR), constant bit rate (CBR)
  • Bit rate range: 1024 Kbps - 61440 Kbps
  • Network connection speed: 1000 Mbps
  • Protocol: NDI®|HX, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D

Pan/Tilt Movement

  • Preset: remote control: 10, serial interface: 128, accuracy: 0.1°
  • Pan angle: -170° - +170°
  • Tilt angle: -30° - +90°
  • Pan speed: 0.1° - 120°/s
  • Tilt speed: 0.1° - 80°/s

I/O interface

  • Control interface: RS232, RS485, NDI®|HX, USB3.0 (UVC1.5), USB2.0 (UVC1.1)
  • Video interface: NDI®|HX, HDMI, 3G-SDI, USB Type-C
  • Audio interface: 3.5mm dual input line
  • Counting: Support
  • POE+: Support
  • Daisy-chain: Support

General

  • Input voltage: DC12V, POE+(IEEE802.3at)
  • Power consumption: PoE+: IEEE802.3at (Pmax=10 W), DC: 12 V 2 A (Pmax=10 W)
  • Operating temperature: -10°C - 50°C
  • Operating humidity: 80% or less
  • Color: white
  • Dimensions (L × W × H): 220 mm × 190 mm × 205.8 mm
  • Net weight: 1.75 kg
